Shanghai Zhengmi Pneumatic Element Co., Ltd. >> Crystal Orange100% PU Recoil Air Tube with Quick Connectors (6.5*10mm)

Crystal Orange100% PU Recoil Air Tube with Quick Connectors (6.5*10mm)

Crystal Orange100% PU Recoil Air Tube with Quick Connectors (6.5*10mm)
Price: US $ 0.74/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Set
Pay Type: L/C,T/T,Paypal

Product Specifications


Prod Model: CL1065-6M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperatue: -40+80degree
Hardness: 90 Shore a, 95 Shore a, 98 Shore a
Certificate: RoHS/Reach
Size: 6.5*10mm;6m
Type: Pneumatic Pipe
Condition: New

Product Description

Product Description Of The TPU Hose

General:
1. 4*6mm black coil hose with male and female brass fittings, gasket
2.  Raw materials: pu 100% Grade 1 black color
3. Fittings-NH male and female brass connectors devoid of oily residue and free           from oxidation
4. Packaging-60 units in master carton(23feet)
5. All materials used for the production of the hose comply with reach regulations
6. working pressure:10bar(145 p.s.i)
7. Burst pressure:min 24bar(348 p.s.i.) at 20ºC
8. Resistance to UV exposure




Product Usage:
Industry robot,pneumatic tool,assemblt plant air pressure tool.

The duct with pressure.
Transport water and other liquid.
Being used as the vacuum sucker.
Metal and electronic products protection coat.
Ornament(for example handle and so on).

Specifications:

Material:Polyurethane
Fluid:air,water, oil
Operating Temperature: -40ºC+80ºC (For Non-Chemical GAS Space)
Tube O.D.:1mm to 19mm
Tube O.D:2.5mm to 21mm
Diameter Tolerances ±0.1mm~±0.15mm
Shore: hardness 65A---98A
Tensile Strength: 400kgf/cm² (5690 PSI)
Elongation at Break 490-590%
Abrasion 35mg
Tearing Strengh 1565 PSI(110kg/cm2)
Safety Factor--3:1



PU MATERIAL PROPERTY:
Manufactured 100% higher pure polyurethane raw materials, make products to guarantee with PU material characteristic of flexibility, non-toxic, harmless to the human body. Having excellent flexibility, high pressure resistance, resistance to wear and tear, resistant to twists and turns, a high elastic recovery memory effect, being 100% incineration ash, being approved by the environmental protection product.

INNER PACKING:
One type packing:wood reel, can roll
Another type packing:plastic reel,gift box.
OUTER PACKING:carton
LENGTH:100M/ROLL,200M/ROLL,300M/ROLL,500M/ROLL,1000M/ROLL.

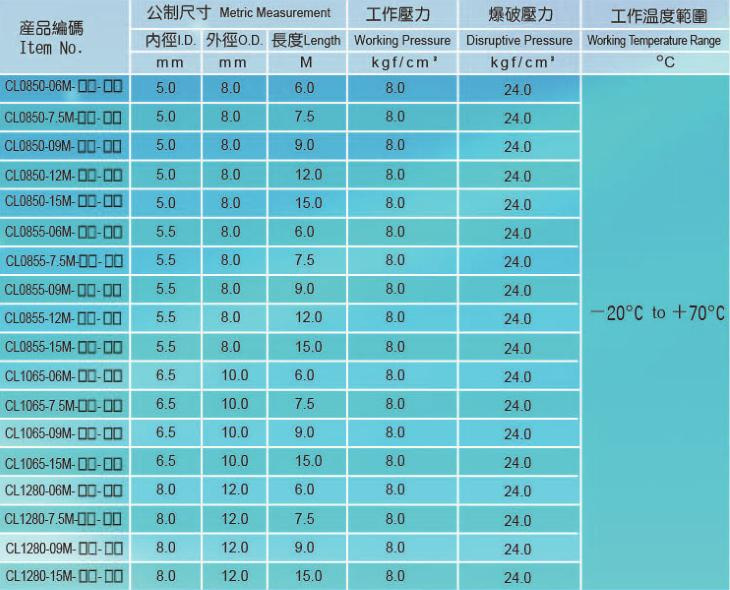

Pneumatic TPU Tube  Size :
note:the following size is just for you refer , unstandard size is custom-made .

Shanghai zhengmi pneumatic element limited company is a high- tech enterprise, we are specialized in developing, producing and marketing plastic tube. Our company produce and market PU tube, coiled tube, garden hose and component products. We already belonged standard existing plant about 3000 square meter, and some production lines of PU tube, PU coiled tube, PU braided pipe, H-hose. With advanced facilities and a high degree of automation, our monthly capacity is about 100 tons. Our products have exported to Europe and America, and all around the world. Our products appear on many kind of fields, from automobiles to machinery, medical care, toys, tools and so on.

From product design, material selection, color matching technology, production, packaging and storage and transportation of every link, we will be able to control. On raw materials, we used BASF, Bayer, , Atto, high tripod, Shimei, and other highquality raw materials; Strict quality management and environmental requirements, computer color matching chromatography analyzer, the computer raw materials oven ther-mostat, automated production and multichannel quality control measures to ensure that our products always maintain superior performance. We can supply you with many products, including PU series, gardening series and PU braided tube. The PU series is divided into Super--soft type ( Shore 60--85A), Air Compressor general type (Shore 95-98A), high-pressure-type ( Shore65D ), high-performance water resistance of type, fire-flame resistant type.

Customer satisfaction is our goal, from the pre-sale of products to the after-sale technical advisory services, our customer service system can achieve full services. To be honesty, being pragmatic, efficient, and innovation are our entrepreneurial spirit. Shanghai zhengmi is moving in modern and international forward; We are looking forward to cooperating with the worldwide friends to create peace and prosperity together!
