Product Specifications
| Prod Model: |
OBP061 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

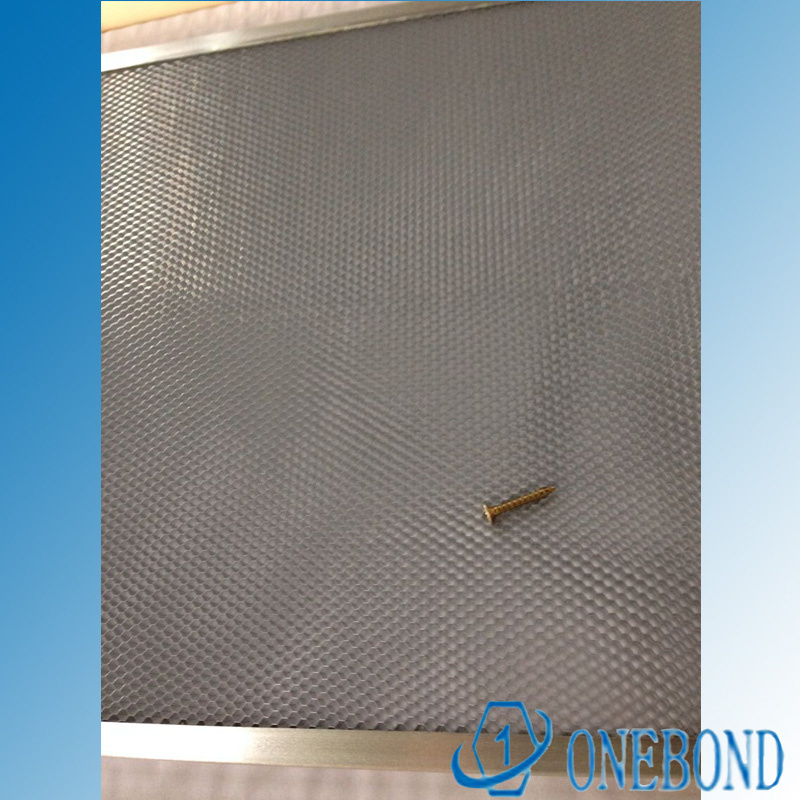

ONEBOND Aluminium Honeycomb Core- Commercial 3003 Grade
- Aerospace 5052 Grade
- Perforated or Non Perforated
- Lightweight & Strong
- Lightweight - from 16Kg/M3
- High compression & shear strength
- Cell Size (inches): 1/30", 1/25", 1/20", 1/18", 1/16", 1/15", 1/10",1/8", 1/6", 1/5", ¼",1/3", 3/8", ½", ¾", 1":
- Sheet Thickness: 4mm to 300mm
- Max Sheet Sizes: 1600mm (L) x 15000mm (W)
- Supplied in: Blocks, unexpanded slices or expanded sheets
ONEBOND honeycomb, honeycomb core, aluminum honeycomb core, for lighting, Aircraft panel, Marine and railcar panels, building structural panel, Working table of Industrial equipment, Skis and snow boards, Flow straightness for air or fluids, Heat exchanging, electronic shielding enclosures, Light collimation, lightweight Marine panels, architectural panels, truck panels, train panels, honeycomb energy absorbers, laminar air flow units, RFI/EMC shielded vents, sacrificial laser beds and tables, honeycomb composite panels.
ONEBOND Honeycomb Applications ONEBOND honeycombs have widely accepted in various industrial circles.
Some of the most widespread applications for Aluminum Honeycomb are as follows:
In rail industry:
Doors
Floors
Energy Absorbers/Bumpers
In marine industry:
Commercial vessels and naval vessel bulkheads
Wall ceiling and partition panels
Other applications:
Clean room panels
Exterior architectural curtain wall panels
Air, water, fluid, and light directionalisation
Heating, ventilation, air conditioning equipment and devices
Skis and snowboards
Energy absorption protective structures
Electric shielding enclosures
EMI honeycomb shielding Vents
Acoustic attenuation

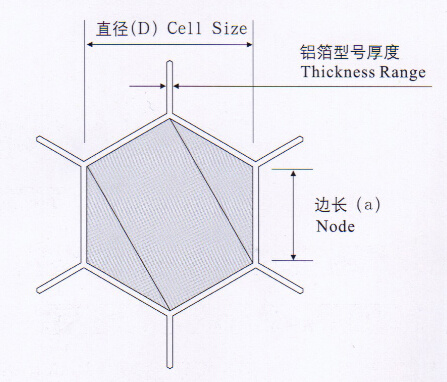

Node
(mm) | Cell size
(inch) | Foil thickness
(mm) | Max Size
(WxL)(mm) |
| 0.6 | 1/25 | 0.02 | 300x500 |
| 1.0 | 1/16 | 0.03 /0.04 | 1000x1000 |
| 1.5 | 1/10 | 0.03 /0.04 | 1200x1500 |
| 1.83 | 1/8 | 0.04 | 1600x2000 |
| 0.06 | 1600x1600 |
| 2 | 1/8 | 0.04 | 1600x2000 |
| 0.06 | 1600x1600 |
| 2.5 | 1/6
(4.2mm) | 0.04 | 1600x2200 |
| 0.06 | 1600x2000 |
| 3.0 | 1/5
(5mm) | 0.04 | 1600x2400 |
| 0.06 | 1600x2200 |
| 0.08 | 1600x2000 |
| 0.10 | 1600x1800 |
| 4.0 | 1/4
(6.35mm) | 0.04 | 1600x3100 |
| 0.06 | 1600x2400 |
| 0.08 | 1600x2200 |
| 0.10 | 1600x2000 |
| 5.0 | 1/3
(8.5mm) | 0.04 | 1600x4000 |
| 0.06 | 1600x3000 |
| 0.08 | 1600x2200 |
| 0.10 | 1600x2000 |
| 6.0 | 3/8
(9.5mm) | 0.04 | 1600x4600 |
| 0.06 | 1600x3200 |
| 0.08 | 1600x2800 |
| 0.10 | 1600x2400 |
| 7.5 | 1/2
(12.7mm) | 0.04 | 1600x6000 |
| 0.06 | 1600x4000 |
| 10 | 3/4
(19mm) | 0.04 | 1600x7500 |
| 0.06 | 1600x5000 |
| 12 | 4/5
(20.3mm) | 0.04 | 1600x9000 |
| 0.06 | 1600x6000 |
| 15 | 1
(25.4mm) | 0.04 | 1600x12000 |
| 0.06 | 1600x7500 |
| 20 | 1+3/8 | 0.04 | 1600x15000 |
| 0.06 | 1600x100000 |
| 30 | 2 | 0.04 | 1600x20000 |
| 0.06 | 1600x15000 |
