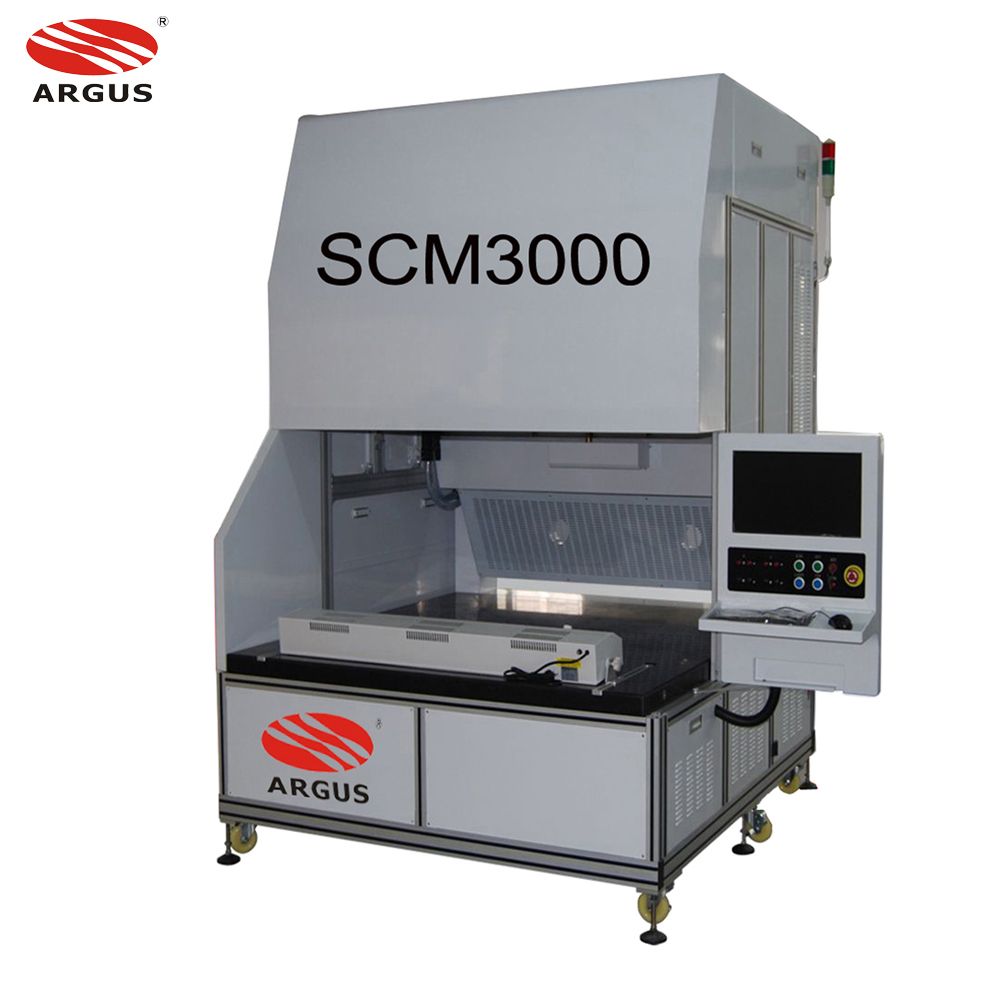

Crystal Inside Marking Machine 1500X1500mm
| Price: |
US $ 35000-40000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
SCM3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Marking Area: |
1500X1500mm |
| Laser Power: |
250W/350W |
| Laser Source: |
Coherent CO2 Metal RF Laser Tube |
| Marking Speed: |
≤10000mm/S |
| Power Consumption: |
≤ 7 Kwh |
| Worktable: |
Marble Worktable |
| Laser Frequency: |
20kHz~200kHz |
| Scanner: |
CTI America |
| Repetition Precision: |
0.01mm |
| Min.Letter Size: |
0.3mm |
Product Description

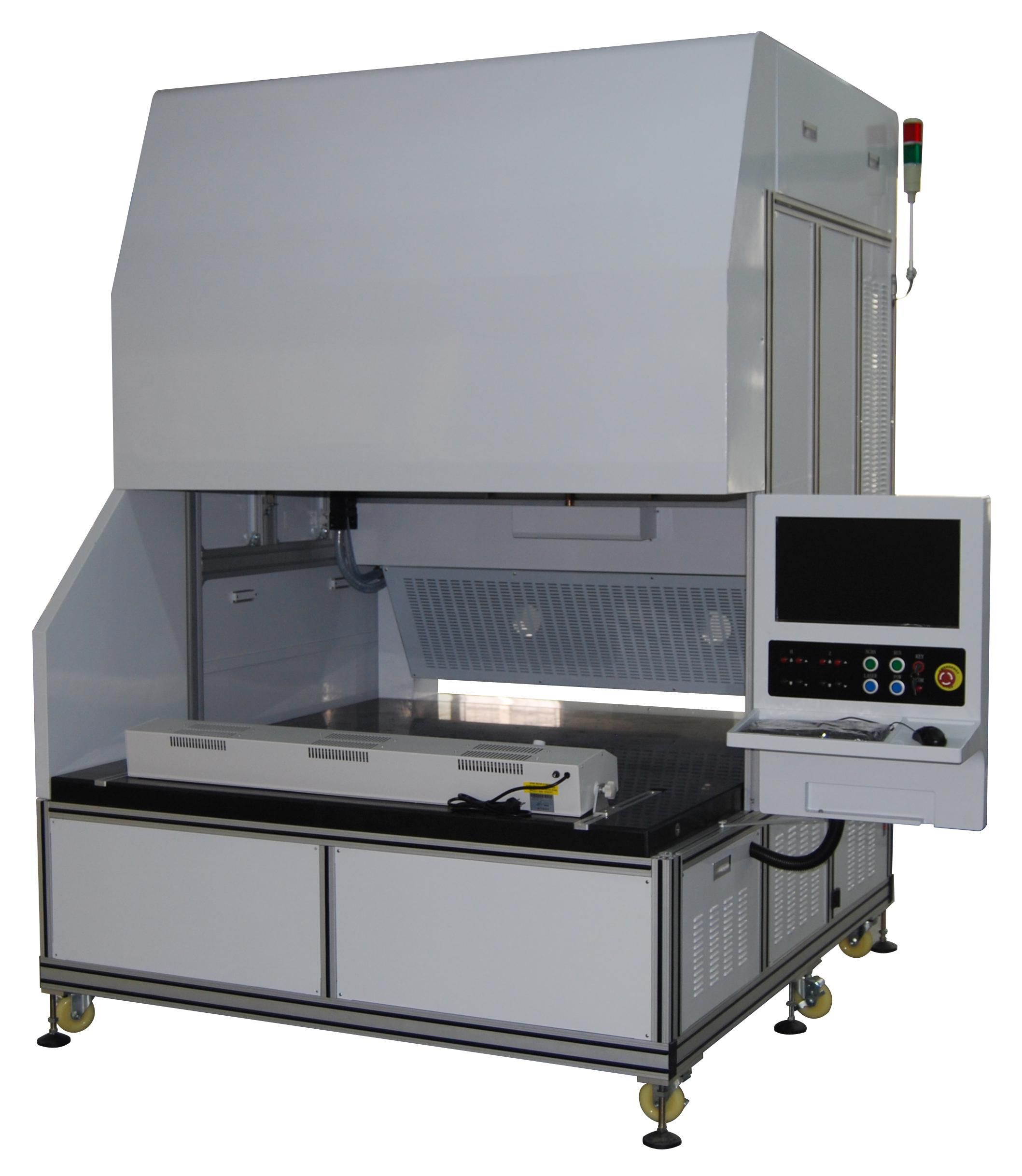

Machine Structure CO2 Dynamic Laser Marking Machine adopts imported laser tube and high speed galvo scanner, Sunic Laser self-developed linear 3D Dynamic Focusing System, device control system, self-developed Control software and the high precision thermostatic water cooling system. The host machine is as follow:
Technical Parameters| Model | SCM3000 |
| Max.Marking Area | 1500x1500mm |
| Laser power | 250W | 350W |
| Laser Source | Coherent CO2 metal RF Laser Tube |
| Marking Speed | ≤9000mm/s | ≤10000mm/s |
| Power Consumption | ≤ 7 kWh |
| Worktable | Marble Worktable |
| Laser Wavelength | 10.64μm |
| Laser Frequency | 20kHz~200kHz |
| Scanner | CTI America |
| Repetition Precision | 0.01mm |
| Min.Letter Size | 0.3mm |
| System Support | WIN 7 |
| Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc |
| File Formats | PLT, DXP, BMP, JPG, AI etc |
| Software Character | Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting |
| Power Supply | 380V/50Hz~60Hz |
| Cooling Way | Circulation of Water Cooling |
LGP Laser Dotting Machine Standard Configuration| No. | Item | QTY | Origin |
| 1 | CO2 Metal RF Laser Tube | 1 | Imported from the USA |
| 2 | Galvo Scanner | 1 | Imported from the USA |
| 3 | 3D Dynamic Focusing System | 1 | Imported from the USA |
| 4 | Optical Lens | 1 | Imported from the USA |
| 5 | Exhausting System | 1 | Sunic Laser |
| 6 | IPC | 1 | High type |
| 7 | 19LCD | 1 | AOC |
| 8 | Control Software&motion card | 1 | Sunic Laser |
| 9 | Machine Structure | 1 | Sunic Laser |
| 10 | Industrial thermostatic circulation of water cooling system | 1 | Doluyo |

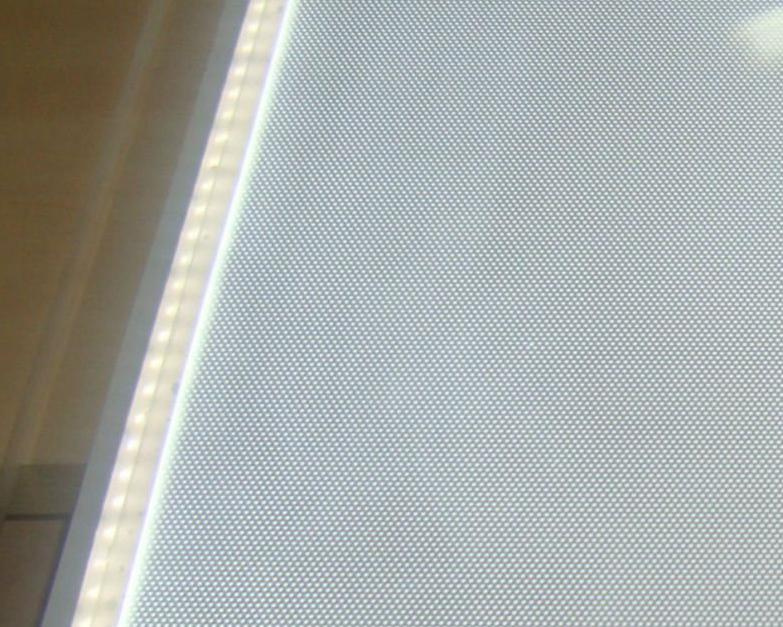

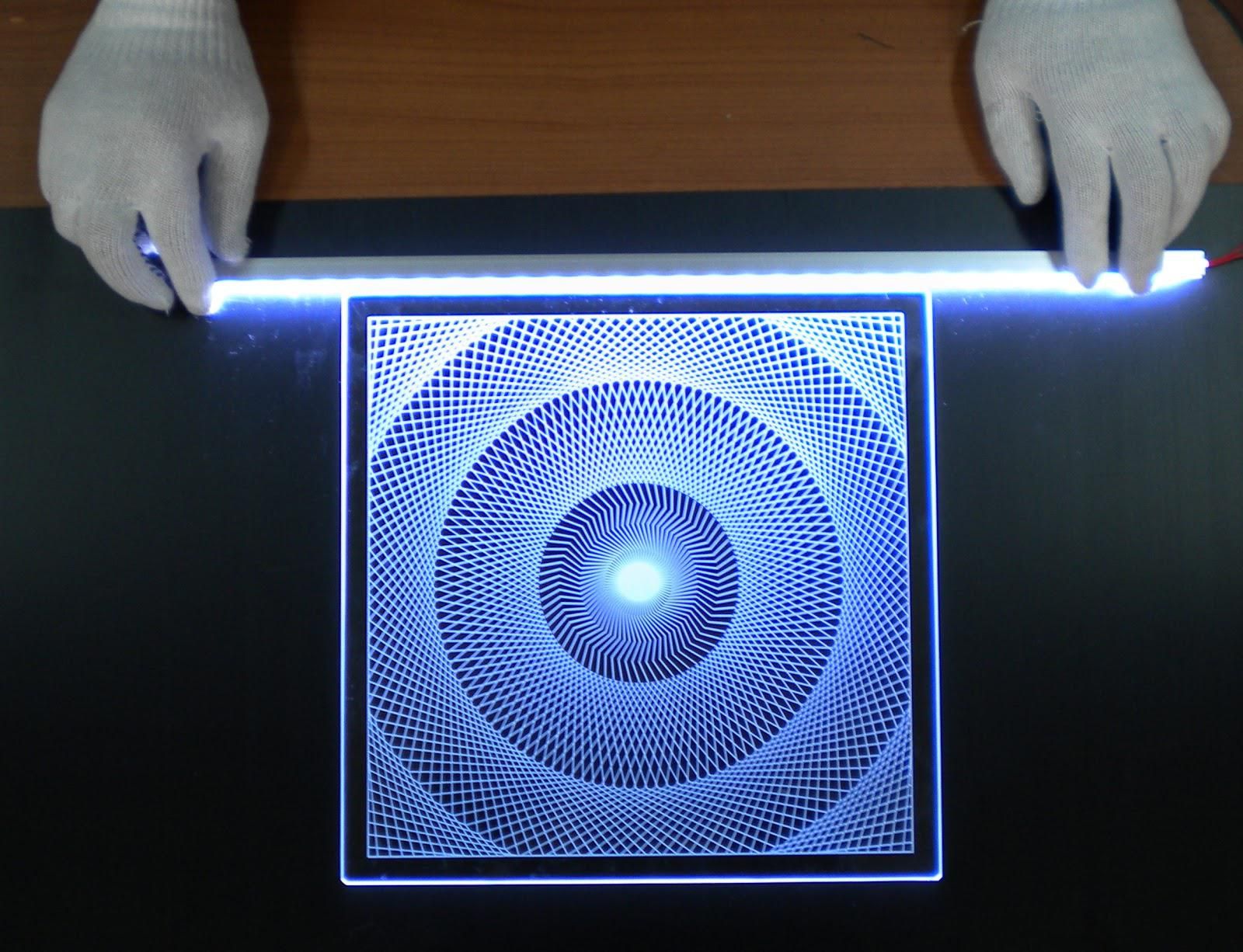

Samples
