Product Specifications
| Prod Model: |
HSGP-4.5KB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Focus Diameter: |
0.02mm |
| Laser Frequency: |
4000Hz |
| Max Engraving Speed: |
270, 000dots/Min |
| Max Engraving Scope: |
300*400*150mm |
| Laser Head: |
Single |
| Focal Length: |
160mm |
| Laser Power: |
3W |
| Pulse Width: |
7ns |
| Cooling: |
Air Cooling |
| Resolution: |
800dpi |
Product Description

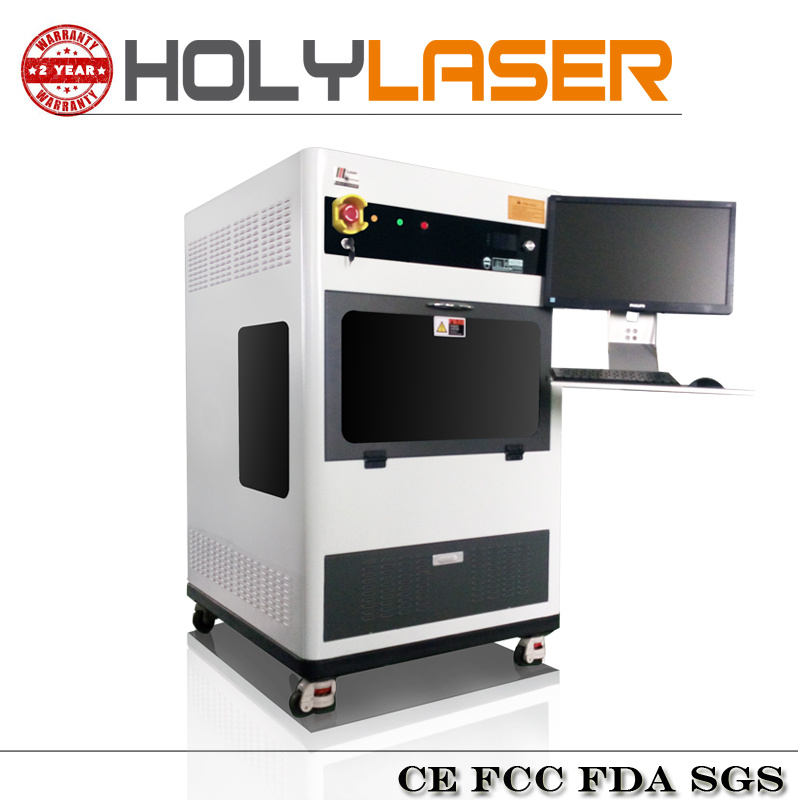

3D laser crystal photo HSGP-4KB:
This 3D crystal laser engraving machine with high resolution, with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, photo pringting shop, wedding photography, souvenirs, personalized gifts shops, etc.
Good engrave quality, high solution. The pattern of engraving is exquisite, crystal-clear and strong tri-dimensional sense.
Perfect Laser High-Speed Scan Laser Engraving machine primary use the 3D camera to take the three dimensional portraits on the human body, and then through the laser inner carving technology make beam dots inside crystal, many dots to form a three-dimensional images.
This type of machine use the imported air cooling laser system, so it not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.
Use the imported air cooling laser system, stable, easy maintenance
Non-touch style laser process ensures that the surface of the crystalline lens keeps its nice appearance
Working process for 3D laser crystal photo HSGP-4KB
HSGP-4KB 3D laser crystal engraving machine with max. Marking scope: 300x400x150mm, means you can engraving one PC bigger size crystal as big as 300x400x150mm, or you can engraving so many small size crystal in one time togerther.
Marking speed is: 220, 000dots/min., for one PC 50x50x80mm, need only less than 2 mints.
70% of our customer in crystal town in China used our this 3D crystal laser engraving machine HSGP-4KB for quantity, big order production.
Added function:
We can install the laser for engraving all kinds of metal, like gold. Silver, iron, copper, zinc, stainless steel and so on.
For wedding ring, bracelet, jewelry, component of machine, clocks and watches, glass industry, etc. Very well.
Applicable materials:
Crystal, acrylic, glass, hard plastic, metal, and other transparent materials and so on.
style | 3d scenery photo |
laser | semiconductor diode |
laser wavelength | 532nm |
laser repetition frequency | 400Hz |
marking speed | 20, 000 points/min |
marking scope | 300*400*150mm |
focus diameter/ resolution | 0.02mm/ 800dpi |
| working |
with high speed scanner+X+Y+Z (5 axis) |
positioning accuracy | 10um |
cintinuous working time | 24 hous |
quality warranty | one year |
lifetime | > 20000 hours |
power requirement | 220V or 110V(+/-10%), 50hz or 60hz |
| software | software for 3D, 2D dots cloud, and for
control machine |
file format | JPG, BMP, DWG, DXF, etc. |
| working environment |
temperature 10-28° C, humidity less than 70%,
non-condensed |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
