| Price: | US $ 3.6-8.5/Square Meter |
|---|---|
| Min Order: | 1000/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | POLI-08 |
|---|---|
| Service Temperature(C): | -40c -- +120c |
| Light Transmission: | Maximum 86% |
| UV Protection Layer: | 50um |
| Flame Retardancy: | Flame Retardancy Class B1 |
| Raw Material: | Virgin Bayer/Sabic PC Material |
| Quality: | Grade a |
| Thickness: | 4mm-16mm |
| Standard Size: | 2100mm(Width) X 5800 mm(Length) |
| Delivery Time: | 7-15days for 1*40FCL |
| Certification: | Certificate by ISO9001:2008, SGS |
| Material: | PC |
About US:
1.Zhejiang Aoci Decoration Materials Co., Ltd locate in Binhai Industrial Zone, Jiaojiang, Taizhou, Zhejiang, China, specializes in manufacturing Multiwall Polycarbonate Sheet for over 15 years, we are exporter in this field for many years.

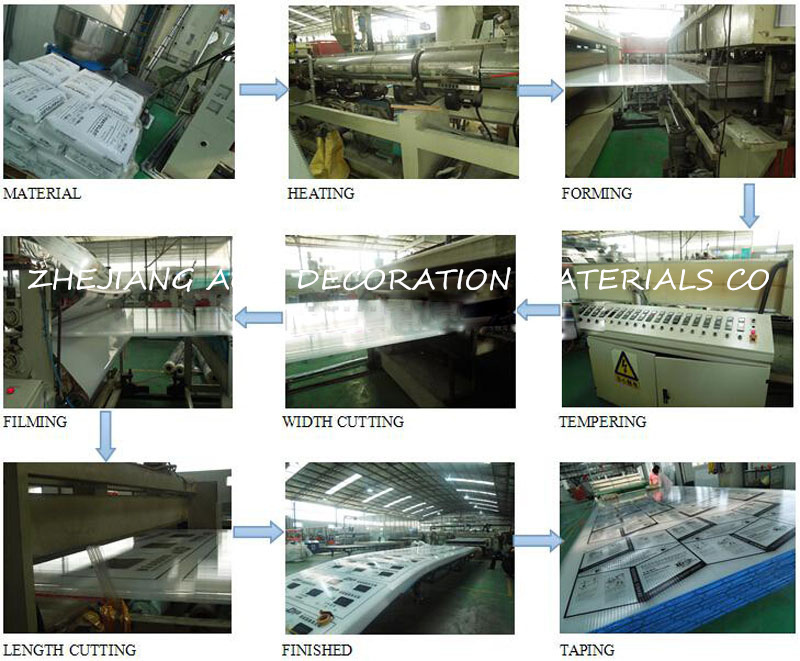

2.Using safe, environmentally friendly polycarbonate virgin material and advanced technology to produce various types of PC sheet.
Advantages:
1. Specialize in manufacturing PC sheets for over 15 years
2. 7 Imported Advanced Production Lines
3. Bayer/SABIC virgin material
4. 14,000 tons annual output
5. Verified by ISO9001:2015 & CE
6. Competitive price and good quality
7. UV Protection(Anti-fog is available)
8. OEM acceptable
Trade Terms:
1.Price term: EXW/FOB/C&F/CIF
2.Port: Ningbo or (Shanghai)
3.Payment: by T/T
1)100% payment if the total amount is less than USD10,000;
2)30% deposit and 70% before shipment or balance 70% against the copy of B/L, if the total amount is more than USD10,000.
4.Delivery time:7-15 working days, subject to the order quantity.
5.MOQ:500 square meters or 1*20GP.
Brief Introduction:

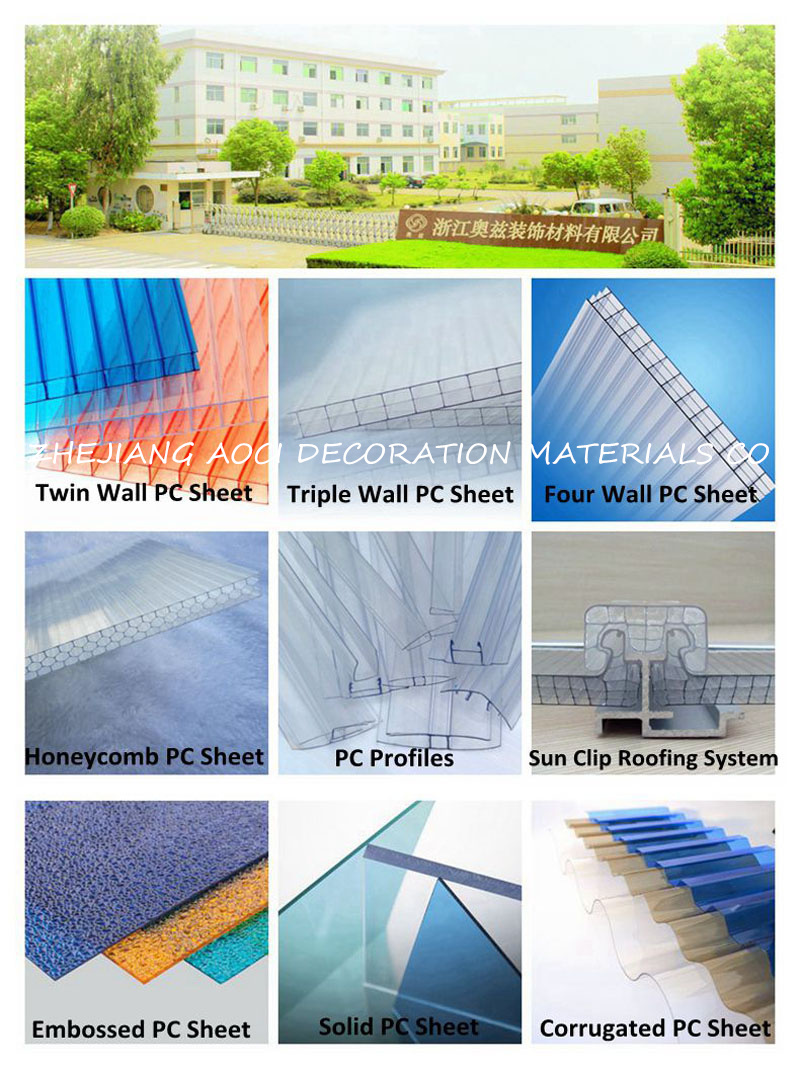

A. Product Range

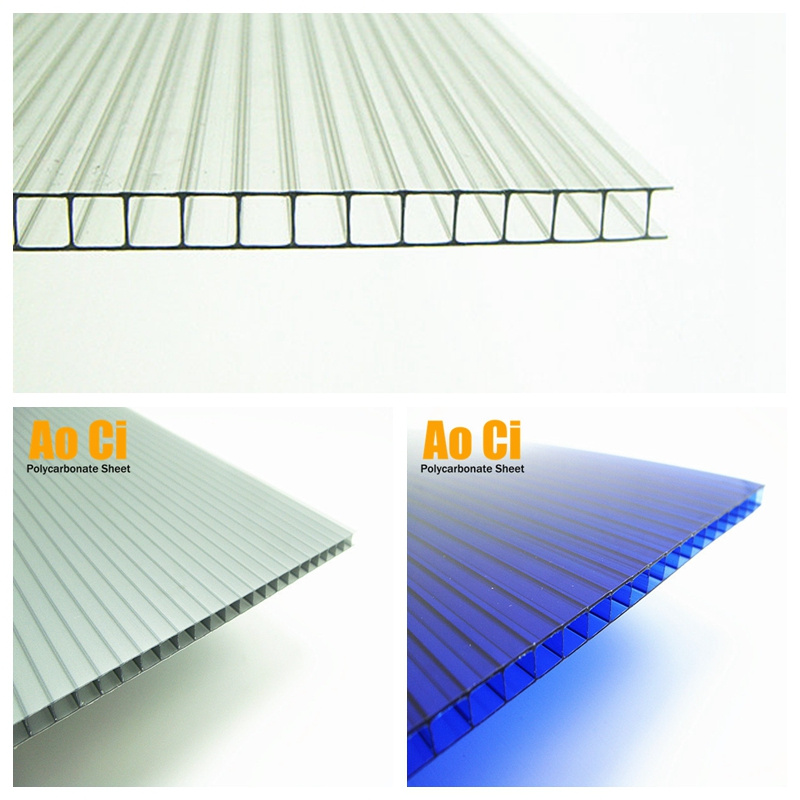

1). Twin-walls polycarbonate sheet thickness: 4, 5, 6, 8, 10mm. Width: 2100mm and with 1220mm.
2). Triple-walls polycarbonate sheet thickness: 8, 10, 12, 16mm. Width: 2100mm.
3). Four-walls polycarbonate sheet thickness: 6, 8, 10, 12, 16, 18mm. Width: 2100mm.
4). Honeycomb polycarbonate sheet thickness: 8, 10, 12mm. Width: 2100mm.
5). Polycarbonate roofing system[Four Layer Rectangule & Honeycomb Structure] thickness: 8, 10, 12mm. Width: 600mm.
6). Solid polycarbonate sheet [Compact] thickness: 1-10mm.
Width: 1220, 1560, 1820, 2100mm, Usually 1220x2440mm, 2050mmx3000mm
7). Solid Emboessed (Diamond) polycarbonate sheet thickness: 1.8-6mm.
Width: 1220, 1560, 1820, 2100mm, Usually 1220x2440mm, 2000mmx3000mm
8). Corrugated polycarbonate sheet [Roma & Greca & Trimdek & Minwave] thickness: 0.8-2.5mm. Width is different.
B. Length: No limit(Recommend 5800, 6000, 11800, 12000mm to suit 20' container & 40' container)

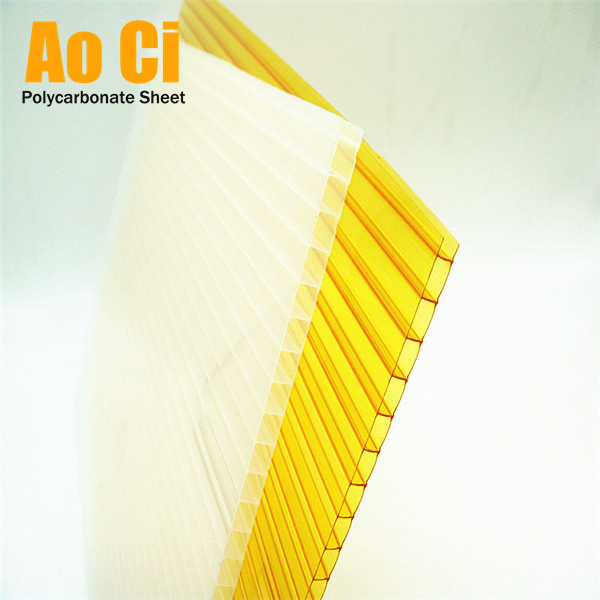

C. Color: clear/transparent, lake blue, green, blue, opal, white, brown/bronze, silvery gray, red, yellow, etc.
Standard Products and Dimensions
Product | Structure | Thickness | Weight | Width | Length | Color | |
(mm) | (in.) | (g/m2) | (mm) | (mm) |
| ||
Twin Wall | 2-R | 4 | 5/32 | 900 | 2100 | 5800 | Clear |
5 | 3/16 | 1100 | 6000 | Bronze | |||
6 | 1/4 | 1300 | 11800 | Opal | |||
8 | 5/16 | 1500 | 12000 | Blue | |||
10 | 3/8 | 1700 |
| Green | |||
Tolerances: Thickness±5%, Length±3mm, Width±3mm
Technical Features
U.V.rays protection | 50 micron | Test Method |
Temperature range | -40ºC~120ºC |
|
Insulating values | 3.1~3.8W/m² K | GB/T 8484-1987 |
Sound insulation | 14~19dB | GB/T 8485-1987 |
Linear thermal expansion | 0.067mm/mºC | GBT8484-2002 |
Flame retardant | Bs1¸d0¸t0 | GBT8624-2006 |
ENERGY SAVING
Standardized procedures are used in the building and construction industry to determine the relative energy efficiency of most building products. Insulating values are typically stated in terms of U-value or R-value
in the U.S.A., and K value (the metric equivalent) everywhere else in the world. Where U-factor is concerned,
a lower number indicates better energy efficiency.
Insulating Values
| Product | Structure | Thickness | U-Value | Test Method | |
| (mm) | (in.) | (W/m² K) | |||
| Twin Wall | 2-R | 4 | 5/32 | 3.8 | |
| 5 | 3/16 | 3.6 | |||
| 6 | 1/4 | 3.5 | GB/T 8484-1987 | ||
| 8 | 5/16 | 3.3 | |||
| 10 | 3/8 | 3.1 | |||
LIGHTWEIGHT
1/6 the weight of glass and 1/3 the weight of acrylic.As the sheet weight is very low, support structures need not be as heavy as in the case of traditional materials.This in turn offers savings in
structure and installation costs.
LIGHT TRANSMISSION
Light transmission levels in excess of 80% can be achieved with clear and will be maintained throughout the life of the sheet.
Colors and Light Transmissions
| Structure | Standard Colors | Test Method | ||||
| Clear | Bronze | Opal | Blue | Green | ||
| Twin Wall 4mm | 80% | 42% | 40% | 35% | 54% | |
| Twin Wall 5mm | 80% | 38% | 37% | 29% | 52% | |
| Twin Wall 6mm | 80% | 36% | 30% | 25% | 48% | GB2410-1980 |
| Twin Wall 8mm | 78% | 30% | 26% | 16% | 44% | |
| Twin Wall 10mm | 77% | 26% | 22% | 15% | 42% | |
Flexible and easy to install

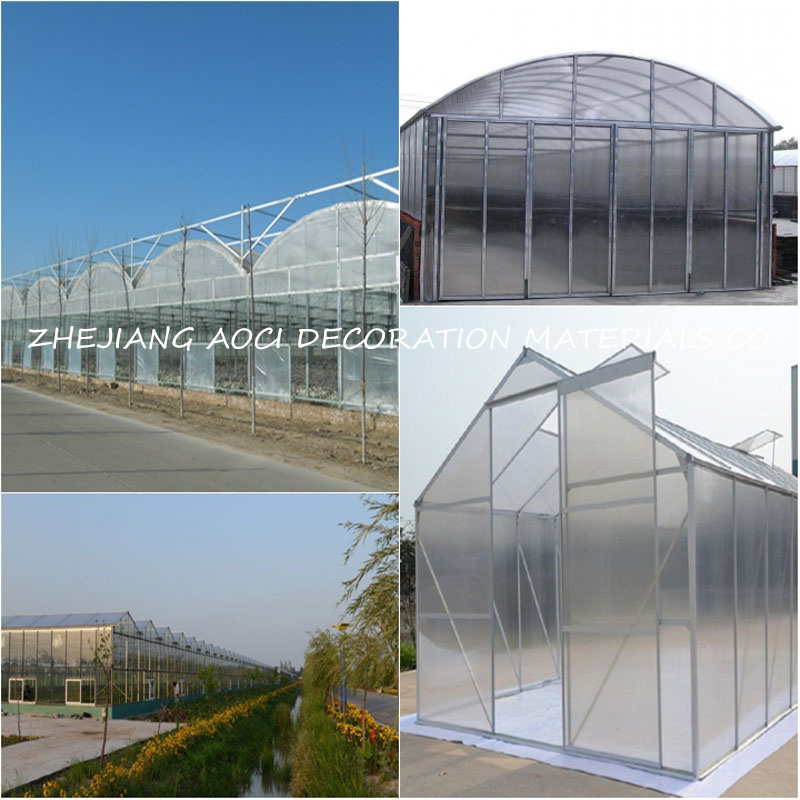

Bends easily into arches. POLIBAY sheets may be cold bent or curved up to their minimum permitted radius,
using polycarbonate's natural tolerance for cold forming with no need for thermal processing. Curving POLIBAY sheet beyond this minimum permitted radius induces undue stresses and strains in the glazing
sheet, causing premature failure and will void the warranty.
Arching Radius
Structure | Thickness | Minimal Cold Bending Radius | |||
(mm) | (in.) | (mm) | (feet) | (inch) | |
2-R | 4 | 5/32 | 700 | 2.30 | 28 |
2-R | 5 | 3/16 | 875 | 2.80 | 34 |
2-R | 6 | 1/4 | 1050 | 3.40 | 41 |
2-R | 8 | 5/16 | 1400 | 4.60 | 55 |
2-R | 10 | 3/8 | 1750 | 5.70 | 69 |
FIRE RESISTANCE
The fire performance of POLIBAY has been independently tested and certified up to Class B1
surface spread of flame when tested to GBT8624-2006, That is, at very high temperatures,
the material would melt but flames would not spread.
10 YEAR WARRANTY
Refer to the POLIBAY warranty document for full details of the 10 year warranty.

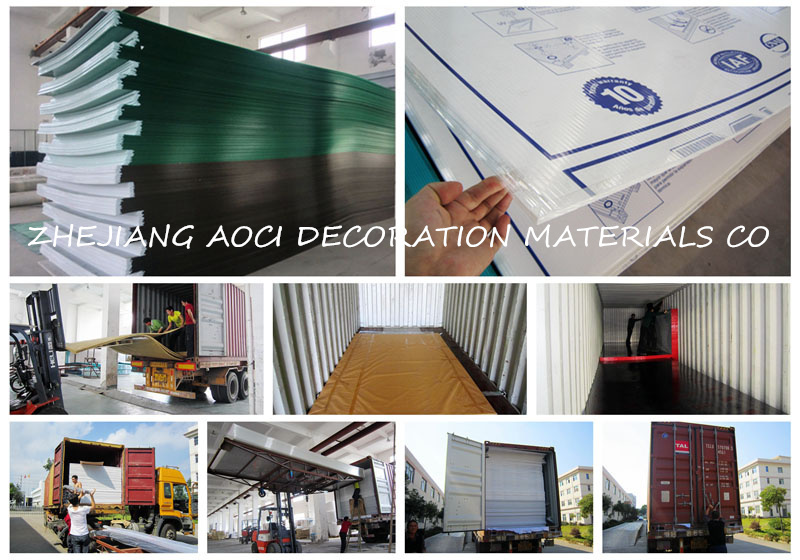

Packaging & Shipping| Packaging | Both sides with PE film, the end with adhesive tape, POLIBAY logo on the PE film.Other package are available based on customer's requirment. | |||
| Delivery | within 7-10 working days once we received the deposit. | |||
| Payment | T/T; 30% deposits, 70% balance before delivery. | |||
| Capacity for 20'container | 2.1m*5.8m*4mm | 564sheet | ||
| 2.1m*5.8m*6mm | 376sheet | |||
| 2.1m*5.8m*8mm | 282sheet | |||
| 2.1m*5.8m*10mm | 225sheet | |||
| Capacity for 40'container | 2.1m*5.8m*4mm | 1270sheet | 2.1m*11.8m*4mm | 635sheet |
| 2.1m*5.8m*6mm | 846sheet | 2.1m*11.8m*6mm | 423sheet | |
| 2.1m*5.8m*8mm | 634sheet | 2.1m*11.8m*8mm | 317sheet | |
| 2.1m*5.8m*10mm | 508sheet | 2.1m*11.8m*10mm | 254sheet | |
Free samples are available. Click "Send " Now !
