Product Specifications
| Prod Model: |
PR-PMMA-1 |
| ESD Index: |
10^6~10^9 |
| Color: |
Transparent |
| Thickness: |
2-15mm |
| Size: |
1220*2440mm,1000*2000mm |
| Density: |
1.2g/cm3 |
| Fob Port: |
Shenzhen |
| Sample Availability: |
Yes |
| Small Order: |
Accepted |
| Material: |
Acrylic |
Product Description

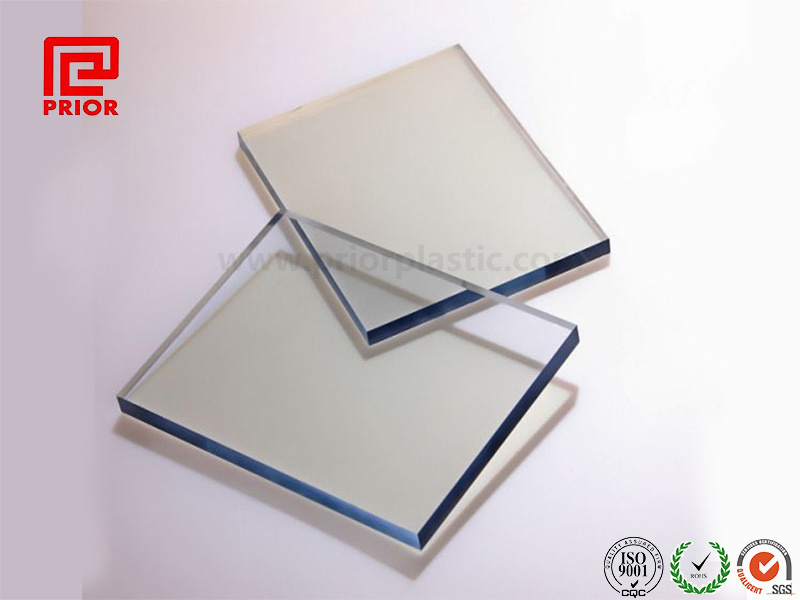

Crystal Clear Antistatic Acrylic PMMA Sheet
| Thickness | Size |
| 2~15mm | 1220x2440mm |
ESD PMMA sheet surface resistivity:10^6-10^9
ESD PMMA sheet color :transparent
Description
This clear acrylic sheets are surface coated with an extremely thin and highly abrasion resistant dissipative film which keeps the transparency and the working properties of acrylic sheets unvaried. Equipped with a protection film on both sides can avoid damages during transportation and storage.
Advantages
1. Perfect transparency and the light transmittance with 93%;
2. Excellent electrical insulation;
3. High plasticity, Processing and shaping easier;
4. Water-proof, anti-UV;
5. Strong surface hardness and good weather resisting property;
Applications
1. Dust-free room and clean room spacer, observation window shield;
2. Fixture and clamp for electronic tests;
3.Lampbox ,sign-board ,indicator, showing shelf ;
4.Bath room, art work, cosmetics, bracket;
5. Daylight lamp, ceiling lamp, lampshade;
Technical data sheet
| PROPERTIES | Test Method | Unit | Value |
| I.Physical Properties |
| Density | ISO 1183 | g/cm3 | 1.18 |
| Water absorption 24hrs | ISO 62 | % | < 0.3 |
| II.Thermal Properties |
| Heat deflection temperature - HDT/A | ISO 75-2 | ºC | 98 |
| Max. service temperature - Short term | | ºC | 93 |
| Max. service temperature - Long term | | ºC | - |
| Thermal conductivity at 20 ºC | DIN 11359 | W/(K*m) | 0.18 |
| Transmittance at 3mm wall thickness | DIN 5036 | % | 93 |
| Coefficient of linear thermal expansion | ISO 11359 | 10-4*K-1 | 0.6 |
| III.Mechanical Properties at 23ºC |
| Tensile strength at yield | ISO 527-2 | MPa | 72 |
| Tensile strength at break | ISO 527-2 | Mpa | - |
| Elongation at break | ISO 527-2 | % | ≥2 |
| Modulus of elasticity | ISO 527-2 | MPa | 3200 |
| Hardness-Rockwell | ISO 2039-2 | | - |
| Hardness - Shore D | DIN 53505 | | 88 |
| Notch impact strength | ISO 179 | kJ/m2 | 1.6 |
| Friction coefficient | DIN 53375 | | 0.5 |
| IV.Electrical Properties |
| Dielectric constant at 1 MHz | IEC 60250 | 106Hz | 3.00 |
| Dielectric loss factor at 1 MHz | IEC 60250 | 106Hz | 0.02 |
| Surface resistivity | IEC 60093 | Ohm (Ω) | 10^6-10^9 |
| Dielectric strength | VDE 0303 | kV/mm | 20-40 |
| NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m |
