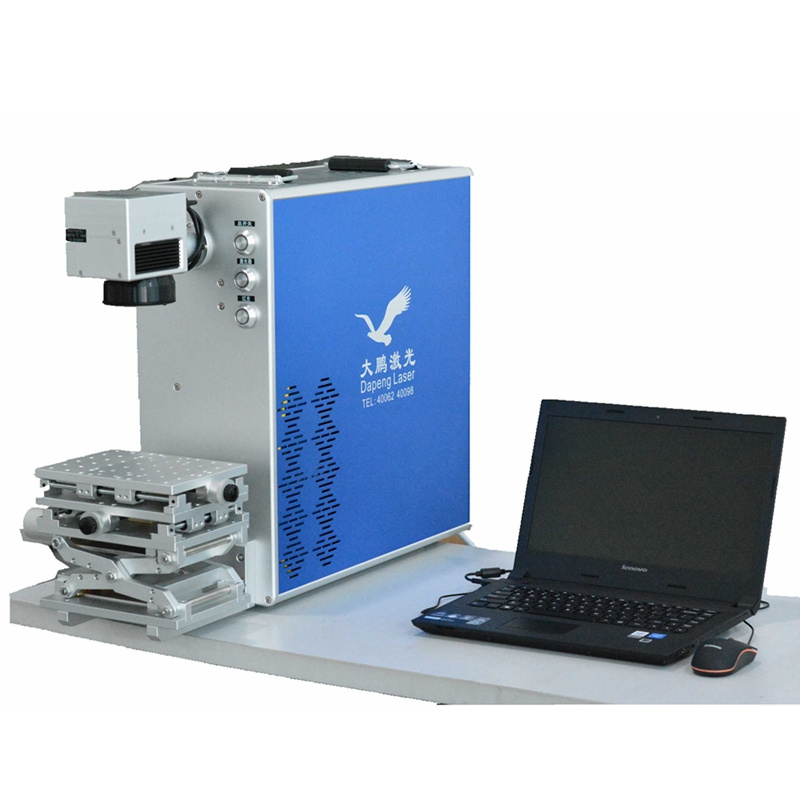

Crystal Case Laser Engraving Small Laser Machines
| Price: |
US $ 5000-5200/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
YLP-20-D125 |
| Engraving Machine Type: |
Laser Engraving Machine |
| Certification: |
SGS, Ce |
| Laser Type: |
Fiber Laser |
| Control: |
Automatic |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Metel, Plastic |
| Power: |
10watt, 20watt, 30watt |
| Drive Type: |
Fiber Laser |
Product Description
Crystal case Laser Engraving small laser machines | Model | YLP-F10/20/30/50 |
| Laser Power: | 10W,20W,30W,50W |
| Wavelenth: | 1064nm |
| Standard Marking Area: | 100mm*100mm |
| Optional Marking Area: | 160mm*160mm,200mm*200mm,300mm*300mm |
| Marking Speed: | ≤7000mm/s |
| Minimum Line Width | 0.02mm |
| Minimum letter | English: 0.2 x 0.2mm |
| Marking Depth | 0 ~0.5mm |
| Location precision | ≤0.01mm |
| Resetting positioning accuracy | 0.002 |
| Beam Quality | M2:1.2~1.8 |
| Electrical Requirements: | Ac220V±10%.50HZ.5Amp |
| Cooling mode | Air cooled |
| Scan Head | High Precision Digital Scan Head |
| Unit Power | <0.5kw |
| Operational Temp Range | 10-40C |
| Operational Humidity Range | 5%-75%, Non-condensing |
| Warranty: | 2 years on laser source |
| Dimensions: | 25*60*80mm |
| Net Weight | 38KG |
Features:| Easy to Use Automation Features | Sharp, High Contrast, Impact Free | High Speed Galvo Steering |
| Compact & Fast Set-Up | 100,000 Hrs Laser Lifetime | 2 Year Warranty |
| Turnkey System | Permanant Marking | Air Cooled/No Chiller needed |
| Tunable Pulse Rate | No routine maintenance/No Consumable | Digital I/O for Easy Operation |
| Red Aiming Pointer/No more mistakes | Solid Aluminum Top Work Surface & Swing Arm Laptop Stand | Portable Tabletop Units to Automated Production Systems Available |
Software:| True Type Fonts | Single Stroke Fonts | Elliptical Text |
| Sequential Serial Numbers | Customizable Auto Dating | Barcodes |
| QR Codes and Data Matrix | UID Wizard | Logos |
| Photo Quality Images - JPG, TIF, GIF | Corel Draw, Adobe Illustrator | Raster Graphics |
| Vector Graphics | CAD Files | |
We also provides laser sources and spare parts to the laser machine manufacturers.
Materials:| Stainless Steel | Steel | Aluminum, Carbide |
| Nickel | Titanium | Cast Iron |
| Chrome | Painted Metal Alloys | Multi-Coated Metals |
| Plastics/Rubber | Backlit Buttons | Polycarbonate |
| PVC | Composites | Many more materials
|
Marking sample works but not limited:
Support and warrantyMANUALS AND INSTRUCTIONAL VIDEOSAn Operation Manual and instructional video that contains clear explanations of the Installation process and the usage of the software, the control panel and other features.
WARRANTY AND PROFESSIONAL SUPPORTTo make sure your machine never stops running, in the unlikely event that your equipment needs technical service, we have an extensive inventory of spares parts as well as technical support at any of our fully stocked facilities in China and the others oversea(India), DA PENG LASER, also offers a comprehensive warranty policy for manufacture deffects.
Shipping and trainingINSTALLATION, TRAINING, STOCK AND DELIVERY
Up to 8 hours of training (2 days of 4 hours) in the Installation, Maintenance & Operation of the Laser Machine, as well as the included software is available Free of charge at our premises. Unlimited technical support is offered via telephone, e-mail and other means. Optional On-Site Installation and Training by our Tech Support Engineer is available for an additional charge at the customer's request. We have 1 fully stock facilities and other plants in the China and can deliver anywhere in the world.
