Product Specifications
| Prod Model: |
XZS1000 |
| Material: |
Stainless Steel/Carbon Steel |
| Power: |
0.25kw/0.55kw /0.75kw /1.1kw /1.5kw /2.2kw |
| Voltage: |
110V/220V/380V/440V |
| Phase: |
Single Phase/Three Phase |
| Frequency: |
50Hz/60Hz |
| Used For: |
Screening & Sorting |
| Application: |
Liquid /Powder /Particle |
| Layer: |
1-5 Layers |
| Mesh Size: |
2-500mu/Inch |
| Certification: |
Ce,ISO |
| Type: |
Circular |
| Object: |
Food Processing |
| Condition: |
New |
| Usage: |
Sieve Shaker |
| Works: |
Rotary Vibration |
| Shaft Number: |
Other |
Product Description

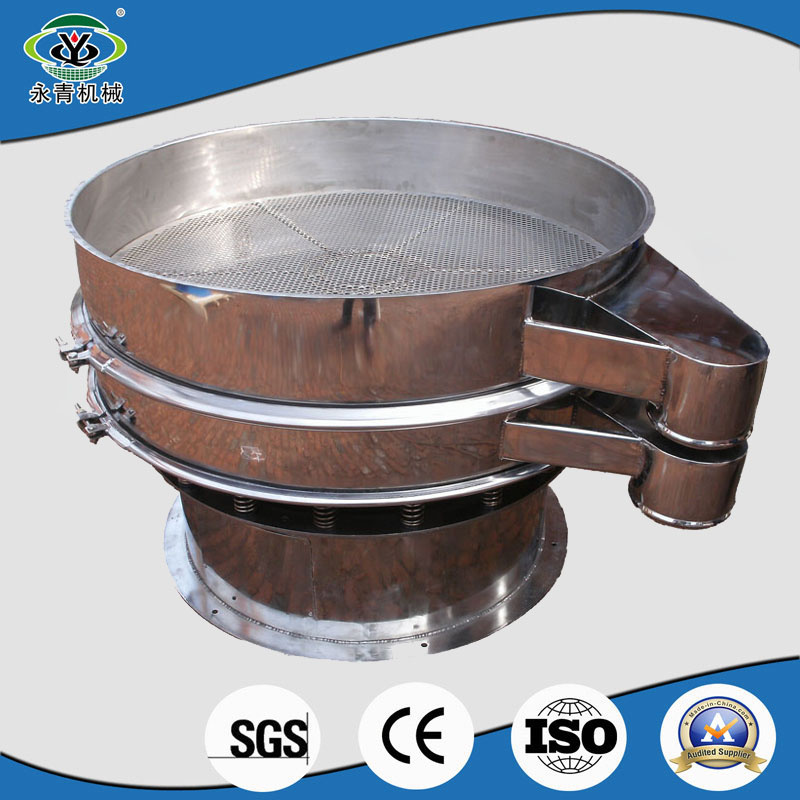

Introduction of Vibrating Screen:
The XZS series rotary vibrating screen is used for materials screening /sieving /sorting /grading /classifying /separating. It is electronic automatic ,suitable for screening fine powders and granules ,separate materials to different size fractions. also used for liquid filtering /purifying
This ratory vibrating screen machine can be single deck or multi decks , with different mesh size for each deck (mesh size can be 2-300 mesh). screen diameter can be 400mm ,450mm, 500mm, 600mm ,800mm, 1000mm,1200mm,1500mm and 1800mm as per different process capacity requirement .widely used for food , chemical , mineral industries etc.
Electric Power Supply :
110V--480V available
50hz /60hz
single phase /three phase
Features of Screen Sieve:
1. quick release ring , make it fast and easy to replace different mesh screen
2. suitable for all kinds of powders ,particles and liquids,
3. no block of screen nets , with silicon screen cleaning bouncing ball for fine powders
4. the feeding-out direction can be adjusted freely
5. high efficiency in scren separation and filtering precision ,
Working Principle of Vibrating Screen Machine :
use a vertical vibrating motor as vibraion source , making processing materials on the screen move centrifugally ,and realize high accuracy screening purpose. by adjusting eccentric blocks' angles of the motor , can easily change the vibrating force , and then change material moving routes.
Application of Vibration Screen:
The sieve shaker machine is suitable for screening powders , particles and liquids.
Widely used in fertilizer, medicine and powder coatings, paints, cosmetics, oils, resin, ceramic slurry, clay mud, lime, , juices, beverages, sugar, salt, monosodium glutamate, spices , sewage, wastewater treatment processes milk, starch, wheat flour, rice flour, carbon, graphite, manganese powder, lithium carbonate, a co-solvent, fire extinguishing agents and environmental protection industries in the screening, filtering
The vibrating motor:
1. source of vibration force , easy adjusted.
2. automatic power off protection in case of short circuit , default phase or unstable voltage.
3. 110v-480v voltage available
4. both single phase and three phase available
Q : How to Select The Suitable Vibratory Screen
A : Please confirm the following information , then we will advice the suitable screening machine for you
1. what material you are going to screening ?
2. How many layers you need ?
3. the screen mesh size for each layer you need .
4. what process capacity you need ( t/h ) ?
| Model | XZS-
500 | XZS-
600 | XZS-
800 | XZS-
1000 | XZS-
1200 | XZS-
1500 | XZS-
1800 | XZS-
2000 |
| Dia (mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
| Layer | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-2 | 1-2 | 1-2 |
| Screen Dia (mm) | 430 | 530 | 730 | 900 | 1100 | 1400 | 1700 | 1900 |
| Screen Mesh (mu/inch) | 2-500 |
| Maximum particle size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
| Vibration time (times/min) | 1440 |
| Power(kw) | 0.25-
0.55 | 0.25-
0.55 | 0.55-
0.75 | 0.75-
1.5 | 1.1-
1.8 | 1.5-
2.2 | 2.2 | 2.2 |
Our Service:
1. fast letter reply within 12 hours , online service 24 hours.
2. professional technicians , provide you satisfied screening machine
3. fast delivery . product will be sent out in 3-5 days after deposit
4. quality assured , have get certificates include the CE , ISO and SGS . 12months warranty.
5. with rich export experience , have exported to more than 70 countries.
6. customization service available , OEM supported
7. machines will be sent with standard plywood case package.
