Covert Mission Video Cofdm Transmitter
Price: |
US $ 2999/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
MV2025TWLE |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Transmitter: 109.5X85X17mm, Lithium Battery: 113X |
Weight: |
Transmitter: 0.27kg, Battery: 0.22 Kg |
Application: |
Covert Mission |
Modulation: |
Qpsk, 16qam, 64qam |
Oscillator Circuit: |
LC or Crystal Oscillator |
Product Description

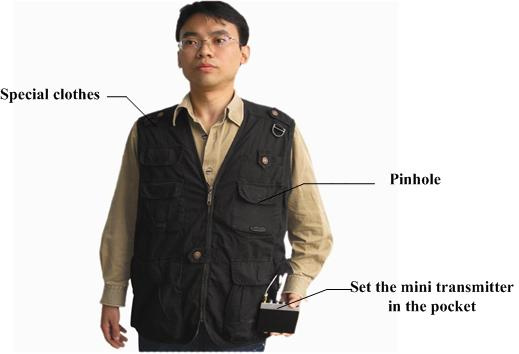

Functions & Features:N Super low latencyN Working frequency and RF bandwidth self-adapted within specified rangeN RS232 data unidirectional transmissionN Low power consumption, small size and portable usageN Separately workable and also compatible with external power amplifierN vest and pin-hole camera compatibleN Military aviation plug for A/V and power interfaces;Different pins for different function interface to avoid misplugN Disconnectable lithium battery, easy operation and battery replacement
Power Supply |
Lithium battery | DC10.8V /1800mAh |
Lithium battery charger | (Dedicated) 12.6V/2A |
Video Transmission |
Frequency output range | 300MHz~1.2GHz or user customized |
RF bandwidth MHz | 6/7/8MHz or 1.25/2.5MHz |
Power output | 500mW |
C/N | ≥28dB@27dBm |
SHG | >52dBc |
Modulation | COFDM |
Video encoding | MPEG-2/MPEG-4 |
Encryption | AES/ALLTECH Basic scrambling |
Constellation | QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz |
FEC | 1/3, 2/3@ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz |
Carrier | 2K |
GUI | 1/8, 1/16 @ 1.25/2.5MHz 1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz |
Video input level | 1~1.2Vp-p@75Ω |
Video input format | PAL/NTSC |
Video resolution | 720x576(PAL) 720x480(NTSC) |
Video amplitude-frequency characteristic dB | 0~4.8MHz | -0.5~1.5 |
5.5MHz | -4.0~1.5 |
Audio input | Left/right channel, stereo |
RS232 control interface | Standard RS232 level, 9600, 8, N, 1 |
RS232 data interface | Standard RS232 level, support 1200~115200 |
Delay | Less than 60ms |
Environment |
Working temperature | -25°C~55°C |
Storage temperature | -40°C~70°C |
Ambient humidity | No less than 95% |
Appearance |
Dimension | Transmitter: 109.5X85X17mm, lithium battery: 113X 85X13.2mm Combination dimension: 111.2X85X27.3mm |
Weight | Transmitter: 0.27Kg, battery: 0.22 Kg |
RF interface | SMA |
