Product Specifications

Product Description

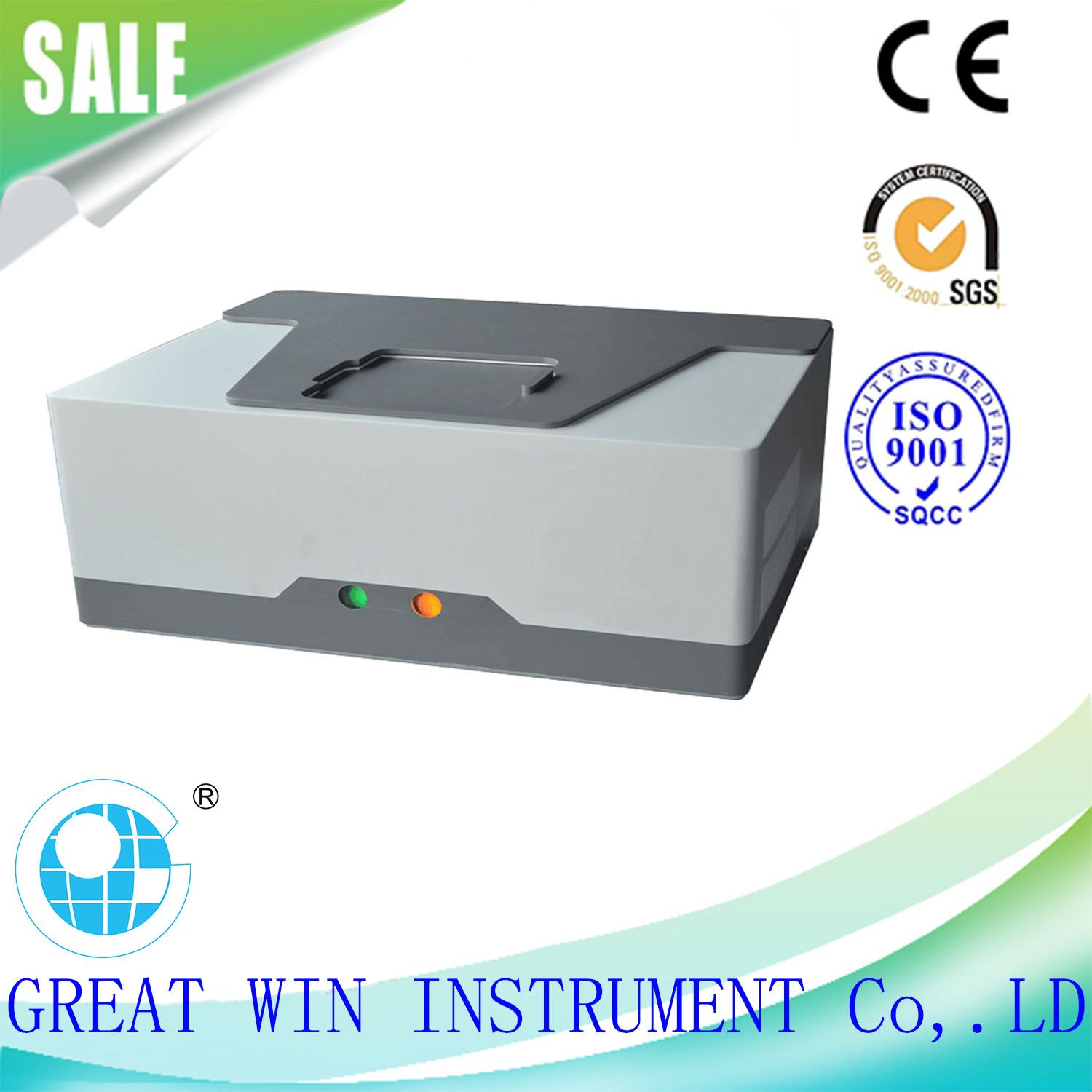

                        Copper And Aluminum Alloy Testing Machine (GW-2100)



I. Overview of instruments and technical indicators
 Products through the CE certification, radiation protection in line with national standards.
2, instrument overview
GW-2100, triple ray protection system; user-friendly interface; integrated application of empirical coefficient method, the basic parameters of V6.0 analysis software. Can fully meet the RoHS / WEEE related control requirements. Well-designed open work curve function, especially for multi-material factory process control. The following are the same as the "
Fully in line with the International Electrotechnical Commission IEC62321 standards and China's environmental standards and technical requirements and technical specifications.
2.2 instrument features
1, safety performance
Triple ray protection (software, hardware, labyrinth design), to ensure the safety of the operator and the accident caused by accidental radiation damage.
2, hardware performance
1, large sample cavity design, adapted to the detection of large samples, partially replace the handheld XRF function;
2, advanced modular design concept, to ensure the follow-up of the instrument high scalability;
3, the software performance (the use of software has been made software copyright)
1, the latest optimization of the V6.0 analysis software according to the sample material, shape and size automatically set the light pipe power, both to extend the life of the lamp can give full play to the detector performance, a substantial increase in measurement accuracy;

2, the industry only to provide open work curve calibration platform for each user can be tailored to the best detection and control of harmful substances;
3, the integration of a series of advanced spectral processing methods, including FFT (fast Fourier transform filter), accurate background subtraction method, micro-automatic peak and Quasi-Newton (quasi-Newton) optimization algorithm;
4, the world's leading XRF analysis software, including the experience of the coefficient method, the basic parameters (FP method), the theory of α coefficient method and other classic analysis methods to fully guarantee the accuracy of test data.

4, other features
1, according to user requirements to customize the test report output format (Excel, PDF, etc.), in line with the factory a variety of statistical and format requirements.
2, the test data classification management, to further strengthen the seriousness of the test data and quality control of the reliability.
3, can provide hexavalent chromium quantitative test technology and accessories, coating thickness measurement and multi-element analysis software (users need to purchase separately).
4, multi-language software interface to choose from.

2.3 instrument technical indicators
Technical Parameters

3.4 micro-motion platform and high-resolution CCD
The load test platform, equipped with fine-tuning device, can easily achieve the detection of the positioning and detection of regional adjustment.
1.3 megapixel CCD camera, can effectively observe the status of the test area in real time, and photographed material photos, as part of the test report. The following are the same as the "

3.5 large sample cavity
Small sample chamber size (closed door test): 300 * 300 * 100mm
Large sample cavity size (open door test): unlimited, partially replace the hand-held function.



3.6 heat dissipation system
Efficient three-dimensional cooling system, a substantial provision of the reliability of the instrument, stability
3.7 Radiation Safety System
Triple ray protection system (software, hardware, labyrinth design)

Fourth, the instrument software configuration
4.1 Instrument operation software function
1, function
1, the RoHS directive of the five harmful elements (Pb, Cd, Hg, Br, Cr) for accurate testing;
2, elemental analysis range: from potassium (K) to uranium (U), ppm order of magnitude;
3, analysis methods: integrated application of empirical coefficient method, the basic parameters of the method;
4, analysis reports: multi-language format (Simplified Chinese Traditional Chinese English) and document format reports, such as Excel,
PDF, etc., the default standard template, the user can also customize the template format, all documents are free to print and save;
5, the data automatically save: all samples of the test data will be automatically saved, the test results are traceable;
6, the stability of self-test function: the instrument can be immediately on the current stability of the automatic detection;
7, multi-language interface: English, Simplified Chinese, Traditional Chinese and so on.

2, features:
1, preset a number of working curves, covering metal, PE, PVC, aluminum, solder, copper alloy and other types of matrix can be used
The requirements of routine measurement;
2, to provide an open working curve platform, the user can freely configure the work curve and add any standard data to full
Sufficient to meet the requirements of the test, or to adapt to the late expansion of environmental directives;
3, user-friendly software interface and operating methods, the use of unique graphics technology, both convenient and intuitive; combined with a large number of operational experience to optimize the operating steps, great convenience for users;
4, the precise data processing methods: the basic parameters based on the precise configuration of the filter system to significantly improve the peak back,
Combined with a series of advanced spectral processing methods, greatly improve the detection accuracy of the characteristic line, as a basis for the empirical coefficient
The law to do further correction, so that the test data to achieve a high degree of precision and accuracy;
5, data management: database-supported professional report generation, query printing, operator rating and other functions greatly facilitate the management of enterprises;
6, the perfect security chain function: with the hardware circuit protection measures, in the unsafe operation occurs automatically cut off X
Ray to ensure that the operator is not hurt;
7, intelligent software protection, to avoid improper operation of the damage to the spectrometer, to extend the life of the instrument.

4.2 RoHS analysis software
1, for the existing environmental directives of the five harmful elements, halogen-free requirements and toys in the instructions of the harmful elements, the installation of optical path optimization system can qualitatively test Cl elements;
2, in the open work curve platform support, the user can calmly deal with a variety of environmental directive test expansion.

9, technical support and after-sales service
Provide training for customers free of charge, training period of one to three days. (Need to reflect the stage of training time)
Machine warranty for two years, the national network after-sales warranty, and life-long technical support services.
Warranty period of non-human factors Instrument damage, free maintenance.
4, the warranty period, free software upgrades to provide services.
10, to provide a comprehensive response to a variety of environmental directives detection and control programs
According to the specific needs of users and the characteristics of controlled materials, combined with the technical characteristics of XRF analysis, the instrument analysis means into the user's quality control system, to provide users with the best detection program to help establish the material acceptance standards; and special materials to provide risk Analysis method.
