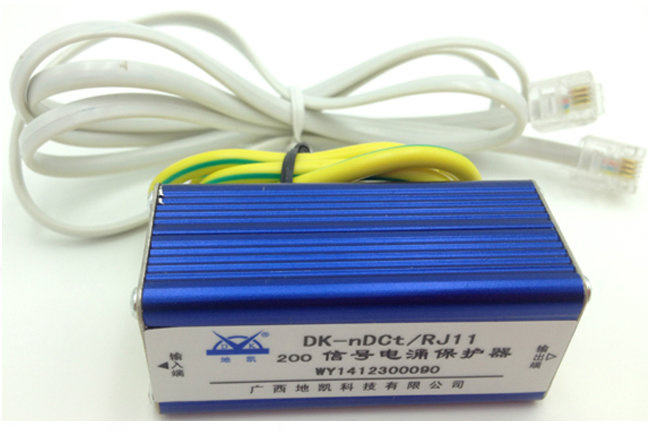

Communication Line Rj11 Signal SPD
| Price: |
US $ 6.5-8/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
DK-nDCt/RJ11 200 |
| Connector Type: |
Rj11 |
| Shell Material: |
Aluminum |
| Shell Protection Level: |
IP30 |
| Nominal Discharging Current: |
5ka |
| Maximum Discharging Current Imax: |
10ka |
| Transmission Rate(Bit/S): |
2m |
| Quantity Of Core Line Under Protection: |
3,4 |
| Maximum Working Voltage Uc: |
220V |
| Inset Loss: |
0.5dB |
| Impedance: |
10 Omega |
| Type: |
Signal Type Arrester |
| Structure: |
Protective Gap |
| Installation: |
Tandem Arrester |
| Certification: |
Ce |
| Brand: |
Dikai |
Product Description
Product Description

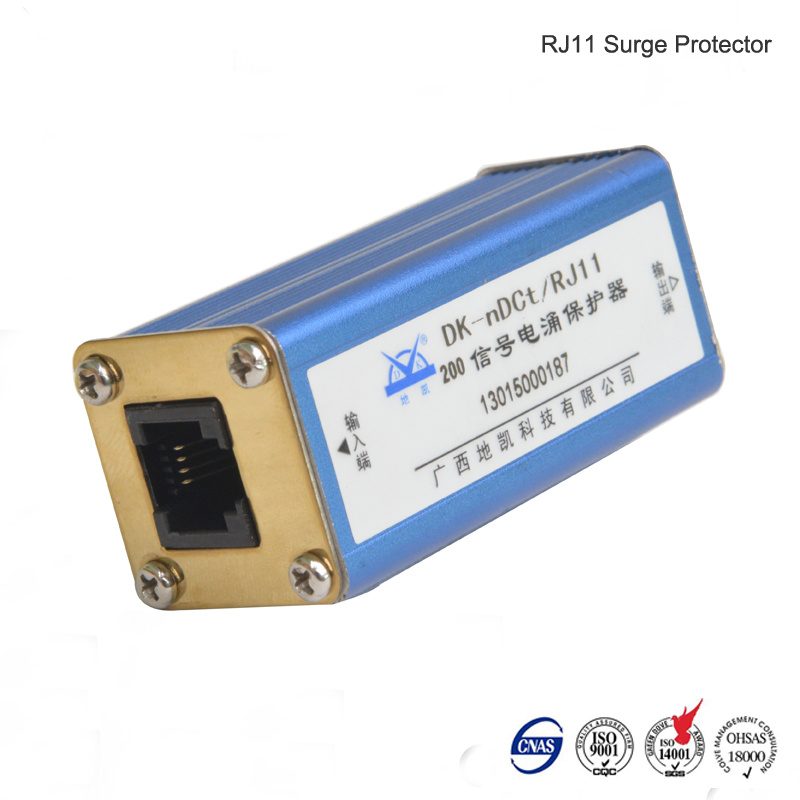

RJ11 Serials Signal Surge Protector is designed according to the IEC Communication SPD standards.It is suitable for the lightning protection of Phone Line, Dedicated Communication Line, SPC Exchange and any other equipments with RJ11 connector. The RJ11 connector is standard crystal RJ11 type. Single port signal SPD can protect 1pair/2 pairs communication line.
Multi ports RJ11 surge protector can be installed in the standard 19" cabinet, with features of low residual voltage, easy installation and maintenance.8/20us maximum discharge current Imax can be 10kA/line.
Features
1. Maximum discharging currents 10kA(8/20us).
2. High speed transmission rate, low loss.
3. Interference absorption.
4. Communication line SPD.
5. Various working voltage available: DC24V, DC48V, DC200V.
6. Easy installation, simple maintenance.Application Scope
Telephone, SPC exchange, fax machine, modem, communication terminal equipment, and communication
rooms.Technical Parameter| Item | DK-nDCt/RJ11 |
| Type | Phone Line JR11 Surge Protection |
| Shell Material | Aluminium Alloy |
| Shell Protection Level | IP30 |
| Working Termperture | -40~+85° Degree Celsius |
| Relative Humidity | <95% |
| Maximum Working Voltage Uc | 220V |
| Nominal Discharging Current In(8/20us) | 5kA |
| Maximum Discharging Current Imax(8/20us) | 10kA |
| Limiting Voltage(10/700us) | ≤300V |
| Transmission Rate(bit/s) | 2M |
| Inset Loss | 0.5dB |
| Impedance | 10 Omega |
| Connector Type | RJ11 |
| Weight | 0.08kg |
| Dimension | 59X25X25mm |
| Quantity of Core Line under Protection | 3, 4 |
| Art. No. | 1008002 |
