Product Specifications
| Prod Model: |
PC6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Size: |
10m*7m |
| Material: |
Polycarbonate |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
with Remote Control |
| Special Function: |
Advertising |
| Color: |
Transparent |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
Product Description
As clear as glass, as strong as steel,
* Excellent visibility
* Safety and security
* Anti-UV rays
* Heat insulation
* Energy saving
* Elegant appearance
* High impact resistance
* 24 hours advertising effect
It's an ideal solution for commercial shop, showroom, fashion shops, jewellery shops,
Airport, banks, club bars, etc.
Detail Info:

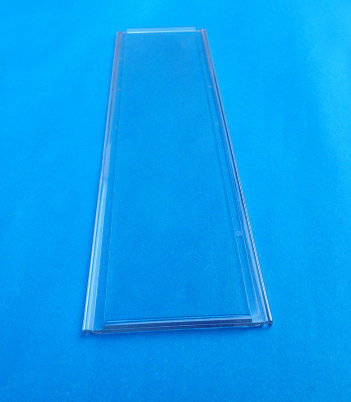

Polycarbonate curtain
*Material: polycarbonate
*Color: transparent
*Length: 480 mm
*Width: 100 mm
*Thickness:3.7mm
*Weight: 205g/pc
*About 16 pcs/ square mete

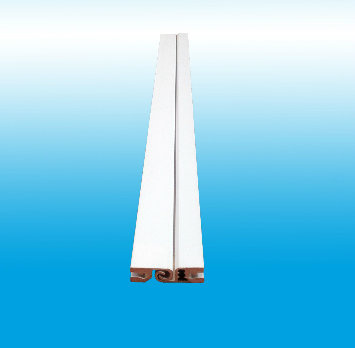

Aluminum joining tube
*Material: double aluminum joining tube
*Standard Color: white, powder coated
*Thickness: 4.0mm
*Max length: 10 meters
*Need about 8 meters/ square meter

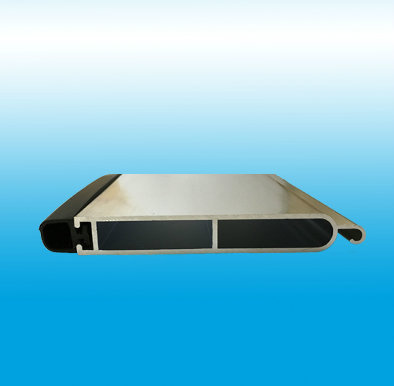

Bottom rail
*Materail: aluminum
*Size: 106*20mm
*Thickness: 1.4mm *Color: white, powder coated
*With rubber strip
*Max length: 10 meters
Guide rail
*Material: aluminum
*Size:85*36mm,
Width*Depth*Thickness: 2.5mm *Standard color: white(anodized)*With brush strip
*Max length: 10 meters Mouth opening:25mm
Manual operation system
Including locking system, top beam slat and connecting slat, shaft with
counter spring and spring box, steel end plate, etc.
Motorized operation system
Including side motor, shaft with retractable bearing, steel end plate, top beam slat, connecting slat, etc.
Operation way
1, Manual operation (push up and down by hand)
2, Motorized operation ( by remote control, switch button, endless chain )
Option: Shutter box
