Product Specifications
| Prod Model: |
MV2025TSLE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: 111×86×30: |
Weight: Transmitter 0.27kg |
| Application: |
Data Transmission, Image Transmission, Video Transmission |
| Modulation: |
Qpsk, 16qam, 64qam |
| Oscillator Circuit: |
LC or Crystal Oscillator |
Product Description
Functions & Features:
N Super low latency
N ABS encryption
N Waterproof and dustproof, international IP68 standard
N Aluminium alloy case with good impact resistance
N Separate digital frequency controller for simple operation
N Easy battery replacement
N Working frequency and RF bandwidth self-adjustable within specified range
N One-channel video and two-channel audio (left/right channel) simultaneously input
N 1.25/2.5/6/7/8MHz multiple bandwidth output

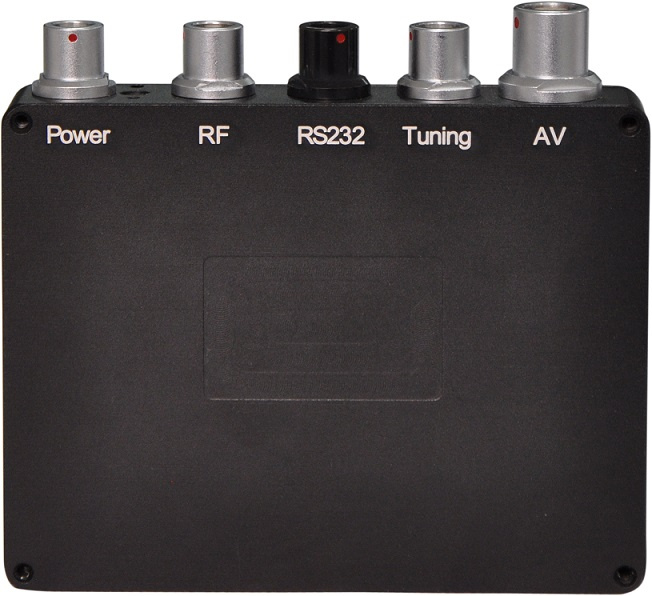

N Military aviation plugs for A/V and power interfaces; Different pins for different function interfaces to avoid misplug
|
Power Supply |
|
Lithium battery |
DC10.8V/1800mAh |
|
Lithium battery charger |
(Dedicated)12.6V/1A |
|
Video Transmission |
|
Frequency output range |
300MHz~450MHz,560~760MHz or user customized |
|
RF bandwidth MHz |
6/7/8MHz or 1.25/2.5MHz |
|
Power output |
500mW |
|
C/N |
≥28dB@32dBm |
|
SHG |
>52dBc |
|
Modulation |
COFDM |
|
Video encoding |
MPEG-2/MPEG-4 |
|
Encryption |
AES/ALLTECH Basic scrambling |
|
Constellation |
QPSK/16QAM @ 1.25/2.5MHz
QPSK/16QAM/64QAM @ 6/7/8MHz |
|
FEC |
1/3, 2/3@ 1.25/2.5MHz
1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz |
|
Carrier |
2K |
|
GUI |
1/8, 1/16 @ 1.25/2.5MHz
1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz |
|
Video input level |
1~1.2Vp-p@75Ω |
|
Video input format |
PAL/NTSC |
|
Video resolution |
720x576(PAL) 720x480(NTSC) |
|
Video amplitude-frequency characteristic dB |
0~4.8MHz |
-0.5~1.5 |
|
5.5MHz |
-4.0~1.5 |
|
Audio input |
Left/right channel, stereo |
|
RS232 control interface |
Standard RS232 level, 9600, 8, N, 1 |
|
RS232 data interface |
Standard RS232 level, support 1200~115200 |
|
Delay |
Less than 60ms |
|
Environment |
|
Protect standard |
IP68 |
|
Ambient humidity |
No less than 95% |
|
Working temperature |
-25°C~55°C |
|
Storage temperature |
-40°C~70°C |
|
Protect standard |
Rust protection and shakeproof |
|
Appearance |
|
Dimension |
111×86×30.8mm |
|
Weight |
Transmitter: 0.27kg; lithium battery: 0.22kg |
|
RF interface |
SMA |
