Product Specifications
| Prod Model: |
PEDK-160260 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Small Power Engraving Machine |
| Drive Type: |
AC Servo Drive |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Plastic |
| Certification: |
GS, SGS, CE |
| Warranty: |
12months |
| Delivery: |
5-7 Working Days |
Product Description

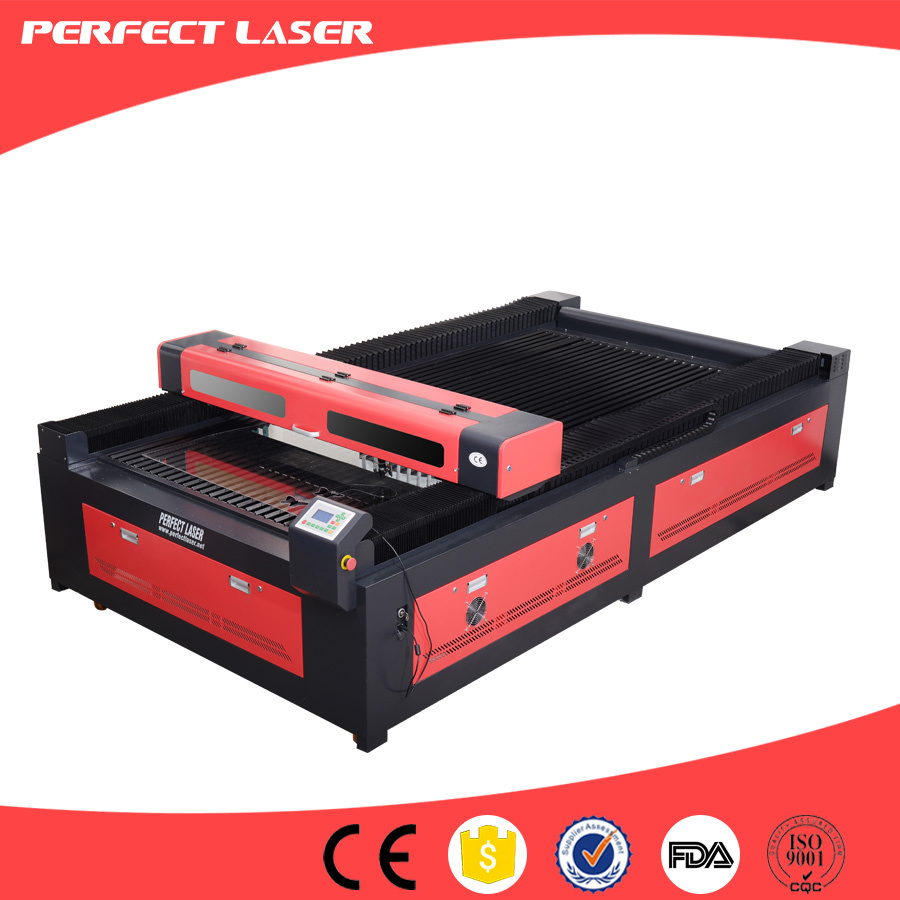

Co2 Laser Engraving Cutting Machine with CE ISO FDA Approval
Introduction Perfect Laser is a world leading manufacturer of large sized fled bed laser cutting machine.
Large size flat bed laser cutting machine is a multi-function laser process device which combines the functions of drawing, engraving and cutting.
The industrial fabric cutting machine adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting, carving for clothing and other fields.
The industrial fabric cutting machine not only has all the large scale engraving machinesfunction, but also has mechanical design, capability, and working area perfect improved.
Features
1. The industrial fabric cutting machine adopts "automatic stainless steel crawler platform & large scope", can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision of the industrial fabric cutting machine can save time and greatly improve production efficiency combing with automatic feeding device.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Professional crawler work table, which meet the needs of diversified laser procession;
6. Adopt CW-3000 Water Cooling System with Alarm Protection and temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, USA Original Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, makes high efficiency and steady.
8. Adopt fast speed stepping motor and driving system, it has high precision in repetition, numeral timing, little error, simulation quantum control laser power, can engrave 1×1mm little English character perfectly.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
11. Optional Imported Ball Screw Rod, with high speed and accuracy, the industrial fabric cutting machine is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Application Available Materials:
1. The industrial fabric cutting machine is widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
2. Advertisement material: plastic, acrylic,pvc board,double color board, rubber plate,stamp and seal, paper, bamboo engraving and cutting.
3. Wood material: wood engraving and cutting, MDF engraving, plywood cutting.
Application Industry:
Garment and leather, embroidery, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, decoration and upholster industry.
It's also called industrial fabric cutting machine,leather cutting machine,laser leather cutting machine,cutting machine for leather,acrylic cutting machine,laser cutting machine for wood.
Technical Data
Model
| PEDK-130180
| PEDK-130250
| PEDK-160260
|
Working Area
| 1300×1800mm
| 1300×2500mm
| 1600×2600mm
|
Laser Power
| 60W / 80W / 100W / 120W / 150W
|
Laser Type
| Hermetic and Detached Co2 Laser Tube
|
Engraving Speed
| 1-60000mm/min
|
Cutting Speed
| 1-10000mm/min
|
Repeat Location Accuracy
| ± 0.0125mm
|
Laser Power Controlling
| 1-100% Manual Adjustment and Software Controlling
|
Voltage
| 220V(±10%) 50Hz
|
Cooling Mode
| Water Cooling and Protect System
|
Cutting Platform
| Professional Thickening Strip or Honeycomb Work Table
|
Controlling Mode
| CNC Professional Control System
|
Support Graphics Formats
| BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
|
Power Controlling Mode
| Laser Energy Combining Movement Control System
|
Control Software
| Original Perfect Laser Engraving & Cutting Software |
Working Video, PDF detailed description and quotation will be sent to you upon your inquiry!!! Contact me by >>>>>>>>>>>>>>>>>>>>>>>>>>
