Product Specifications
| Prod Model: |
FL1490 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Working Area: |
1400*900mm |
| Laser Power: |
90W/100W/130W/150W |
| Max Cutting Speed: |
30000mm/Min |
| Max Engraving Speed: |
60000mm/Min |
| Controller: |
DSP |
| Graphic Format Supported: |
BMP, Plt, Dst, Dxf, Ai |
Product Description

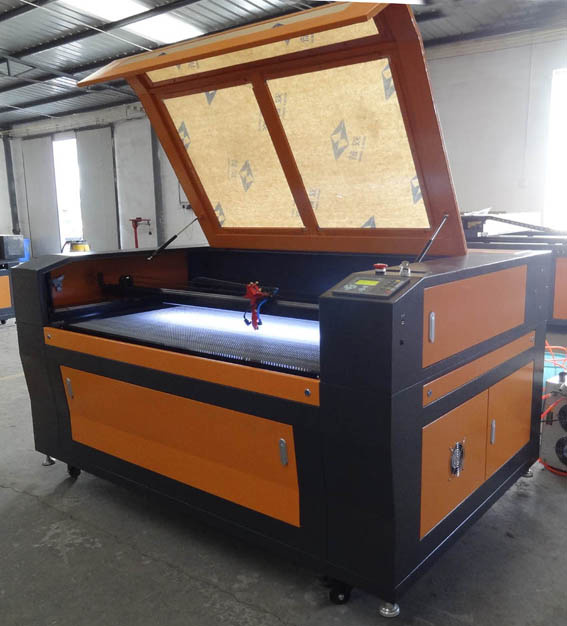

China leading manufacturer for CO2 laser engraving cutting machine
Specifications:1) Laser-type: Sealed CO2 laser tube, water-cooling, 10.6um
2) Laser power: 90w/100w/130w/150w
3) Engraving area: 1400 x900mm
4) Max engraving speed: 60, 000mm/min
5) Max cutting speed: 30, 000mm/min
6) Laser output control: 1-100% software setting
7) Location precision: Less than 0.01mm
8) Highest scanning precision: 2500DPI
9) Operating temperature: 0 - 45
10) Operating humidity: 5- 95%
11) Minimum shaping character: English 1.0 x 1.0mm
12) Graphic format supported: BMP, PLT, DST, DXF, and AI
13) Driving system: Three-phase stepper
14) Cooling mode: Water-cooling and protection system
15) Auxiliary equipments: Exhaust-fans, air pump, water pump
16) Controlling software: DSP control system.
17) Compatible Software: TAJIMA, CorelDraw, AutoCAD, Photoshop
18) Color separation: Yes
Features:Adopting the most advanced DSP control technology, it is the pioneer to faster continuously curing-out and shortcut processing pathway optimizing function, accordingly increase greatly the efficiency. It automatically equalize the diminishing of light during the whole operating to ensure the same cutting effect in different area. High-speed cutting control software and buffer function in high-speed movement can improve production efficiency. The new software provides the direct output of original pictures, completely fit the graph formats such as CAD, CAM of CAD, Coreldraw software, to meet the practical design requirements of the end users.
Applicable Industries:Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etcApplicable Materials:Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, steel, marble, granite, tiles and etc...
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.
Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.
Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
We are searching the distributors around the world. Hope we can cooperate for the world market.
