Product Specifications
| Prod Model: |
PEDK-160100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Color: |
Blue and White / Black and Red, Red and White |
| Workin Area: |
1600*1000mm |
| Power: |
80W 100W 130W 150W |
| Voltage: |
110/220V |
Product Description

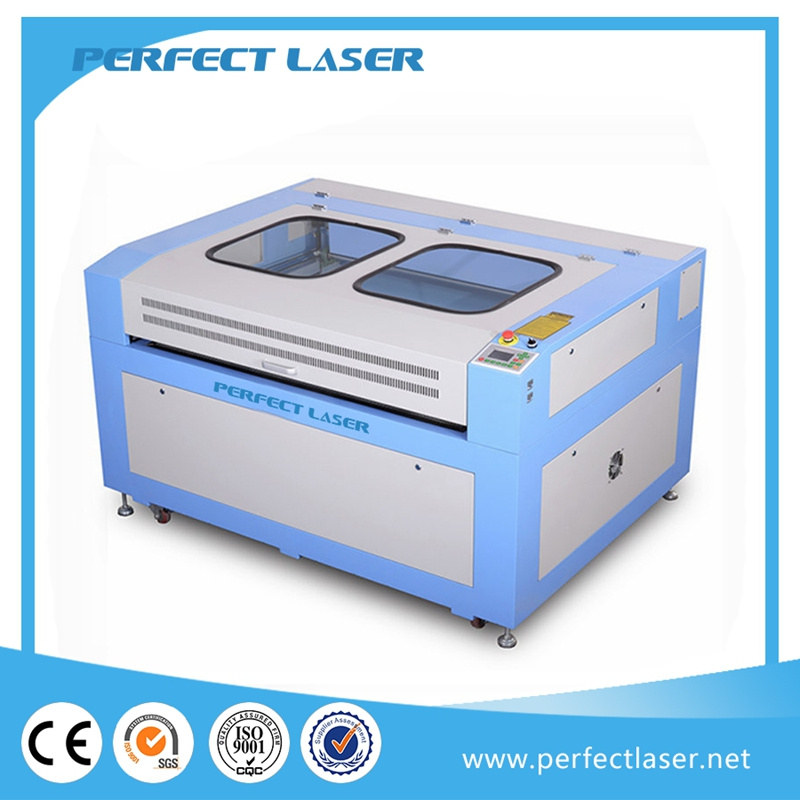

CO2 Laser Cutting Machine Price 160100
1. Applied Field:
Laser Engraving Machine has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products, the cutting and carving and plexiglass products, acrylic art&crafts panel lenses, wood carving, wood, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures.
2. Laser Cutting Machine Price Features:
Laser Engraving machine can adopt to engraving, cutting and hollowing large-scale
Fabric, leather, PV leather. It is suitable for finished jeans, sand-blasted, suit-dress factory and etc. It also can cooperate with control rolling stuff equipment and reach the modernization.
3. Laser Cutting Machine Price Technical Parameters:
Machine Working Area: 1600*1000mm
Laser-Type: Hermitic And Detached Co2 Laser Tube
Laser-Power: 40W / 50W / 70W / 100W / 150W
Speed Engraving: 10000 Mm/S Cutting: 5000 Mm/S
Cutting Platform: Thicker Honeycomb Working Table
4. Technical Dates:
| Model | PEDK-4030 | PEDK-6040 | PEDK-9060 | PEDK-13090 | PEDK-160100 | PEDK-130250 |
| PEDK-130180 | PEDK-160260 |
| Working Area | 400×300mm | 600×400mm | 900×600mm | 1300×900
mm | 1600×1000mm | 1300×2500mm |
| 1300×1800mm | 1600×2600mm |
| Laser Power | 40W / 50W | 50W / 60W | 60W / 80W | 60W / 80W / 100W / 120W / 150W |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Voltage | 220V(±10%) 50Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser's Engraving & Cutting Software |
| Training | Video Training |
| Guarantee | 12 month Guarantee Period |
Need more information from Perfect Laser? Send enquiry to us Right Now!
Contact:
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
