Product Specifications
| Prod Model: |
DW1390 |
| Laser Power: |
60W/80W/100W/130W/150W for Your Reference |
| Machine Application: |
Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: |
18 Months |
| Cutting Thickness: |
0-30mm |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: |
Redcam |
| Guide Rail: |
Taiwin Hiwin Square Rail |
| Table: |
Honey Nest or Blade Table |
| Machine Package: |
Veneer Case |
| Certification: |
Ce, FDA |
Product Description

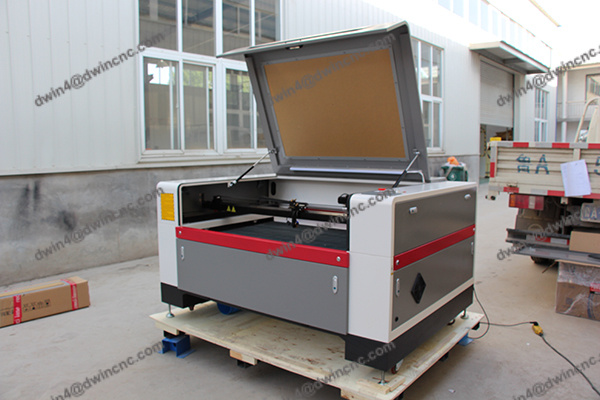

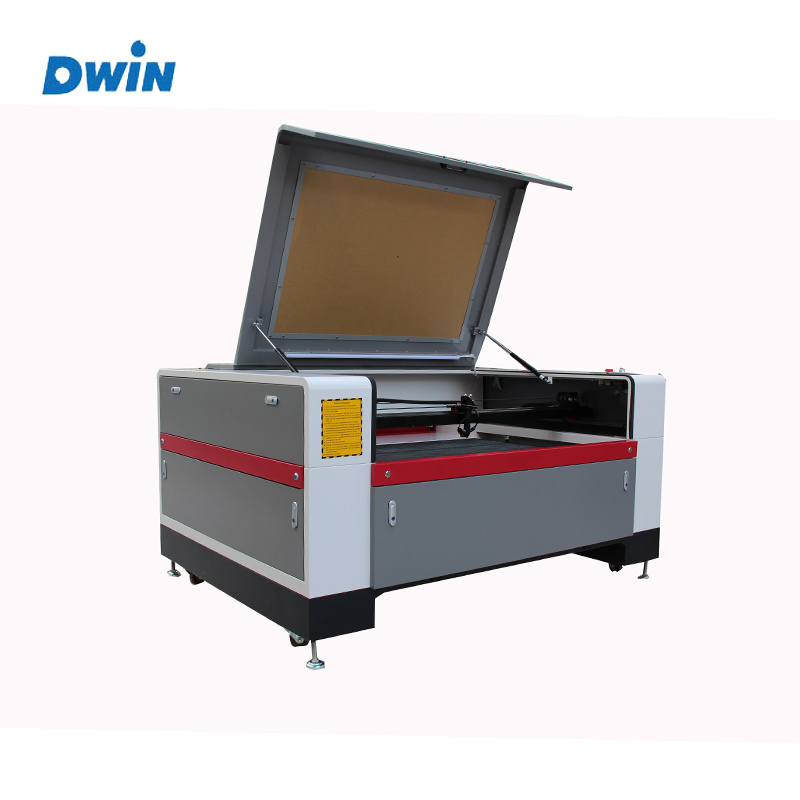

CO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting Machine
Co2 laser machine is for engraving and cutting .
Most popular laser machine ,because Co2 laser machine with auto focus , red dot positioning and motorised up and down worktable , water chiller inusure the best cooling effect .
For accuracy , we adopt linear guide way, import from Taiwan , very stable , and lens and mirrors , we import from USA , for the best laser beam ; also , our motor very quite , and strong , to insure the fast engraving and cutting speed .

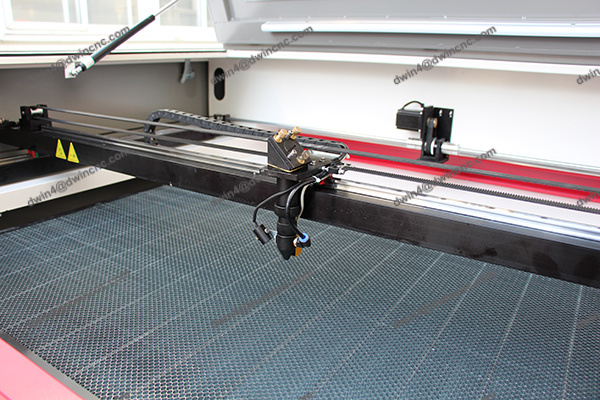

Machine Parameter- Adopt imported Linear Guiding System and ensure the machines endurability.
- Motorized UP/Down worktable +Auto-Focus device +Red Light pointer
- The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.
- High Quality Laser tube provides the Strong beam and Long service life.
- Adopt DSP Control System, and moves smoothly. With modularized and unified design and Installment, it has the better ability of anti-interference, so it is easy to inspect and replace the spare parts.

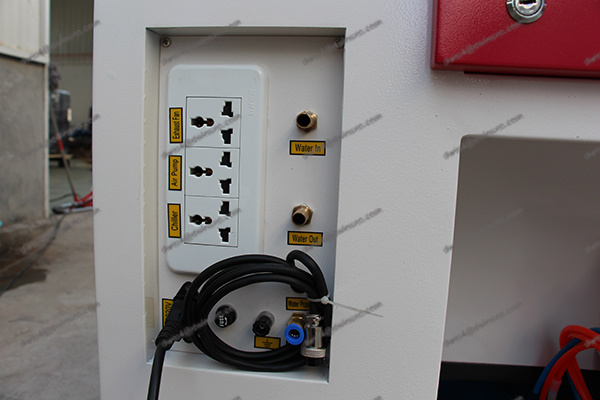

- The Laser tube adopts compulsive Water Cooling System, Cooling Chiller can control the
- Temperature automatically.
- Applicable for the modes like AI, CDR, BMP, DST, DSB and PXF etc.
- Easily Moving universal Wheel

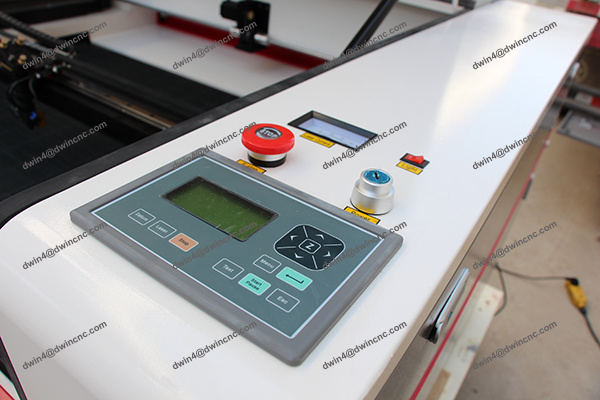

- English Control Panel
| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 90cm*60cm / 35in*24in (L*W) |
| 3 | Laser power | 40W/60W/80W |
| 4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Applicable materials:Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
- International Quality Certificates: CE and FDA.
- The whole machine has full 2 years' warranty, the consumables is 6 moths (Including Laser tube and Mirrors & Lens)
- The warranty is dated from Ex factory date; we will send you the parts for replacing free of charge during warranty; when the warranty is over, we'll charge for replacing.
- We will provide life tine service online, you can get tech support within 24 hours by Email| Telephone| Skype etc
