CNC Woodworking Machinery Zh-1325h
| Price: |
US $ 6000-7300/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ZH-1325H |
| Weight: |
1000kg |
| Spindle Power: |
4.5kw |
| Spindle Speed: |
0-24000r/Min |
| Operating Voltage: |
AC220V/50Hz |
| Max Speed Of Running: |
20m/Min |
| Max Speed Of Engraving: |
10m/Min |
| Platform Size: |
1620*3070mm |
| Max Feed Thickness: |
100mm |
| Resolution: |
0.05mm |
| Warranty: |
1year |
Product Description
Product Description

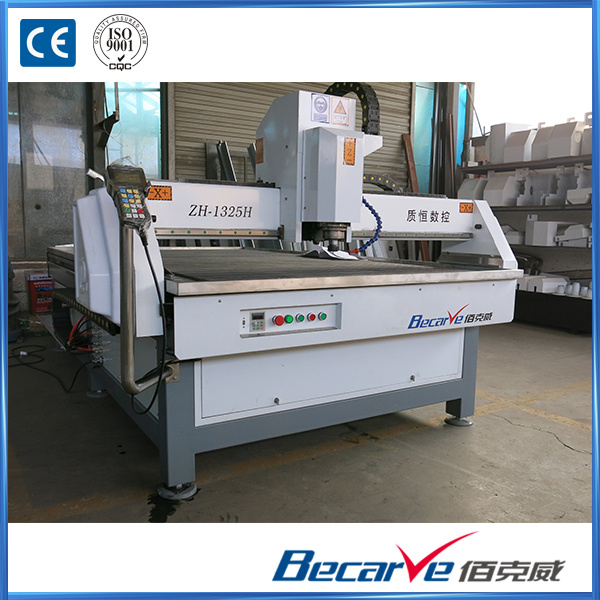

CNC Woodworking Machinery ZH-1325H
Product Features:
1. Spindle design can be increased to 4 spindles, up and down by cylinder independently or moving up and down by motor for choice. Beam trip with full stroke or half stroke is available.
2. Table design: T-slot aluminum table, PVC vacuum table + T-slot aluminum table and compact grade board three types for choice.
Applicable Applications:
1.Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
2.Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
3.Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
4.Musical instrument industry: instrument 3D surface engraving, shape cutting
5.Wooden crafts.
6.Exhibition industry: showcase, etc.
Technical Parameters:| Model | ZH-1325H | Name | CNC Router |
| Standard configuration |
| Item | Specification | Remarks |
| Dimensions (mm) | 3070*2050*1480 | |
| Traveling Size X-Y-Z (mm) | 1300*2500*120 | |
| Max. working piece height(mm) | 100 | |
| Weight (Kg) | 1000 | |
| Systemic Resolution (mm) | ±0.005 | |
| Repositioning Resolution (mm) | ±0.025 | |
| Max. running speed (m/min) | 20 | |
| Max. cutting speed(m/min) | 10 | |
| Working voltage (V/PH/HZ) | 220/3/50 | |
| Cabinet | Electric cabinet + Fan cooling system | CE |
| Spindle (KW) | 3.5/4.5/6.0 | Changsheng/ China |
| Spindle Speed (r/min) | 24000 | |
| Working air pressure (MPa) | 0.6 | |
| Table design | PVC Vacuum & T-slot table | 25mmPVC+ aluminum |
| Driving system | Stepper | |
| Control system | DSP | |
| Software | window98/2000/xp | |
| Tool magazine | Linear Type 8 Plastic Steel Tools | |
| Optional |
| Item | Specification | Remarks |
| Spindle (KW) | 3.0 /4.5/6.0 | HSD air cooling spindle |
| Positioning cylinder | 3 pieces | |
| Table design | Aluminum T-slot table /Vacuum table | Double-layer is optional |
| Driving system | Servo motor | |
| Drilling head | 5V/7V/9V/7V2H | |
| Protect device | Machine enclosure protection guard/ electric safety mat / laser monitor protection system | |
| Vacuum pod | | |

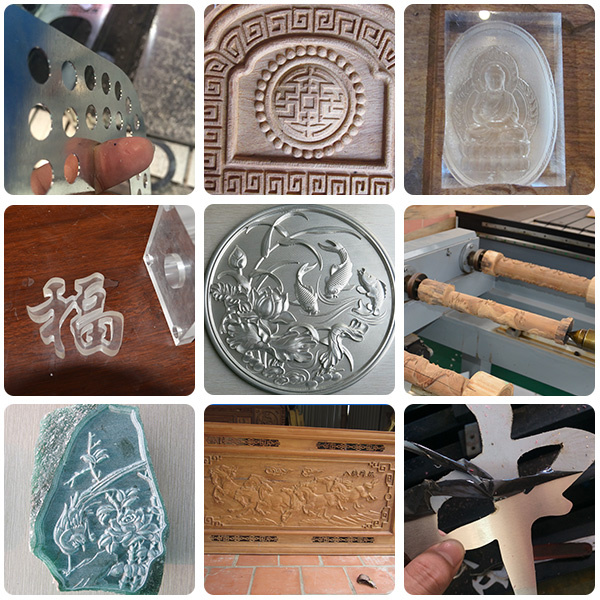

Samples:

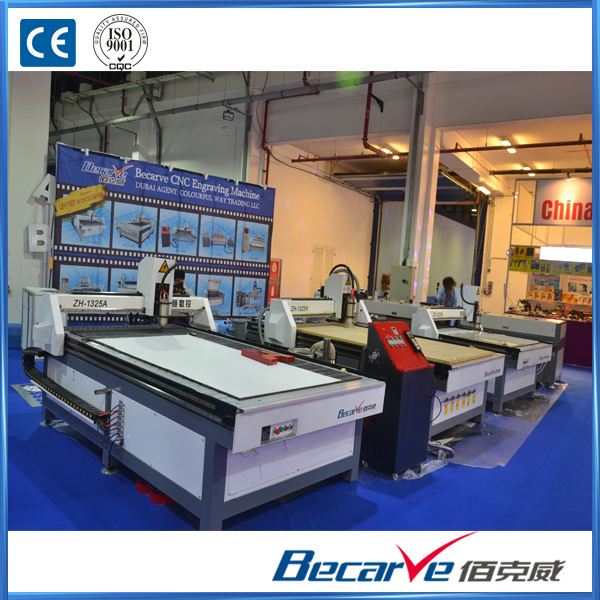

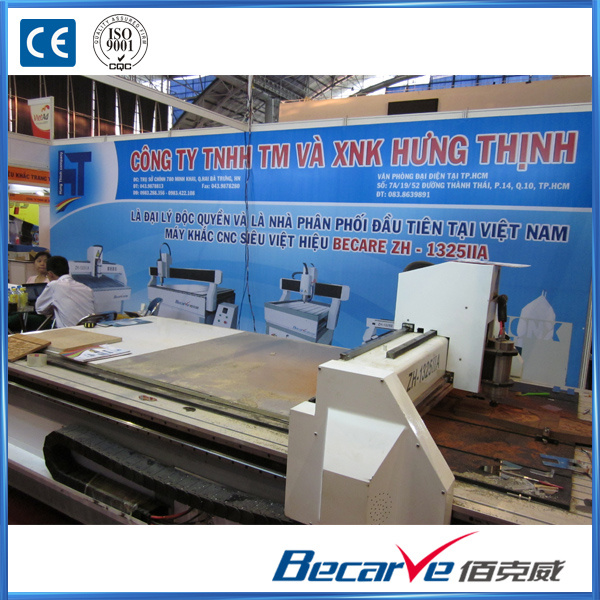

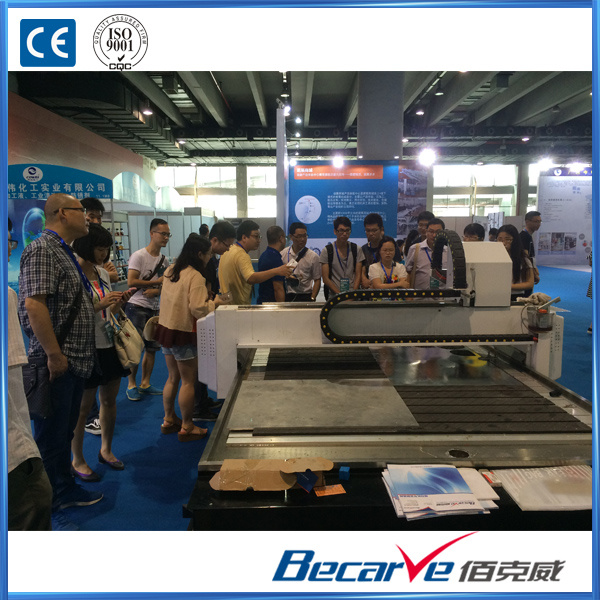

Exhibition:
Packages:1.Water-proof plastic film package with foam protection in each corner.
2.Solid Seaworthy Wood Box Package with Steel Belt.
3.Save space as much as possible for container loading. 4.According to the requirement of customersFAQ:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or MSN, skype etc.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port. Please contact me, I will quickly reply you, detailed introduction of our products
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our company adheres to the business philosophy of 'reliable quality, reasonable price, permanent security'; Insisting on the business strategy of 'the inner management, external word-of-mouth, first-rate service, constant innovation'; Promoting new scientific and technological achievements with high quality products, good reputation, and high-quality after-sale service; Considering the customers' benefit. Doing all of the above, our company not only take a bigger market share, but also obtains the customers' and the cooperative partners' trust.
Product Introduction: Becarve CNC router 1325 series, such as1325-H, 1325-V, are applicable for various metal and non-metal sheets cutting, milling and engraving utilized and required in advertising and upholster industry. The working table dimension of this series is 1300mmX2500mm which is the maximum size for applicable sheet.
