Product Specifications
| Prod Model: |
CNCXG600-V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Cutting Od: |
600 |
| Plasma Source: |
Powermax105 |
| Pipe Length: |
6000mm |
| Application: |
Metal Pipe Plasma Cutting |
Product Description

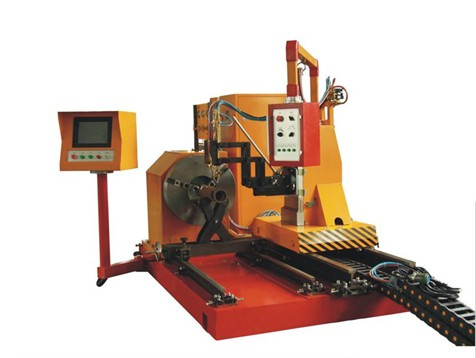

CNC Stationary Pipe Cutter; 3D Tube Profile Cutting Machine; Plasma Pipe Cutting
Technical Specifications
Model Unit CNCXG Series
Cutting Pipe Diameter mm Φ 60-Φ 800mm
Max Pipe Weight KG 5000KG
Cutting Thickness mm Plasma: 1-25mm
Cutting Materials Carbon steel, alloy steel, stainless steel, non-ferrous
Metal
Cutting Speed 80-3000mm/min
Cutting Thickness mm Oxy-fuel: 5-50mm
Number of Control Axes 2-6
Rotating Axis of Pipe Standard, free rotation
Torch Left-Right Movement Standard, movable range is 14, 800mm when cutting
Length is 13m.
Shape Test Standard, 0-900
Torch Left-Right Sway Optional ± 600
Torch: Rise-Fall Optional 150-1700
Torch: Fore-Aft Sway Optional ± 600
Expandable Cutting Nozzle Optional
Cutting Mode Optional Oxy- acetylene, oxy-liquefied gas, air plasma
Source Voltage 380V 50HZ 15KVA
Machine Length when the Pipe is 5000mm in Length mm Can be customized
Machine Length when the Pipe is 13000mm in Length mm Can be customized
Machine Width mm Can be customized
Machine Height Can be customized
Machine Weight when the Pipe is 5000mm in Length
Machine Weight when the Pipe is 13000mm in Length
Min Pipe Length mm 375
Max Pipe Length Standard, 5, 000mm
Max Pipe Length Optional, 13, 000mm
Min Intersection Angle degree 20
Chuck 3-5 jaws chuck
Through Hole Inside Chuck (mm) 20 mm
Fastening Device for Electric Chuck Optional
Fastening Device for Chuck 1 set
Bracket with Calibration optional
Bracket 5 sets (13m) 3 sets (6m)
Bevel Angle Range 60
Color Touch Screen and Bevel Angle Controller 1 set
Plasma Cutting Optional
Flame Cutting Torch 1 set
Vertical Moving Speed mm/min (max) 10000
Rise-Fall Moving Distance mm 150-900
Rise-Fall Moving Speed Mm/min 900
Fore-Aft Moving Distance mm 150-900
Fore-Aft Moving Speed Mm/min 1500
Expandable Torch Distance mm 80
Control Mode
Primary Drive Rotation Automatic
Rotating Axis of Pipe Automatic
Torch Left-Right Move Automatic
Torch Left-Right Sway Automatic (optional)
Torch Rise-Fall Automatic (optional)
Torch Fore-Aft Sway Automatic (optional)
Expandable Cutting Nozzle Automatic (optional)
Shape Test Automatic
Switch Manual
Rise-Fall Move Automatic
Cutting Device
Multi-Dimensional Cutting Head 1 set
Compensation Device for Vertical Semi Diameter Correction Contained
Max Cutting Speed mm/min 20, 000
Cutting Gun Moving Range: 4, 900mm Contained
Cutting Gun Moving Range: 12, 900mm Optional
Max Cutting Gun Tilting Angle 0 ± 600
Height Regulation Device Contained
Control System
Embedded XP industrial PC Standard
CNC System Contained
Human-Machine Interface (10 inches liquid crystal color display) Standard
USB Interface Contained
Remote Networking System Contained
Software
(MDI) (online programming) Standard
(OPPL) Office Manual Programming (offline programming) Optional
CAD/CAM Industry Aided Engineering Drafting Optional
Auto Nesting System Optional
Machine Precision
Primary Drive Rotation Precision 0 ± 0.25
Running Precision mm ± 0.5
Cutting Gun Sway Accuracy 0 ± 0.50
