CNC Router / Stone Engraving Machine SD-1825

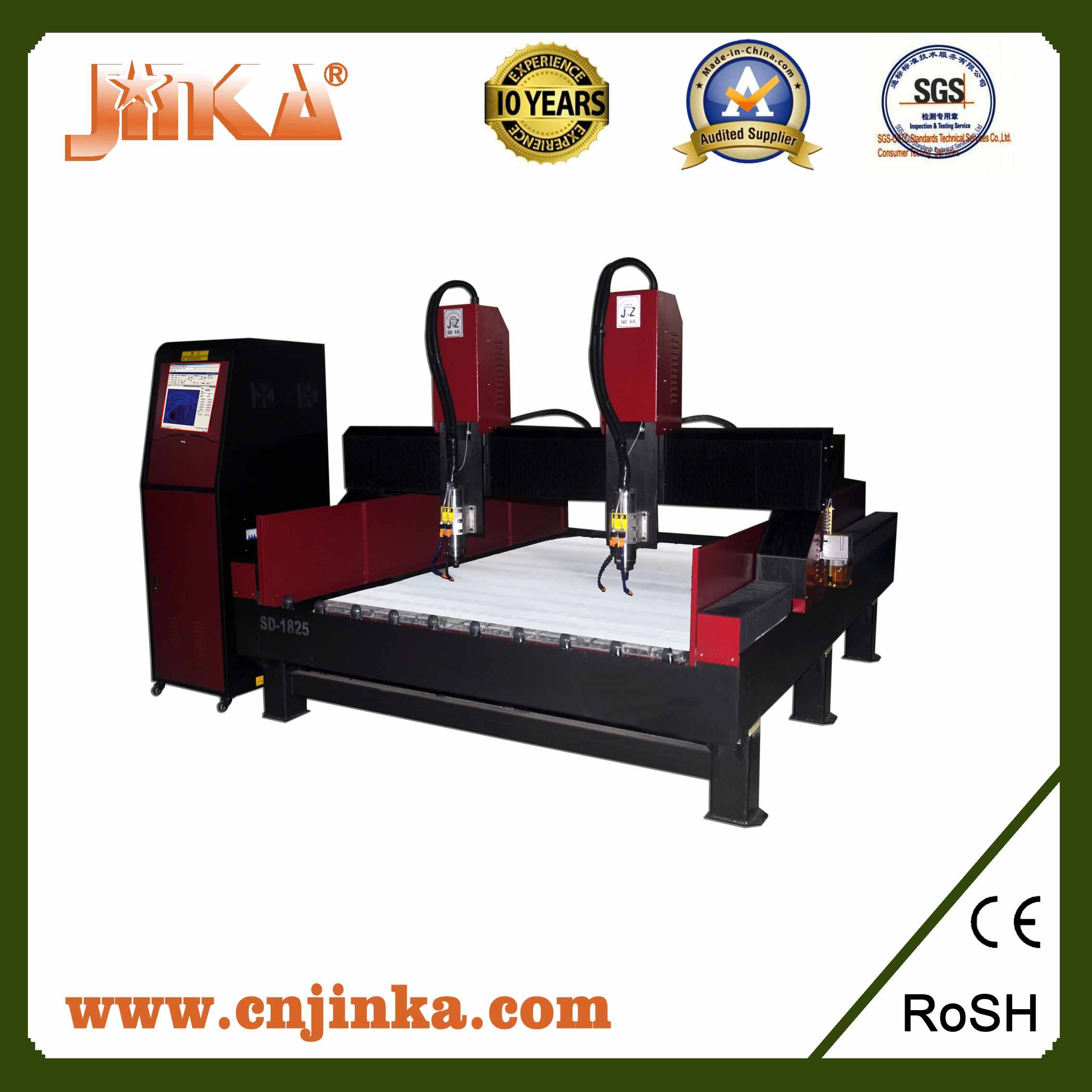

Name: CNC Router / Stone Engraving Machine SD-1825
Brand: china-crystals.com
SKU: 745558095
Availability: InStock
Rating: 4.3 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SD-1825
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Lettering
Application Material:	Marble
Automation:	Semi-automatic
Control:	CNC
Current:	DC
Application:	Stone Industry

Product Description

Machine size can be customize from 1300×1800mm to 1800×2500mm.

Features:
1. Adopting impoted linear square rail ensure heavy loading, stable running,and high precision.
2. Automatic lubricator for option saves maintenance time and extends the lifetime of square rail
3. CNC control system have breakpoint memory, power outages continue carving.
4. Integrated body ensures rigidity and non-deformation.

Application fields:
Marble, granite, blue stone, jade, crystal, gravestone, agate, porcelain, glass,plastic, chemical synthetic board, bamboo, wood, stainless steel, iron, copper, aluminum, titanium alloy.

Technical support:
A. We will supply the machine with training video and user' s manual in English for operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone /MSN /ICQ/Skype and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days
C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It' s better to arrange a translator for both of our engineers during the training period. Training Time: 5~7 days

Model item	SD-1825
Technical data	Working Area	1800× 2500mm
	Feeding heigh	200mm
	Idle speed	20m/min
	Processing speed	10m/min
	Max. jog feedrate	16m/min
	Rotary rate	6000~24000rpm/min
	Working voltage	AC220V/50Hz or AC380V/50Hz
	File forma	G code/HPGL
	Positioning precision	± 0.05mm
	Repeat precision	± 0.02mm
	Engraving tool	3.175/4/6/12.7mm

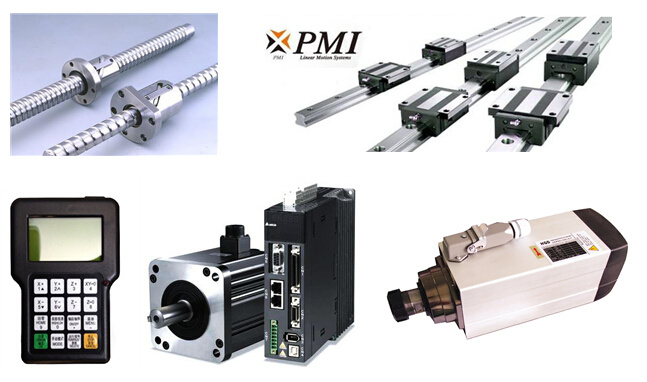

Configuration	Standard construction	Heavy-duty all welded frame
		X/Y axis rack and pinion drive
		Single Z axis drive by ball csrew
		PMI Linear square rail
		T-slot aluminum table with water tank
	Spindle	Frequency adjustable water cooling spindle(2.2kw, 3kw, 4.5kw, 6kw)
	Drive system	Stepping Motor and drivers
	Control system	Copied NC studio controllor
	Lubrication	Automatic lubrication
	Cooling system	Water pump cooling system
Optional:	Construction	Double Z axis with multiple spindle
		Add PVC board on the working surface


	Drive system	AC Servo Motor: Panasonic / Yaskawa / Maxsine
	Control system	NC studio PCIMC controllor / DSP(128M)
	Cooling system	Industrial cooling system
	Other equipment	Dust cover
	Other equipment

Our company information:

Our service:

FAQ:

1.How could I get more informations from you?
You could send email,fax or phone us,told us what informations you want(such as air/sea freight,prices and

so on),we will reply you in time,then you will know better about our CNC machine and service.

2.Why we have to buy cutting plotter from you?

We are one of the largest and best manufacture of CNC machine in China. We have many year's experience

in producing CNC machine equipments,the quality and prices of our machines/materials are superior to others.

And we have specialized marketing group and technical team, we could provide the best service,advice to you.

3.How can I receive your goods?
? If you order little quantities(below 100KG)you could use DHL,TNT,UPS or other air express company to

delivery your goods,delivery time usually 3-4 working days,they will send the products to your address.

? If you order large quantities,you could use sea delivery,and you need to go to your nearest seaport to take

your goods,delivery time usually 30-40days.For more details,please contact with us.

4.Way of payment.
We accept the T/T,Western Union,paypal. When we receive your payment,we will prepare your goods and

send to you in time. If you order large quantities,you could pay 30% deposit to us,when all the goods ready,

we will take photos for you to check it.For more details,please contact with us.

5.How become your sole agent?
When you reach our request quantities,you could become our CNC machine sole agent in your country.

For more details,please contact with us.

Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.

The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in oversea marketing. Such as in Southeast Asia, Europe, America and Africa.

We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
