Product Specifications
| Prod Model: |
OD-1325S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300*2500*300mm |
| Spindle: |
4.5~7.5kw Water Cooled Spindle |
| Motor: |
Servo Motor or Stepper Motor |
| Control System: |
Ncstudio /DSP Hand Controller |
| Software Ware: |
Artcam /Type3 |
| Warranty Time: |
1 Year |
| Delivery Time: |
15 Days |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

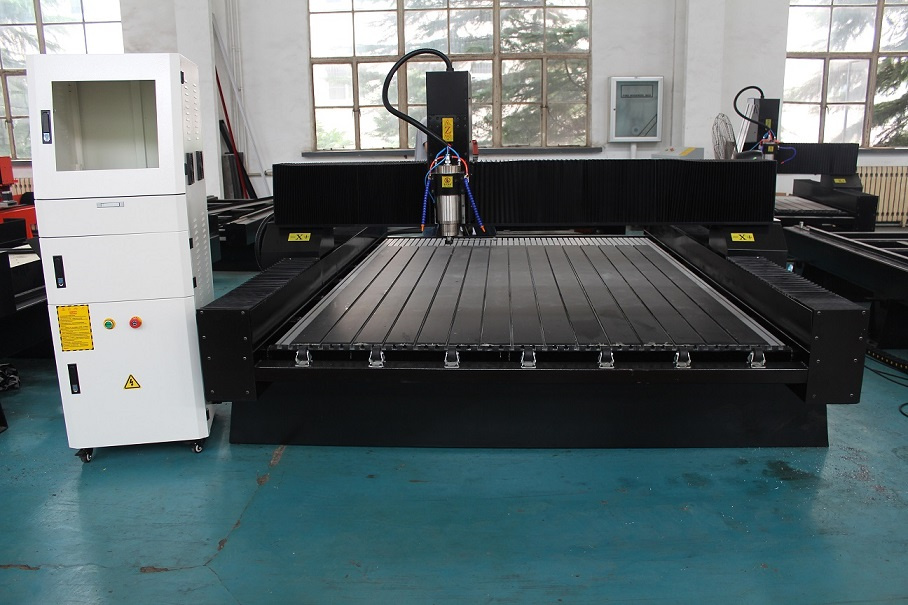

CNC Router for carving granite
Application Materials :
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper, wood, MDF, hardwood, plywood and so on.
Application Industries :
Applications:
Advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
N | parameters description |
| parameters |
|
| X | 1300 mm |
| 1 | Working zone | Y | 2500 mm |
|
| Z | 300 mm |
|
| X | Rack gear and pinion drive |
| 2 | Transmission systems | Y | Rack gear and pinion drive |
|
| Z | Ball screw drive |
|
| X | square linear rails |
| 3 | Guide rails system | Y | square linear rails |
|
| Z | square linear rails |
|
| X | Stepper motor |
| 4 | Drive systems | Y | stepper motor |
|
| Z | stepper motor |
|
| Power | 4.5KW |
|
| Speed | 24000rpm |
| 5 | Spindle | Cooling type | water -cooling |
|
| Origin | China |
|
| Collets | ER20 |
| 6 | Spindle inverter |
| RITUO |
| 7 | Distance from spindle nose to table |
| >= 200 mm |
| 8 | Table size |
| 1680*3000mm |
| 9 | Max travel speed |
| >30m/min |
| 10 | Max engraving speed |
| >10 m/min |
| 11 | Resolution |
| <=0,005 mm |
| 12 | Cutting Accuracy |
| <= 0,05 mm |
| 13 | Repeatability |
| <=0,03 mm |
| 14 | Control systems/Operation system |
| NC studio |
| 15 | software |
| TYPE3/Artcam /Ucancam /JDpaint |
| 15 | Power: |
| AC380V±10% / 50~60Hz |
| 16 | Machine weight kg | 2000KG |
NANJING AUTO E&T Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. Our CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.
Our company produce CNC routers which are sold in various markets of Europe and America. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
