CNC Router Engraver Drilling and Milling Machine for Granite Sculpture
| Price: |
US $ 2400-2600/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
PEM-1218 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Condition: |
New |
| Working Area: |
1200*1800mm |
| Spindle Power: |
3kw |
Product Description

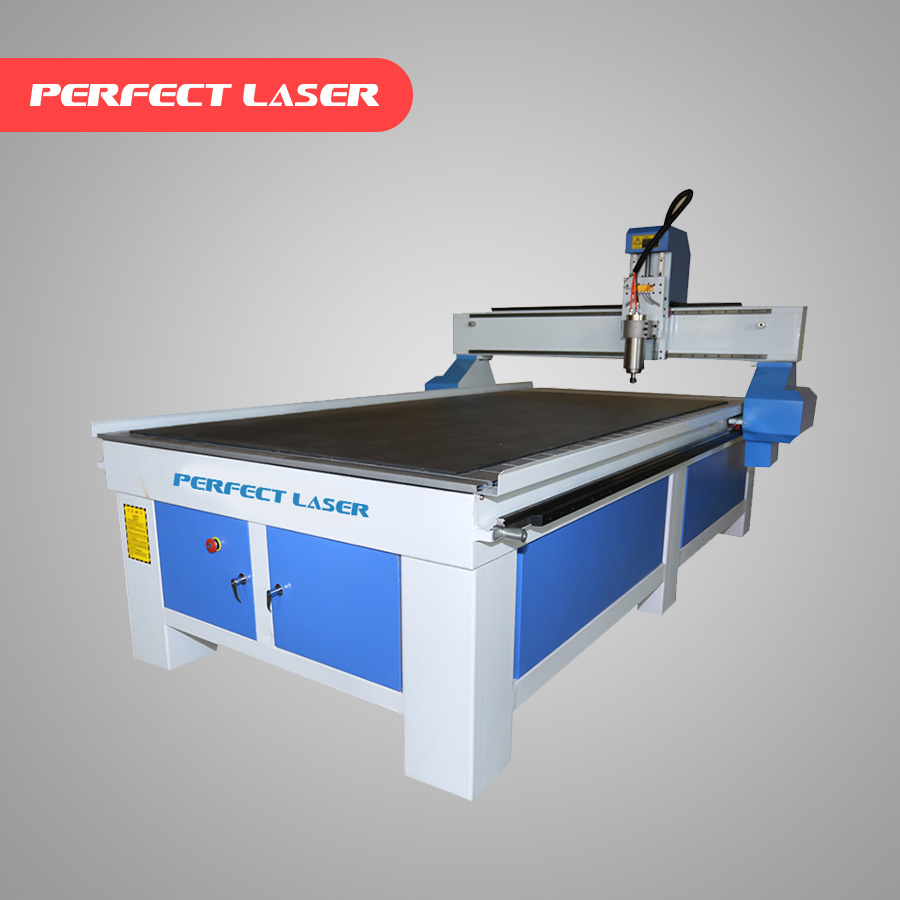

cnc router engraver drilling and milling machine for granite sculpture
(CNC router)
(Model: PEM-1218)
Contact: Lily
Description:Our CNC Router is designed with pure Aluminum, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the engine bed. It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers main sizes of marks and labels in the market. It can cut through Plexiglas with thickness of 20mm one time without trouble and can be applied to large-scale relief, too. It is doubtlessly a perfect product in the range of advertising.
Special Features1) X, Y, Z axis use imported ball bearing guide screws. It's with high precision and fast speed. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for manufacturing labels, construction models and moulds in batches.
2) Advanced DSP digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine.
3) Steady data transmission. The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.
4) Double-nut guide screw. It uses Germany-imported high-precision ball bearing guide screw which can
eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6)No dust oiling structure, guarantee the long term running of the mechanical aspect.
7)Break point and break knife continue engraving function, can engrave at any place as you like.
8) High power frequency changing water cooled spindle, can process hard materials efficiently.
9) High Compatibility, CAD/CAM software such as Type 3/ Art Arm/ Castmate/ Proe/ Coreldraw/ Art Cut.
10) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP)
Technical Parameter:
Model No. | PEM-1218 |
| Working area | 1200*1800mm |
| Power | 1.5kw |
| Price(USD/set) | $2525 |
| Table material | Aluminum Alloy table |
| Maximum feed height | 80mm |
| X,Y,Z Guideway rails type | Round guide rail+ball screw transmission |
| Max Engraving Speed | 4,000-7,000mm/min |
| Resolution ratio | 0.002mm |
| Repetition accuracy | ±0.02mm |
| Spindle power |
2.2kw, 3kw, 4.5kw |
Spindle Rotating Speed |
6000 - 24,000rpm |
Spindle cooling |
Water Cooling |
| Drive motor system | Step Motor and Step Driver |
| Interface |
PCI Port or USB Port |
Memory buffer (Flash) | 128MB |
| Engraving Command | G code, u00, mmg, PLT, HPG |
| Command language system | English Version, Windows 98/2000/XP Operation System |
| Operational Software | Original Type3 Software, ArtCam software or Wentai Software |
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
| Working temperature | 0-45°C |
| Relative humidity | 30% - 75% |
| Notice: We can make some adjustion on the price if we know your exact requirements! |
Except for 1200*1800mm, we also manfuacture other working area cnc routers, such as 600*900mm, 1300*2500mm. Any interest, feel free let me know.
Before making best quotes for you, could you answer following questions:
* What's your material?(wood, acrylic, plastic, stone, metal etc)
* What's your material working area?
* Your material thickness?
* Your country port for checking shipping.
* If the price confirmed, when will you place order?
Welcome to contact us for perfect laser engraving cutting solutionContect me:Perfect Laser Co., Ltd. (China)Contact: Lily / Sales Department
Tel: 0086-27-86791986 MP: 0086-13659889218 Fax: 0086-27-86775865
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
