CNC Cylinder Marble Engraving Machine

Name: CNC Cylinder Marble Engraving Machine
Brand: china-crystals.com
SKU: 789849145
Availability: InStock
Rating: 4.3 (78 reviews)

Price:	US $ 5000-20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	MJ-1325
Working Size:	13002500300mm
Spindle:	4.5~7.5kw Water Cooled Spindle
Motor:	Servo Motor or Stepper Motor
Control System:	Ncstudio /DSP Hand Controller
Software Ware:	Artcam /Type3
Warranty Time:	1 Year
Delivery Time:	15 Days

Product Description

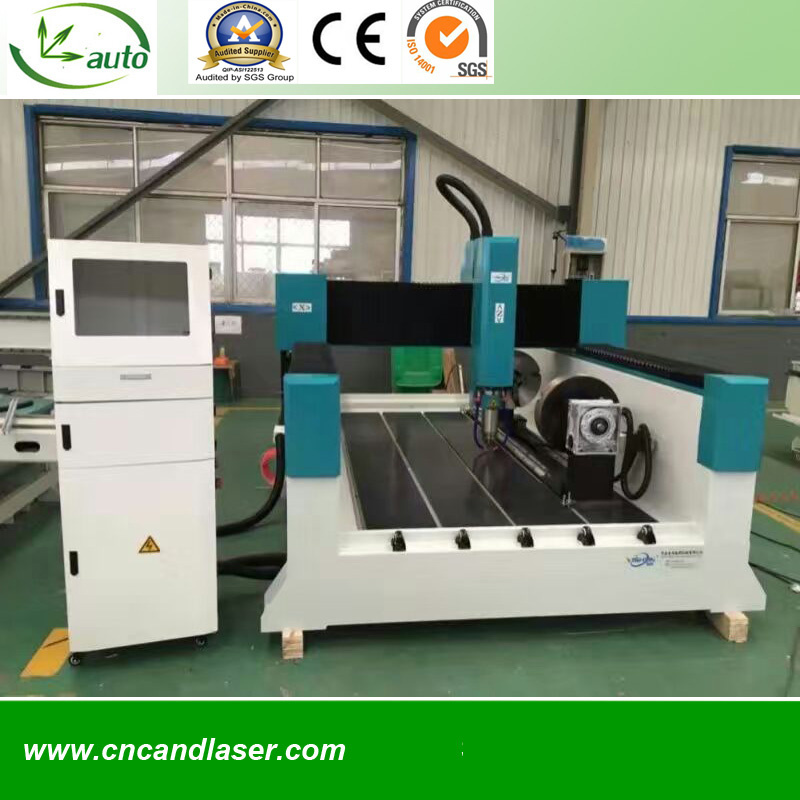

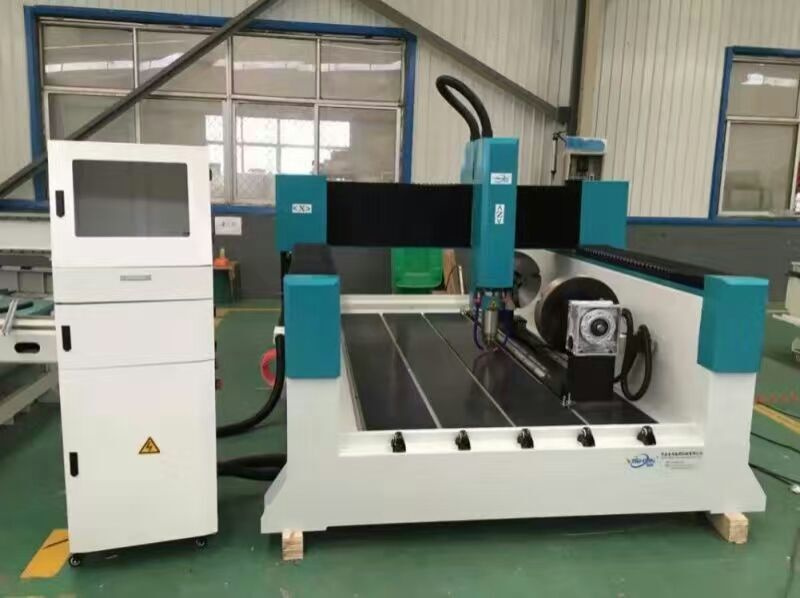

Cnc Cylinder Marble Engraving Machine

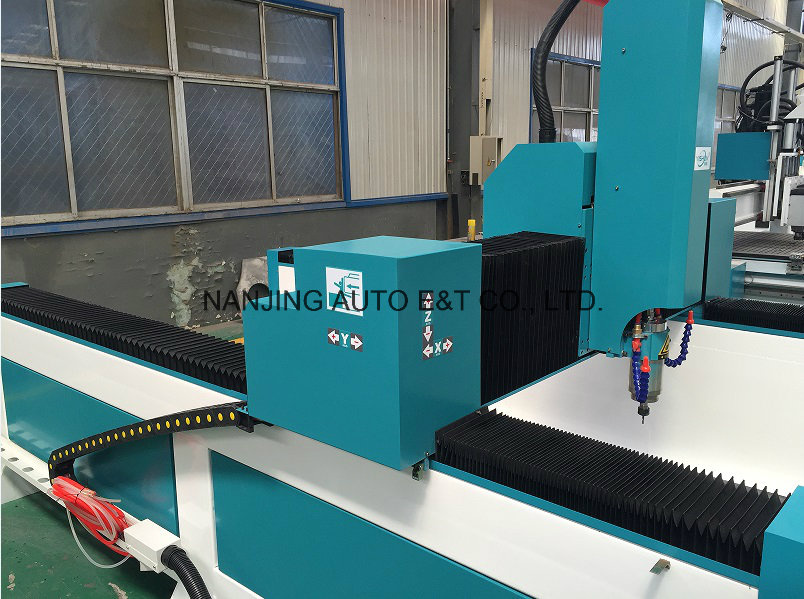

1. Heavy duty T-slot machine body, larger loading capacity.

2. X Y Z uses 25mm HIWINlinear square guide rail from TAIWAN

3. Z axis use 25mm hign precision ball screw and can avoid spindle suddenly up and down.

4. We use high voltage and high torque stepper motor and stepper driver, which is much more powerful than the normal stepper driver.
5. Chinese Fuling inverter control the spindle speed.

6. Adopt Qiancheng 5.5KW water cooling spindle, which is suitable for long time and high temperature working.

7. Uses NCstudio control system, easy and convenient to operate.

8. Max. speed is able to reach 20m/min.

Application Materials :
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper, wood, MDF, hardwood, plywood and so on.
Application Industries :

Suitable for Curb & Paving Stone Forming industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.

specification

N	parameters description		parameters
		X	1300 mm
1	Working zone	Y	2500 mm
		Z	300 mm
		X	Rack gear and pinion drive
2	Transmission systems	Y	Rack gear and pinion drive
		Z	Ball screw drive
		X	square linear rails
3	Guide rails system	Y	square linear rails
		Z	square linear rails
		X	stepper motor
4	Drive systems	Y	stepper motor
		Z	stepper motor
		Power	4.5KW /5.5KW
		Speed	24000rpm
5	Spindle	Cooling type	water -cooling
		Origin	China
		Collets	ER25
6	Spindle inverter		RITUO
7	Distance from spindle nose to table		>= 200 mm
8	Table size		1680*3000mm
9	Max travel speed		>30m/min
10	Max engraving speed		>10 m/min
11	Resolution		<=0,005 mm
12	Cutting Accuracy		<= 0,05 mm
13	Repeatability		<=0,03 mm
14	Control systems/Operation system		NC studio
15	software		TYPE3/Artcam /Ucancam /JDpaint
15	Power:		AC380V±10% / 50~60Hz
16	Machine weight kg		2000KG

NANJING AUTO E&T Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. Our CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.

Our company produce CNC routers which are sold in various markets of Europe and America. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
