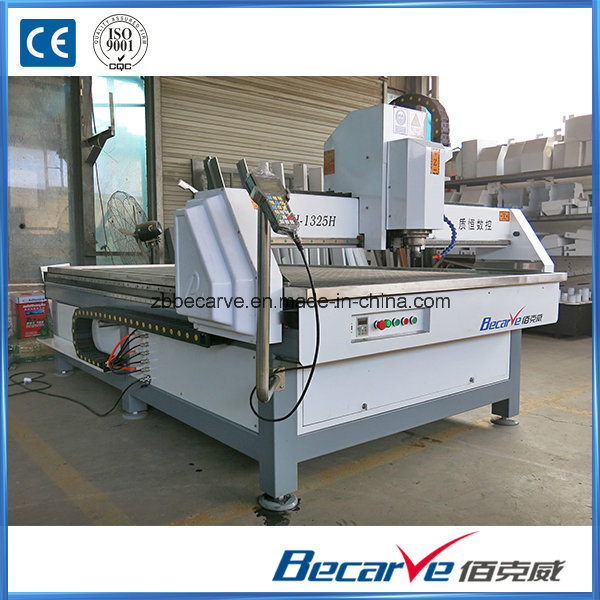

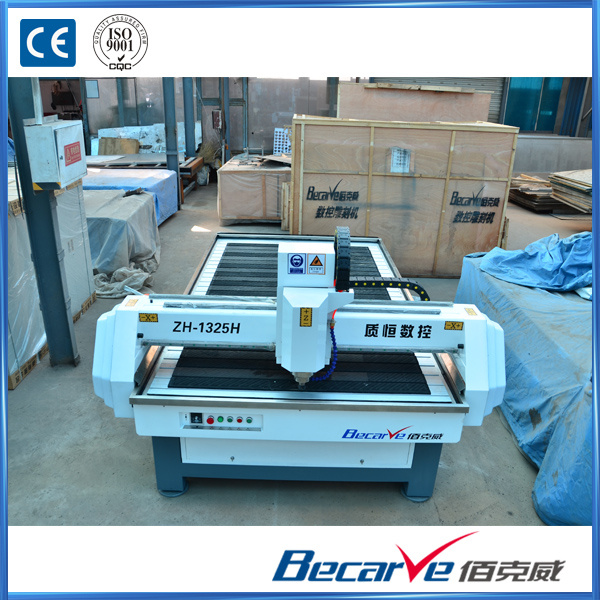

CNC Cutting Wood Lathe (zh-1325h)
| Price: |
US $ 6000-7300/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ZH-1325H |
| Weight: |
1000kg |
| Spindle Power: |
4.5kw |
| Spindle Speed: |
0-24000r/Min |
| Resolution: |
0.05mm |
| Operating Voltage: |
AC220V/50Hz |
| Max Speed Of Running: |
20m/Min |
| Max Speed Of Engraving: |
10m/Min |
| Platform Size: |
1620*3070mm |
| Max Feed Thickness: |
100mm |
| Warranty: |
1year |
Product Description
CNC Cutting wood lathe (zh-1325h) Feature: 1. Multi-spindle special design for wood cutting and relief.
2. Hiwin or PMI guild rail
3. NC studio control system
4. Dust proof for Y axis.
Application: 1. Woodworking industry: three-dimensional wave board processing,cabinet door, craft wooden door,
folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo
making, acrylic cutting, plastic molding,characters, crystal cutting, plate making, cutting PVC board,
acrylic,LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as
material for a variety of exquisite design and text on the sculpture. Configuration as you require: control system, motor, spindle and so on.
Performance :| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1300mm | as your require |
| | | Y | 2500mm | as your require |
| | | Z | 120mm | as your require |
| 2 | Table size | | 1300mm*2500mm | |
| 3 | Accuracy | Working precision | 0.05mm | |
| | | Repositioning precision | 0.1mm | |
| 4 | Drive mode | X axis | Linear guide and rack pinion | |
| | | Y axis | Linear guide and rack pinion | |
| | | Z axis | Ball screw | |
| 5 | Speed | Max motion speed | 20000mm/min | |
| | | Max engraving speed | 15000mm/min | |
| 6 | Spindle | Spindle power | 4.5KW | |
| | | Spindle speed | 0-24000r/min | |
| 7 | Drive mode | | Stepper | |
| 8 | Operating voltage | | AC220V/50HZ (as your require) | |
| 9 | Operating system | | Genuine NC STUDIO | |
| 10 | Machine weight | | 1000KG | |
| Optional | Yaskawa servo, Panasonic servo, Estun servo |
| Vacuum table |
| Vacuum pump |
| Dust collector |
| Dust proof |
| Air cooling spindle or water cooling spindle |
| Rotary system |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support
and service by email/fax/ tel and lifetime technical support
If you have specific requirement for woodworking engraving machine CNC router, customization is available.
Main products:1.ZH-1325H cnc machine2.ZH-1325L cnc machine3.ZH-1325IIA cnc machine4.ZH-S1000 cnc machine5.ZH-S3000 cnc machine6.ZH-1325V cnc machine7.ZH-1325S cnc machine8.ZH-4015Y4T cnc machine9.Acrylic Transparent Teching Machine10.Laser Welding MachineExhibition:
Package:1. Wooden case2.According to the requirement of customersFAQ:
1. Is OEM available?Yes, OEM is available. We have professional designer to help your brand promotion. 2. Is the sample available?Yes, samples are available for you to test the quality.3. Have the products been tested before shipping?Yes, all of our bearings have been tested before delivery.4. What's benefit will you bring?Your clients will be satisfied of the quality.
Your clients continue orders.
Your can get good reputation from your market and obtain more orders.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our company adheres to the business philosophy of 'reliable quality, reasonable price, permanent security'; Insisting on the business strategy of 'the inner management, external word-of-mouth, first-rate service, constant innovation'; Promoting new scientific and technological achievements with high quality products, good reputation, and high-quality after-sale service; Considering the customers' benefit. Doing all of the above, our company not only take a bigger market share, but also obtains the customers' and the cooperative partners' trust.
Product Introduction: Becarve CNC router 1325 series, such as1325-H, 1325-V, are applicable for various metal and non-metal sheets cutting, milling and engraving utilized and required in advertising and upholster industry. The working table dimension of this series is 1300mmX2500mm which is the maximum size for applicable sheet.
