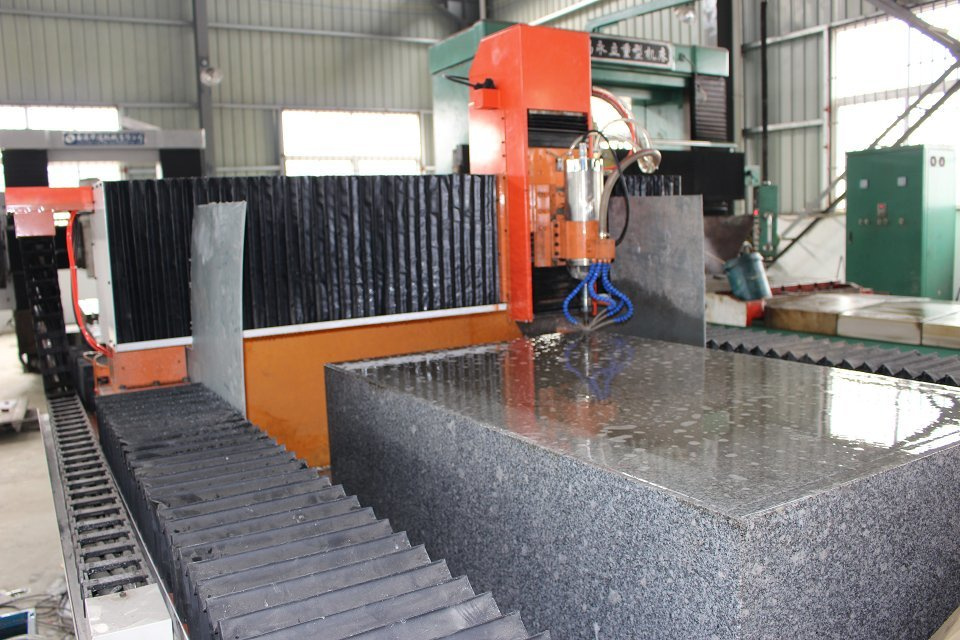

CNC 3D Stone Engraving Machine Stone Carving CNC Machine

CNC 3D Stone Engraving Machine Stone Carving CNC Machine
Price: US $ 5000-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Product Specifications


Prod Model: OD-1325S
Working Zone: 1300*2500*300mm
Spindle: 4.5~7.5kw Water Cooled Spindle
Motor: Stepper Motor or Servo Motor
Control System: Ncstudio/DSP Hand Controller
Delivery Time: 15 Days
Warranty Time: 1 Year
Spindle Layout: Spindle Over
Spindle Number: Single-Spindle
Feed Mode: Manual
Controlling Mode: CNC
Certification: CE

Product Description

CNC 3D Stone Engraving Machine  Stone Carving CNC Machine
1.Easy to use,better to learn.
2.Adopt to high quality spare parts, and will offer you well service
3.Design from Morn,service for the whole world
Standard machine configuration:
1). Spindle: 4.5kw water cooling spindle
2). Control:  DSP A11 control system
3). Drive system: Leadshine driver and motors
4). Guide rail: Taiwan HIWIN square guide rail
5). Table: T-slot worktable
Detailed information of machine parts:
Application Materials :
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper, wood, MDF, hardwood, plywood and so on.
Application Industries :

Suitable for Curb & Paving Stone Forming  industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.

N
Parameters description Parameters
  X1300 mm
1Working zoneY2500 mm
  Z300 mm
  XRack gear and pinion drive
2Transmission systemsYRack gear and pinion drive
  ZBall screw drive
  XSquare linear rails
3Guide rails systemYSquare linear  rails
  ZSquare linear rails
  XPanasonic Servo motor with speed reducer
4Drive systemsYPanasonic servo motor  with speed reducer (Two motors)
  ZPanasonic servo motor  with speed reducer
  Power4.5KW
  Speed24000rpm
5SpindleCooling typeWater -cooling
  OriginChina
  ColletsER20
6Spindle inverter RITUO
7Distance from spindle nose to table >= 200 mm
8Table size 1680*3000mm
9Max travel speed >30m/min
10Max engraving speed >10 m/min
11Resolution <=0,005 mm
12Cutting Accuracy <= 0,05 mm
13Repeatability <=0,03 mm
14Control systems/Operation system NC studio
15Software TYPE3/Artcam /Ucancam /JDpaint
15Power: AC380V±10% / 50~60Hz
16Machine weight                                                       kg2000KG


NANJING AUTO E&T Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. Our CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.

Our company produce CNC routers which are sold in various markets of Europe and America. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
