CNC 3D Camless Spring Forming Machine
| Price: |
US $ 90000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
HR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and White |
Product Description

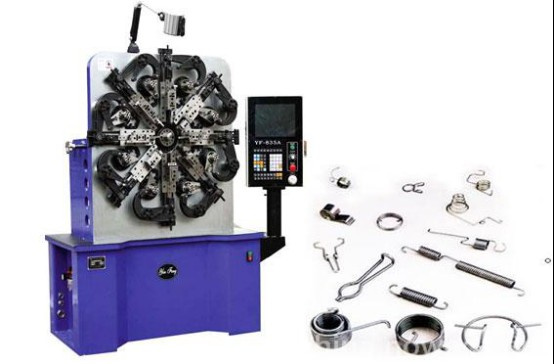

12R Camless Spring Forming Machine

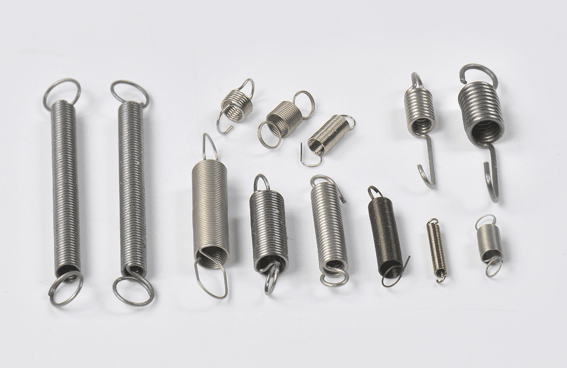

This camless spring forming machine can be used to produce every kinds of straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, fancy spring, deformed spring, and various kinds of wire forming etc.
I Advantage:- This camless machine adopts standardized quills to ensure quick and easy installation of the machine.
- Besides the advantage of traditional coiling machine, one set free axis allow up-down and left-right action freely for producing more tough jobs with easy operation, high output and high accuracy.
- Imported servo motors and planetary reducer are equipped to ensure accurate running of the machine and achieve same technical level of European prototypes.
- Standardized guide design keeps each axis running with high accuracy and stability and consequently, to lower the maintenance cost.
- New connecting bar adjustment design helps testing job easier and accurate running, with strong rigidity an less heat generated.
II Main technical data:| | Model | BO45-12R |
| 1 | Wire size | Φ1.2- Φ4.5mm |
| 2 | Mar. wire Feed | 10000mm |
| 3 | Min. wire Feed | 0.01mm |
| 4 | Wire feed speed | 0-100m/min |
| 5 | Wire length | unlimited |
| 6 | Axis number | 12 |
| 7 | power | 20.3kw |
| 8 | The input voltage | 380V |
| 9 | Program storage | More than 2000 |
| 10 | Air pressure | 5-6kg/cm |
| 11 | Probe | 3 |
| 12 | Size | 2150x1900x2070mm |
| 13 | Weight | 3800kg |
AUTOMATIC COMPUTER WIRE FORMING MACHINE
This machine can be used to produce every kinds of straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, fancy spring, deformed spring, and various kinds of wire forming etc. | | Item | 845 |
| 1 | Wire size | Φ1.0- Φ4.5mm(IronΦ1.0- 6.0mm) |
| 2 | Feeding length | MaxΦ80mm |
| 3 | Outside diameter | ±0.01~±9999.99 |
| 4 | Wire feed speed | 0-60m/min |
| 5 | Cam setting value | ±0.10º~±359.90º |
| 6 | Cam rotation speed | 1~60RPM |
| 7 | Motor wire feed | 5.5kw |
| 8 | Motor cam | 5.5kw |
| 9 | Motor axis | 1.5kw |
| 10 | Power AC | 380V±10%V50HZ |
| 11 | Dimensions | 1320x730x1720mm |
| 12 | Weight | 2200KG |
For anything of the machine, please feel free to contact me.
