Product Specifications
| Prod Model: |
CMC-3 |
| CAS No.: |
9004-32-4 |
| Mf: |
C8h11o7na |
| Classification: |
Chemical Auxiliary Agent |
| Appearance: |
Powder |
| Usage: |
Oil Drilling/ Coating/ Detergent |
| Color: |
White |
Product Description

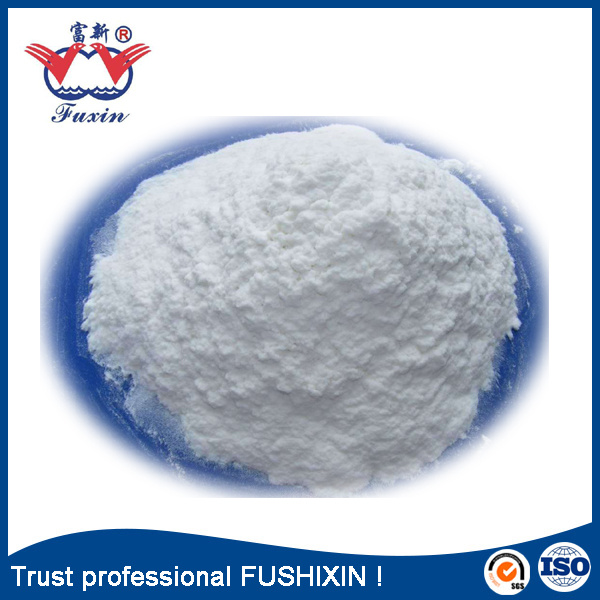

CMC Hv Powder Sodium Carboxy Methyl Cellulose
CMC can be used in many industries, such as oil drilling, food activitive, ceramic, paper making, detergent, mining, texile, coating, toothpaste, batterry, welding rod, mosquito-repellent incense, pharmaceutical etc. And FUSHIXIN is specialized in cmc, we can provide all kinds of good quality grade of CMC.
1. FOOD GRADE CMC
| TYPE | Viscosity (mPa.s) | PH Value | Degree of Substitution | Chloride (Cl-% | Loss on Drying % | Sieving Rate(%)(80 mesh) |
| Min. | Max. | Soln.(%) | Min. | Max. | Min. | Max. |
| FL9 | 110 | 144 | 2 | 6.5 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FM9-1 | 550 | 1350 | 2 | 6.5 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FM9-2 | 1650 | 2250 | 2 | 6.5 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FH9 | 330 | 450 | 1 | 6.5 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FVH9-1 | 660 | 900 | 1 | 6.0 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FVH9-2 | 1100 | 1350 | 1 | 6.0 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FVH9-3 | 1870 | 1980 | 1 | 6.0 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FVH9-4 | 2200 | 2250 | 1 | 6.0 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FVH9-5 | 2750 | 3150 | 1 | 6.0 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FVH9-6 | 2850 | 4500 | 1 | 6.0 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FM6 | 1100 | 1800 | 1 | 6.5 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
| FH6 | 330 | 450 | 1 | 6.5 | 8.5 | 0.95 | / | ≤1.2 | ≤9 | ≤98.0 |
Used as additive in food field, CMChas the functions of thckening, suspending, emulsifying, stabilizing, shaping, filming, bulking, anti-corresion, retainning freshness, acid-resisting, health protcting, etc. It can replace the application of guar gum, gelatin, agar, sodium alginate, and pectin, It is widely used in modern food industry, such as frozen food, solid drink, fruit juice, jam, lactic acid drinks, condiment, biscuit, instant noodles, bakery products, meet products, etc.
Our food grade CMC has good tickening property, water retention, dispersion stability, filming and chemical stability. It has high viscosity even in low concentration, and makes the food tatse delicate and smooth; it can reduce the syneresis of food and extend the shelf life, it can control the crystal sizein frozen food and prevent the stratification between oil and water; in acid system, our anti/acid products have good suspending stability, so it can improve the stability of milk and the impedance ability of protein;, our CMC can be used together with other stabilizers and emulsifiers to complement each other, strengthen each other's effect and reduce and cost.
2. CERAMIC GRADE CMC
| TYPE | Viscosity (mPa.s) | PH Value | Degree of Substitution | Loss on Drying % |
| Min. | Max. | Soln.(%) | Min. | Max. | Min. | Max. |
| FH9 | 330 | 450 | 1 | 6.5 | 8.5 | 0.90 | / | ≤9 |
| FVH9-1 | 660 | 900 | 1 | 6.0 | 8.5 | 0.90 | / | ≤9 |
| C1002 | 330 | 450 | 1 | 6.5 | 8.5 | 0.98 | / | ≤9 |
| C1592 | 660 | 810 | 1 | 6.5 | 8.5 | 0.90 | / | ≤9 |
| C0492 | 440 | 810 | 2 | 6.5 | 8.5 | 0.90 | / | ≤9 |
| C1583 | 715 | 900 | 1 | 6.5 | 8.5 | 0.80 | / | ≤9 |
| C1074 | 880 | 1170 | 1 | 6.5 | 9.0 | 0.70 | 0.8 | ≤9 |
| C0692 | 935 | 1800 | 2 | 6.5 | 8.5 | 0.90 | / | ≤9 |
| C0464 | 1100 | 2700 | 2 | 6.5 | 10.0 | / | / | ≤9 |
| C2081R | 1980 | 2070 | 1 | 6.0 | 8.5 | 0.83 | 0.9 | ≤9 |
| C3081R | 2530 | 2700 | 1 | 6.0 | 8.5 | 0.83 | 0.9 | ≤9 |
| IH7 | 990 | / | 1 | 6.5 | 9.0 | 0.68 | / | ≤9 |
| IH8 | 385 | 540 | 1 | 6.5 | 9.0 | 0.80 | 0.9 | ≤9 |
| IVH8 | 880 | 1170 | 1 | 6.5 | 9.0 | 0.78 | 0.9 | ≤9 |
| OM6 | 440 | 540 | 2 | 7.0 | 10.5 | / | / | ≤9 |
| C1215 | 1320 | 1350 | 1 | 6.5 | 8.5 | 0.90 | / | ≤9 |
| P600 | 550 | 650 | 2 | / | / | / | / | / |
| P800 | 750 | 900 | 2 | / | / | / | / | / |
CMC can be used in ceramic body, glazing pulp, and decoration, Used in ceramic body, it is a good strengthening agent, which can strengthen the mouldability of mud and sand materials, help the shaping of the base and increase the folding strength of the green body. Used in glazing pulp and decoration, it is a binder that plays a role of suspending, uncoagulating, and keeping water.
3. PETROLEUM DRILLING GRADE PAC& CMC
A. Polyanionic Cellulose (PAC)
| Technical Specifications of PAC for Drilling Fluid | | | | | |
| TYPE | Viscosity (mPa.s) | Filtration (ml) | PH Value | Degree of Substitution | Loss on Drying % | Puirity (%) |
| Min. | Max. | Soln.(%) | | Min. | Max. | Min. | Max. |
| FL9 | 110 | 144 | 2 | | 6.5 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FM9-1 | 550 | 1350 | 2 | | 6.5 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FM9-2 | 1650 | 2250 | 2 | | 6.5 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FH9 | 330 | 450 | 1 | | 6.5 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FVH9-1 | 660 | 900 | 1 | | 6.0 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FVH9-2 | 1100 | 1350 | 1 | | 6.0 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FVH9-3 | 1870 | 1980 | 1 | | 6.0 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FVH9-4 | 2200 | 2250 | 1 | | 6.0 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FVH9-5 | 2750 | 3150 | 1 | | 6.0 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FVH9-6 | 2850 | 4500 | 1 | | 6.0 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FM6 | 1100 | 1800 | 1 | | 6.5 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
| FH6 | 330 | 450 | 1 | | 6.5 | 8.5 | 0.95 | / | ≤9 | ≤98.0 |
PAC & CMC can be used in drilling fluid, fixing fluid and fracturing fluid. In drilling fluid, it works as viscosifier, filtration reducer, and rheology controller; in fixing fluid, it is used to control fluid viscosity, suspend heavy objects, and avoid fluid loss; in fracturing fluid, it is used to carry stuffing and avoid fluid loss.
B. sodium Carboxymethyl Cellulose (CMC)
| Technical Specifications of HV-CMC, LV-CMC | | | |
| Specifications | Performance Test |
| Items | Indicators |
| In distilled water | In salt water | In saturated water |
| Base Mud | Filtration (ml) | 60±10 | 60±11 | 60±12 |
| Apparent Viscosity (CPS) | ≤6 | ≤6 | ≤6 |
| PH Value | 8.0±1.0 | 8.0±1.0 | 7.5±1.0 |
| HV-CMC | Yield of 15CPS (m3/t) | ≥160 | ≥130 | ≥140 |
| LV-CMC | Filtration: 10ml/h | Addition (g/l) | / | ≤7.0 | ≤10 |
| Apparent Viscosity (CPS) | / | ≥4 | ≤6 |
| Remarks | The performance test of HV-CMC as per OCMA DFCP-7 methods. |
| The performance test of LV-CMC as per OCMA DFCP-2 methods. |
| Technical Specifications of CMC-HVT, CMC-LVT | | |
| Type | Viscometer dial reading at 600r/min | Filtration (ml) |
| | In distilled water | In 40/L salt water | In saturated salt water | In Filtration (ml) |
| CMC-HVT | ≥30 | ≥30 | ≥30 | ≤10 |
| CMC-LVT | ≤90 | ≤10 |
| Remarks | Conforms to API Spec. 13A test methods |
| Technical Speifications of CMC for Fracturing Fluid | | | | |
| Type | Vicosity (mPa.s) | PH Value | Degree of Substitution | Loss on Drying(%) | Purity(%) |
| Min. | Max. | Soln.(%) | Min. | Max. | Min. | Max. | |
| CMC9-5000 | 5000 | 6000 | 1 | 6.5 | 9 | 0.90 | / | ≤10 | ≥90 |
| CMC9-6000 | 6000 | 7000 | 1 | 6.5 | 9 | 0.90 | / | ≤10 | ≥90 |
| CMC9-7000 | 7000 | 8000 | 1 | 6.5 | 9 | 0.90 | / | ≤10 | ≥90 |
4. PAPER MAKING GRADE CMC
| Type | Viscosity (mPa.s) | pH Value | Degreee of Substitution | Purity(%) | Loss on Drying % |
| Min. | Max. | Soln.(%) | Spindle No. | Speed (rpm) | Min. | Max. | Min. | Max. |
| PL-5 | 5 | 10 | 2 | 1 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | As per customer's requirements (≥95or≥98) | ≤10 |
| PL-10 | 5000 | 7000 | 2 | 1 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | ≤10 |
| PL-30 | 7000 | / | 2 | 1 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | ≤10 |
| PL-50 | 100 | 250 | 2 | 1 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | ≤10 |
| PL-200 | 5000 | 7000 | 2 | 2 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | ≤10 |
| PL-600 | 200 | 400 | 2 | 2 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | ≤10 |
| PM | 300 | 500 | 2 | 2 | 60 | 6.0 | 8.5 | 0.65 | 0.85 | ≤12 |
| PAC-20 | / | 100 | 4 | 2 | 60 | 6.5 | 8.5 | 0.8 | 0.85 | ≥98 | ≤8 |
| QX-5 | 33 | 90 | 4 | 1 | 60 | 6 | 8.5 | 0.8 | 0.9 | ≥98 | ≤8 |
| QX-10 | 110 | 180 | 4 | 2 | 60 | 6 | 8.5 | 0.8 | 0.9 | ≥98 | ≤8 |
| QM8-1 | 550 | 1170 | 2 | 2 or 3 | 60 | 6 | 8.5 | 0.7 | 0.9 | ≥98 | ≤8 |
In paper making industry, CMC is used to make the paint for coated pater, as additive in wet-end and sizing agent for surface. We have different paper making grades of CMC products to satisfy different customers' requirements.
5. MINING GRADE CMC
| Type | Viscosity (mPa.s) | pH Value | Degreee of Substitution | Purity(%) | Degree of Loss on Drying % |
| Min. | Max. | Soln.(%) | Min. | Max. | Min. | Max. |
| O16 | 100 | 250 | 2 | 6.0 | 10 | ¥0.70 | 0.8 | / | ≤10 |
| OH6 | 5000 | 7000 | 2 | 6.0 | 10 | ¥0.70 | 0.8 | / | ≤10 |
| OVH6 | 7000 | / | 2 | 6.0 | 10 | ¥0.70 | 0.8 | / | ≤10 |
| OL9 | 100 | 250 | 2 | 6.0 | 10 | ¥0.85 | / | / | ≤10 |
| OH9 | 5000 | 7000 | 2 | 6.0 | 10 | ¥0.85 | / | / | ≤10 |
| OL6-A | 200 | 400 | 2 | 6.0 | 8.5 | ¥0.70 | 0.8 | ≥98 | ≤10 |
CMC is used in mining industry as pallet binder and floating selection inhibitor. CMC is a component of the binder for mineral dust shaping, and the binder is an indispensable ingredient in pallet forming. It can improve the character of wet pellet. CMC is adjusting agent in floating selection process, it is used as silicate gangue inhibitor, controlling the lead in copper and lead separating, sometimes, it is used as dispersant for mineral mud.
6. OHTER GRADE
| Technical Specifications of Other Industrial Grade CMC | | | | |
| Type | Viscosity (mPa.s) | PH Value | Degree of Subsftitution | Loss on Dring % |
| Min. | Max. | Soln.(%) | Viscometer | Min. | Max. | Min. | Max. |
| Im6 | 300 | 800 | 2 | NDJ-79 | 6 | 9 | 0.6 | 0.85 | ≤10 |
| IH6 | 800 | 1200 | 2 | NDJ-79 | 6 | 9 | 0.6 | 0.85 | ≤10 |
| IVH6 | 1200 | / | 2 | NDJ-79 | 6 | 9 | 0.65 | 0.85 | ≤10 |
| T18-S | 1200 | / | 2 | NDJ-79 | 6 | 8.5 | 0.65 | 0.85 | ≤10 |
The Specifications Sheet for Industry Grade (used in textile, printing and dye, detergent, paint, toothpaste, pharmaceutical, glue and adhesive, welding, battery, construction materials, tobacco, mosquito-repellent incense. etc)
REMARKS: CUSTOMIZED SPECIFICATION OF CMC IS AVAILABLE.

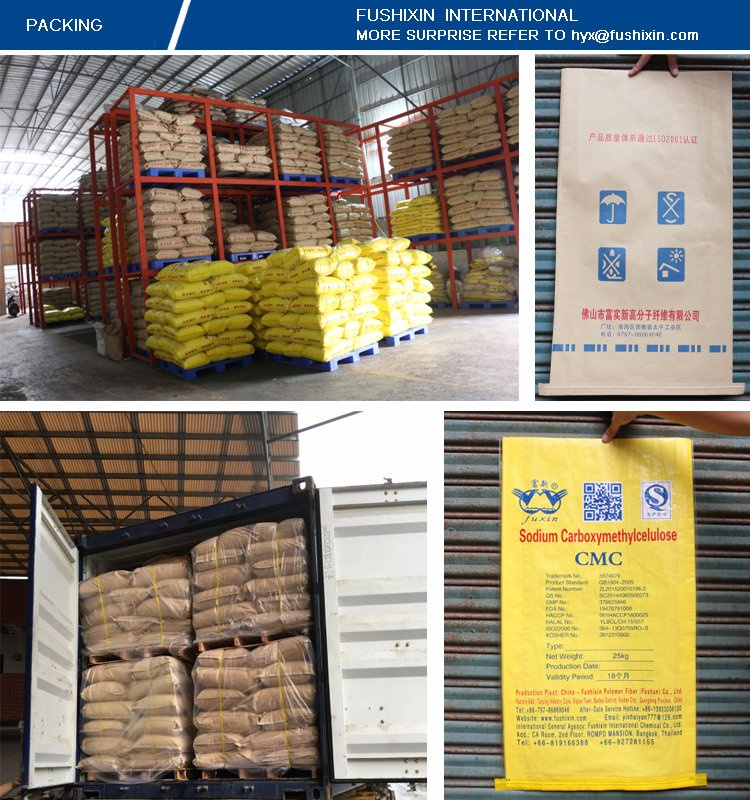

* Standard 25KG/ BAG or Jumbo bag is available
* Material of bag: Bland kraft paper bag/ customiezed bag/ regular bag of FUSHIXIN
* Pallet loading is available
We take part in many exhibitions every year, druring which we have the opportunity to meed old and new customers. We are confident to show our products all over the world.

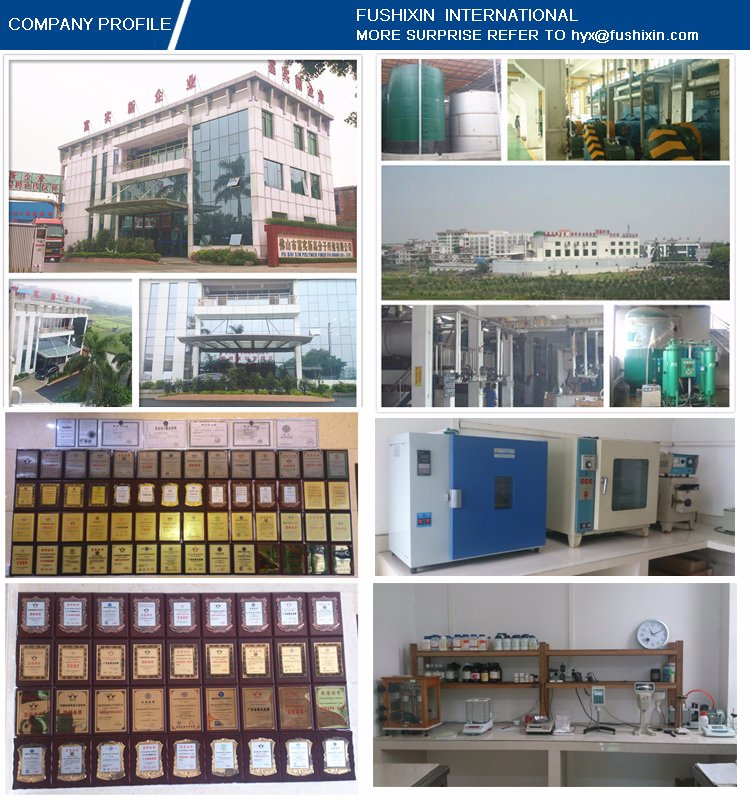

Fushixin Polymer Fiber (Foshan) Co., Ltd. was established in 2002, locates in Nanhai, Foshan, Guangdong, is a high-tech enterprise which intergrates the research, production and application of CMC (Sodium Carboxymethyl Cellulose), PAC (Polyanionic Cellulose), HPMC (Hydroxypropyl Methyl Cellulose), HEMC (Hydroxyethly Methyl Cellulose ), CMS (Carboxymehtyl Starch) and other cellulose ethers.
Fushixin Polymer Fiber (Foshan) Co., Ltd. has a powerful processing ability of cellulose, develops and utilizes new technology to explore more market opportunities, takes advantage of the integral superiority of modern chemical industry, adopts the latest technology, materials and equipments. Our company is qualified with ISO9001:2008, ISO22000:2005, QS, HALAL, KOSHER, HACCP, FDA, GMP certificates.
The application of our products covers ceramics, oil drilling, fracturing, food, toothpaste, detergent, mining, papermaking, textile printing and dyeing, building materials, battery, welding, etc. We produce the cellulose powder or granulated available, from ultra low viscosity to ultra high viscosity, purity can achieve above 99.5%. All our products live up to the international test and quality standards.
As a trustable and reliable partner, FUSHIXIN is a well known proverbial company in both domestic and international markets. We have established business relations with several hundreds of companies in China and abroad, set up offices in Vietnam and Thailand. Our products have been exported to Southeast Asia, South Asia, Middle East, Middle Asia, Africa, Australia, Europe, America, etc.
