Product Specifications
| Prod Model: |
190*190*80mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
190X190X80mm,190X190X95mm,140X140X80,140X140X95mm |
| Design: |
Direct Clear, Cloudy ,Double Star ,Sea Wave ,etc. |
| Shape: |
Square |
| Structure: |
Hollow |
| Function: |
Decorative Glass |
| Thickness: |
Cellular Glass |
| Nominal Thickness: |
8mm |
| Surface State: |
Configurated Glass |
| Grade: |
Excellent Grade |
| Usage: |
Building |
| Color: |
Clear,Brown,Green,Blue,Red,etc. |
Product Description

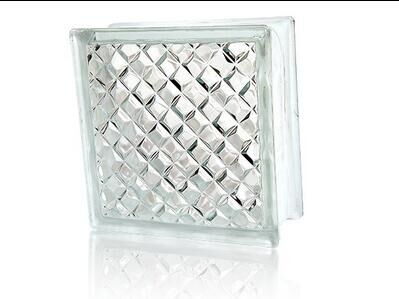

Glass block is a sound and heat insulation, waterproof, good decorative new generation of efficient environmental friendly building material of decorative wall.
Features:
Environmental Friendliness
Sound insulating
Fire-resistant
Frost-resistant
Heat-shielding
High compression resistance and shock resistance
**Specifications:
Metric series, Imperial series, In-colored series,
Acid etched series, Artistic series, Corner series
*Designs:
Sea wave, Cloudy, Lattice, Parallel, Crystal Parallel, Diamond, Water Bubble, Direct Clear, Double Star, Cock-Tail, Jewel, New Moon, Ice-Flower, Coral, Meteor, etc.
*Normal Size:
190 x190x80mm, 190x190 x95mm, 145 x145x80mm, 145 x145 x95mm
*Color: Clear, blue, green, bronze, grey, pink, etc.
The following information is based on a typical 190x190x80mm clear glass block.
Glass
Composition: Silica-sand, soda ash, calcium.
Fusion is obtained at approximately 1550OC.
Light Transmission
Clear 190x190x80 = 80%
Coloured 190x190x80 = 60%
Thermal Transmission
Average value = 2.9 W/m² ° C: Single Wall.
Impact Strength
12.0 N/mm - Tested using 50kg sand bag and steel ball bearings.
Sound Transmissions
Rw = 42dB depending on frequency.
TERMS | CONDITIONS |
| MOQ | 1 x20'FCL |
| Payment Terms | 30% deposit, and balance before shipment by T/T |
| Packing | packed in cartons and 6pcs/carton |
| Delivery | 15-30days |
Qingdao Globalstar Glass Co., Ltd. is the glass manufacturer and exporter, specializing in all kinds of glass and mirror producing and exporting. We did international business more than 10 years.
Our well-known "GLOBALSTAR" brand glass have been supplied to the market of Europe, America, Middle East, Africa, South Asia and South America with large quantity every year.
Our products including
-Tempered glass for builiding, home appliances, furniture etc.
-Laminated safety glass
-Double glazing glass for window
-Aluminum mirror, silver mirror
-Clear float glass, green/blue/bronze/gray pink float glass.
-Gray/green/blue/bronze/golden reflective glass
-Clear figured glass, green/blue/brown/yellow/gray figured glass
-Clear sheet glass and mirror 1.5mm---8mm
Our own factory produce tempered safety glass, laminated safety glass, double glazing glass etc.
At the same time, we also can supply forklift with special equipment used to unload the glass safely and easily.
Pls tell us when you need any information, we will offer u the best quality and service.
With a long term manufacturing experience and sincerely business cooperation, select us, you will gain more.
