| Price: | US $ 0.05-0.09/Piece |
|---|---|
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Chip Type: | Tk4100/Em4100/T5577 |
|---|---|
| Working Frequency: | 125kHz |
| Read Range: | up to 10 Cm, Depending on The Reader |
| Thickness: | 0.9mm/1.8mm |
| Surface: | Glossy/Matte/Frosted |
| Place Of Origin: | Shenzhen, Cn |
| Application: | Identification, Payment, Membership Card |
| Protocal: | ISO 18000-2 |
| Supplier Style: | Direct Factory |
| Function: | Information |
| Material: | PVC |
| Frequency: | Low Frequency |
| Card Specifications | |||

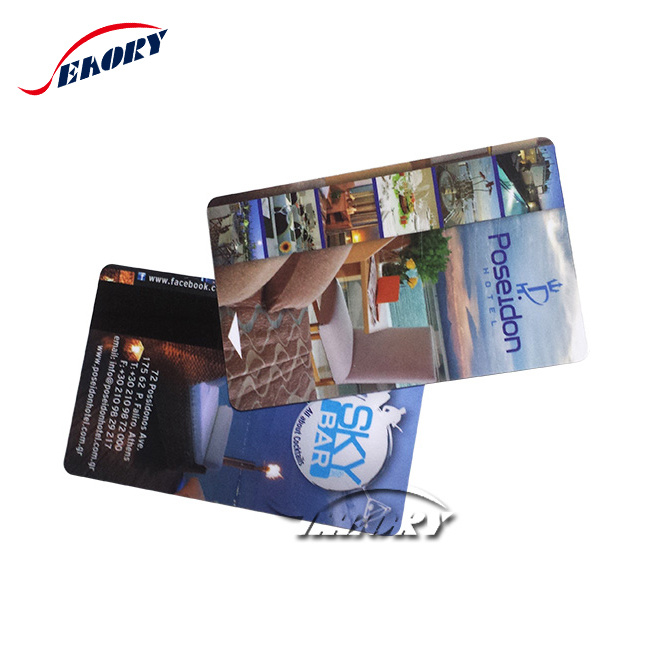

| Card type: | Cmyk Printing Tk4100 RFID Smart Card | ||
| Material: | PVC PET ABS | ||
| Size: | ISO CR80 standard size:85.5*54mm, or customized | ||
| Dimensios: | L86 × W54 × T0.8 (+/- 0.04)mm L80 × W120 × T1.0 (+/- 0.04)mm L70 × W100 × T1.0 (+/- 0.04)mm Weight: 5.8g+/-0.5g Standard Color: White | ||
| Features: | |||
| -64 bit memory array laser programmable -Several options of data rate and coding available -On chip resonance capacitor -On chip supply buffer capacitor -On chip voltage limiter -Full wave rectifier on chip -Large modulation depth due to a low impedance modulation device -Operating frequency 100 150 kHz, (125kHz) -Very small chip size convenient for implantation -Very low power consumption | |||
| Crafts: | |||
Printing Method: Offset Printing, Silkscreen Printing Silver, Gold, Bronze Glittering Effect, UV Printing Number Printing Options: Ink Jet Number, Embossing Number Thermal Transfer Number, Laser Number Surface Options: Glossy, Matte Magnetic Stripe Options: Loco 300Oe, 350Oe Hico 650Oe, 2750Oe, 4000Oe Other Available Options: Chip Encoding, Barcode Printing Signature Panel, Hole Punching TRW Thermo Rewrite Foil Hole Punching, Lanyard Slot Ballpoint pen Writable / Stamp writable Foil 125KHz Chips: EM4100 / H4100 / TK4100 / SMC 4001 EM4102 / H4102, EM4200 EM4205, EM4305, EM4450, EM4550 T5557 / T5567 / ATA5567 / ATA5577 Hitag1, Hitag2, HitagS 13.56MHz Chips: LEGIC MIM 256, LEGIC MIM 1024, LEGAT2048 MF 1K S50 / MF1 S50, MF 4K S70 / MF1 S70 MF PLUS S 2K, MF PLUS S 4K, MF S20 MF ULTRALIGHT, MF ULTRALIGHT C MF DESFire, MF DESFire EV1 8K (MF3 IC D81) MF DESFire EV1 4K (MF3 IC D40) MF DESFire EV1 4K (MF3 IC D41) MF 1K-Compatible / FUDAN 1K / TKS50 I. CODE SLI SI2 / I. CODE 2, I. CODE 1, LRIS2K, LRI64 Tag-IT Ti2048, Tag-IT Ti256 INSIDE Picopass 32KS, INSIDE Picopass 2K ST SR176, SRI512, SRIS4K 868MHz / 915MHz Chips: NXP UCODE HSL, NXP UCODE EPC Gen 2, UCODE GEN2 XL, UCODE GEN2 XM, XRA000, XRA Gen 2, ATA5590 ALIEN ALN-9540 / 9662 Squiggle, UCODE GEN2 XL, UCODE GEN2 XM NXP UCODE EPC V1.19, Impinj Monza Gen2 EM4324, EM4444, EM4033, EM 4133 | |||
| Applications: | |||
| Public transportation (Metro card, Bus IC card etc.) Access management Event ticketing Anticounterfeiting Security and Identification | |||
| Packing | Size of standard card: 85.5*54*0.76mm 1 pc/opp, 200pcs/box, 2000 pieces/carton Carton size: 330×250×130mm(20boxes/carton) One carton weight: 14 kg | ||
| Packing way can according to your request | |||
| Samples | Free samples are available upon request | ||
