Huazheng Electric Manufacturing (Baoding) Co., Ltd. >> China Supplier Price Portable Handheld Sf6 Gas Quantitative Leakage Detector

China Supplier Price Portable Handheld Sf6 Gas Quantitative Leakage Detector

China Supplier Price Portable Handheld Sf6 Gas Quantitative Leakage Detector
Price: US $ 7500-9500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Product Specifications


Prod Model: HZIR-2000
Name: Sf6 Gas Leak Detector
Detection Range: 0 ~ 1500 Ppm Sf6
Sensitivity: 1 Ppm
Repeatability: 0.3%
Storage Temperature Rating: - 40 ~ + 70 ºC
Operating Voltage: 220VAC ± 10% 50Hz Continuous Working H
Internal Pump Fast Response Time: Only 1 Second
Keyword: Sf6 Gas Leak Detector
Measuring Principle: Double Wave Dispersive Infrared Spectrometer (Ndir
Relative Humidity: ≤90%Rh
Weight: 0-100Kg
Power Source: AC220V
Type: Sf6 Gas Leak Detector

Product Description

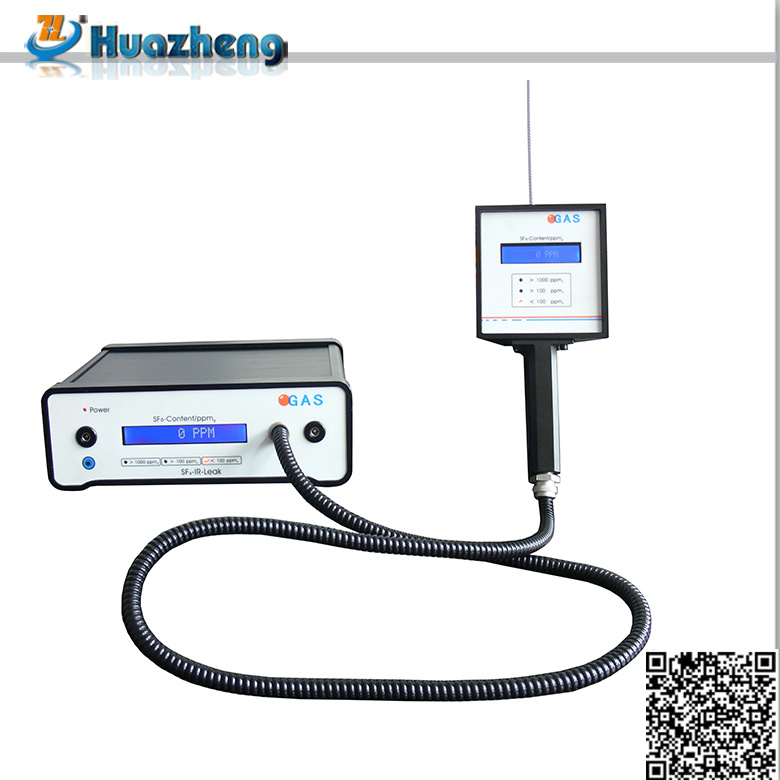

China Supplier Price Portable Handheld SF6 Gas Quantitative Leakage Detector

I.Description

SF6 double infrared quantitative leak detector is mainly used for  leak detection about SF6 related products in electric power industry, which include GIS and SF6 insulated circuit breaker and SF6 gas inflatable ring network cabinet, etc. The equipment focus on various advantages in one, fully considers the characteristics of field application, and it is designed to be light weight, portable, non-radioactive, does not need argon, rapid response, high precision, high sensitivity and is not affected by the environment gas.
SF6 quantitative leak detector adopts double liquid crystal display, it can display SF6 concentration in real time and operation is very simple. Besides, it has built-in rechargeable lithium battery, AC/DC.
SF6 quantitative leak detector is easy to operate and carry, and it can detect the minimum concentration of SF6 gas in the air. The main technical structure characteristics of the instrument are its sensitivity, response time and stability , furthermore, it can against humidity and toxic gases. Based on the technological principle of the double wave non-dispersive infrared, SF6 gas leakage infrared leak detector provides a reliable and high accurate performance and features of less maintenance. SF6 gas leakage infrared leak detector has a significant development to detect and identify the minimum leakage of SF6 gas equipment indoor and outdoor. For its different video alarm levels, it is the best tool to reduce environmental pollution and SF6 gas leakage.
Main applications
1GIS Switchgear
2SF6 circuit breakers, switchgear
3SF6-related electrical equipment.


II.Features

Non radioactive material, easy to store and transport
less maintenance (maintenance once every five years) and no wear and tear parts
not bound by moisture content
it has particle filter for protecting the sensor
not bound by the contaminants
internal pump fast response time, only 1 second
no consumables
high sensitivity, can detect the PPMV SF6 gas in the air dropped to 1 ppmv

III.Technical indicators

Measuring principle: double wave dispersive infrared spectrometer (NDIR)
Detection Range: 0 ~ 1500 PPM SF6
Sensitivity: 1 PPM
Repeatability: 0.3%
Storage temperature rating: - 40 ~ + 70 ºC
temperature: - 10 ~ + 60 ºC
relative humidity: ≤90%RH
Sampling method: built-in solenoid diaphragm pumps, automatic suction
Alarm: sound and light alarm
Operating voltage: 220VAC ± 10% 50Hz, AC and DC, continuous working hours
Weight: Console: 2.5 kg, pistol: 0.5kg
