Price: | US $ 3500-4500/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union,Paypal,Money Gram |
Prod Model: | FLC1610D |
---|---|
Working Area: | 1600*1000mm |
Warranty: | 2 Years |
Laser Power: | 80W-180W |
Features:
With 1600*1000mm working area,and dual laser heads, it is equal to two machines. The two laser nozzle can work at the same time, which greatly improving the processing efficiency,especially for cutting wood,acrylic,fabrics and flexible materials. It has a switch which can let you stop one laser head to meet up your requirements of full scare working.
Model | FLC1610D |
Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
Laser power | 80w-180w |
Working area | 1600*1000mm |
Max Engraving speed: | 0-64, 000mm/min |
Max cutting speed | 0-30, 000mm/min |
Laser output control | 1-100% software setting |
Location precision | Less than 0.01mm |
Highest scanning precision | 2500DPI |
Operating temperature | 0 - 45 |
Operating humidity | 5- 95% non-condensing |
Minimum shaping character | English 1.0 x 1.0mm |
Graphic format supported | HPGL, JPEG, BMP, PLT, DST, DXF, and AI ... |
Driving system | Stepper(Optional: Servo) |
Cooling mode | Water-cooling and protection system |
Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
Controller | DSP |
Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
Color separation | Uses color property to set function, speed, and laser power |
Applicable Industries:

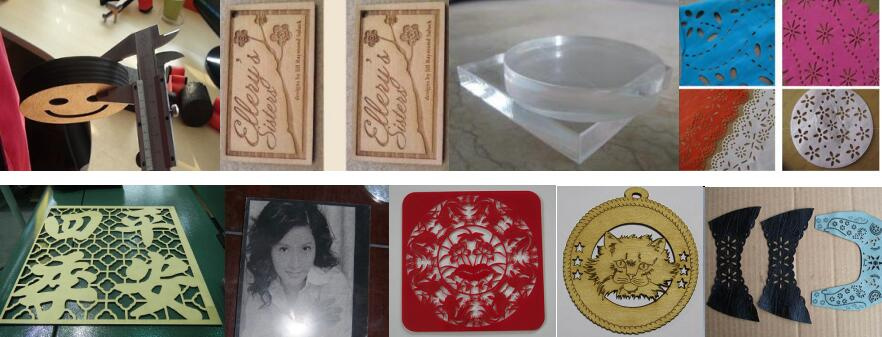

Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

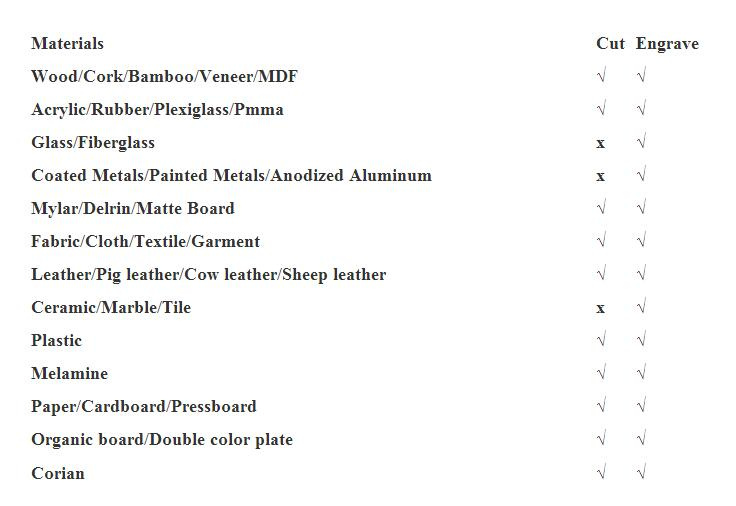

Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
