| Price: | US $ 100-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | MSLPU25 |
|---|---|

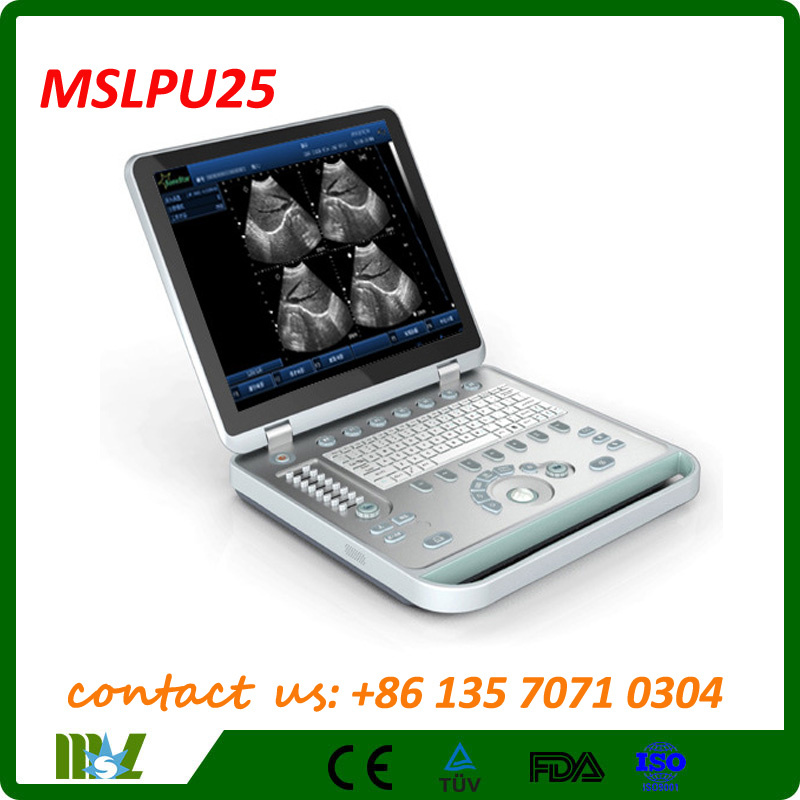

| Item: | Portable Ultrasound Machine |
| Display Screen: | 15 Inch Color LED Screen |
| Display Mode: | B, B+B, B+M, M, 4b |
| Warranty: | More Than 365 Days |
| Scanning Line Number: | 512 Lines/Frame |
| Scanning Range: | Convex Array 60º~150º |
| Body Marks: | 35 Kinds |
| Dimension: | 512*512*8 |
| Gray Scale: | 256 Levels |
| Weight: | 4 Kg |
| Classification: | Imaging Diagnostic Equipment |
| Type: | Ultrasound Scanner |
| Certification: | ISO13485 |
| Group: | Female |
-Built-in battery
-2 probe connector
-15 inch color touch LCD screen
Specifications
Feature:-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective
| Display size | 15 inch LCD screen |
| Working frequency | 2.0MHz~10MHz |
| Display mode | B, B+B, B+M, M, 4B |
| Scanning range | Convex array 60°~150° |
| Amplification factor | 1.0, 1.2, 1.5,2.0 |
| Gain control | 8 segments TGC and overall gain can be adjusted respectively |
| Image gray-scale | 256 levels |
| Scanning line number | 512 lines/frame |
| Frame rate | 30 frames/second |
| Digital scanning conversion | 512×512×8 bits |
| Memory | USB flash disk large volume image storage |
| Overall size | 362mm×340mm×60mm |
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Built-in battery capacity: can work more than 5 hours-Output interface: USB port, video.
-Total weight: 4Kg(with battery)
Standard configuration:
One host, one convex probe, one aluminum trunk
Optional:
Transvaginal, linear, micro-convex probe;
Biopsy; Trolley; Printer.
