Product Specifications
| Prod Model: |
DW-L1390 |
| Laser Power: |
60W/80W/100W/130W/150W for Your Reference |
| Machine Application: |
Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: |
18 Months |
| Cutting Thickness: |
0-30mm |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: |
Redcam |
| Resetting Positioning Accuracy: |
0.01mm |
| Motor: |
Servo or Stepper as Your Option |
| Laser Tube: |
Reci/Yongli/Efr etc |
| System: |
Leetrol or Redcam |
Product Description

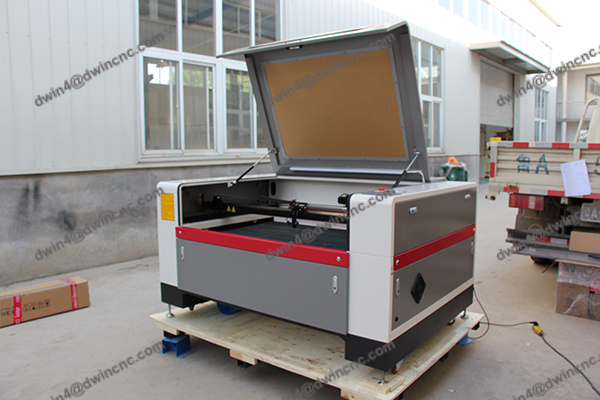

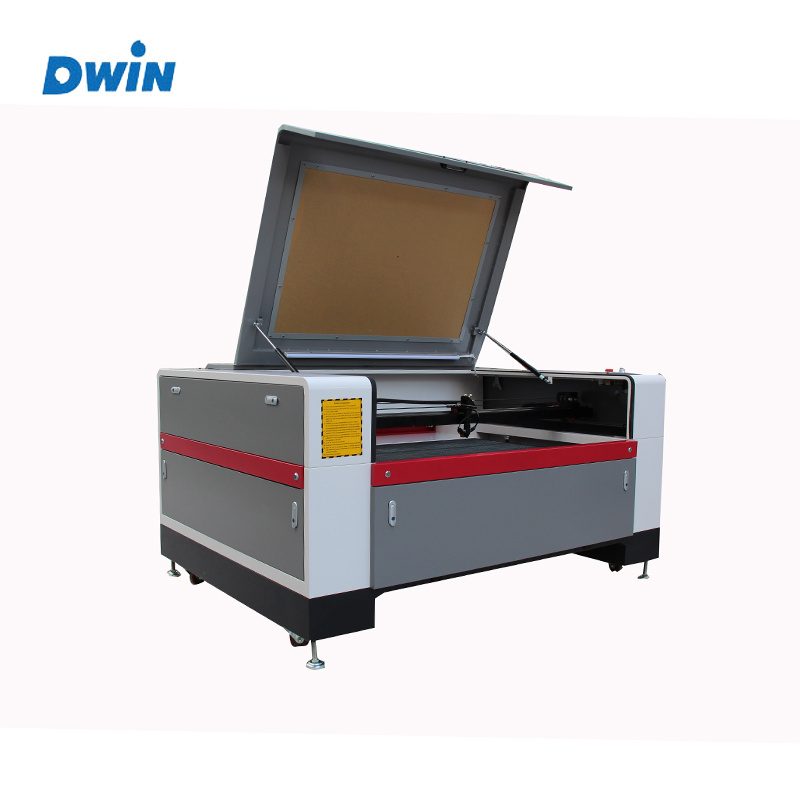

China 1390 Desktop Co2 Glass fabric Laser Engraving cutting Machine
Product Overview:1. DW9060 laser engraving machine used for engraving perfect pictures, portrait on the surface of all kinds and all shapes of materials, make all kinds of craftworks , also make diversified marks and brands.
2.This is a machine with good performance and reasonable price.

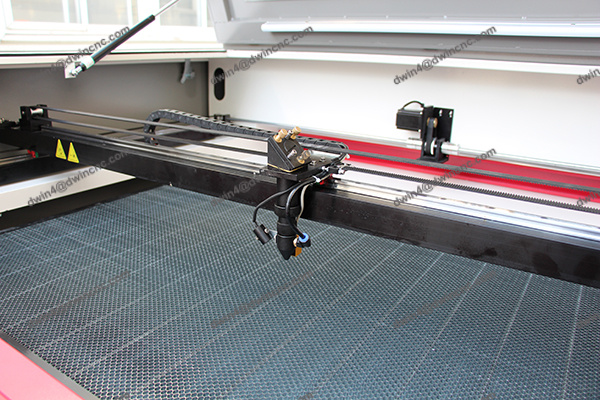

3.The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth
4.The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
5.We can supply different color shapes for your need.
Machine Parameter| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 130cm*90cm(L*W) |
| 3 | Laser power | 40W/60W/80W/100W/130W |
| 4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Applicable materials:Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
Guarantee & After sales service:1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
