Cheapest Ce Approved Portable Ultrasound Scanner
Price: |
US $ 1-1500/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Prod Model: |
YSD1300C |
Display: |
12.1-Inch LED (1024*768) |
Tgc: |
8 Segments |
Memory Disk: |
128GB |
USB Port: |
2 |
System: |
Windows 10 System(PC) |
Power: |
System Operates Via AC Power |
B Mode: |
1024 Frames |
M Mode: |
12.5s |
Manufacture: |
Yes |
OEM: |
Acceptable |
Classification: |
Imaging Diagnostic Equipment |
Type: |
Ultrasound Scanner |
Certification: |
ISO13485 |
Group: |
Middle-aged and Old |
Product Description

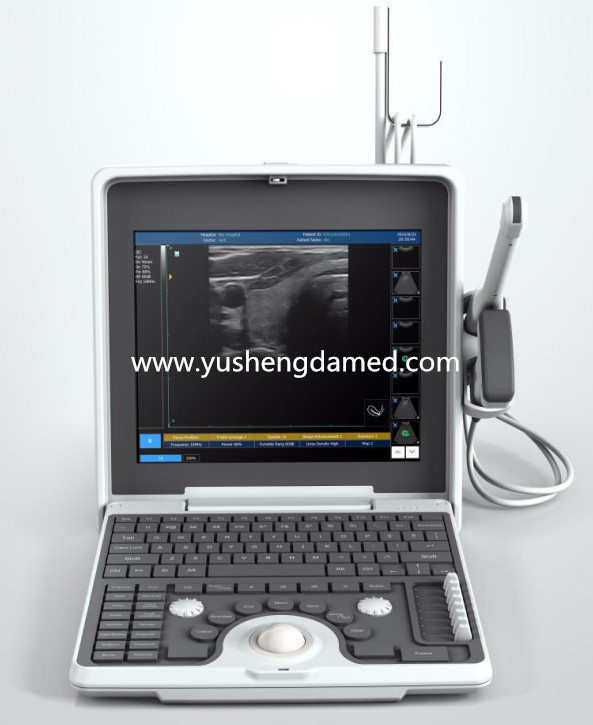

YSD1300C Portable Ultrasound System
Technical SpecificationsSystem Specifications Net Weight: 5.5kg (with battery)
Dimensions: 29.8*31.8*13.8cm
Display: 12.1-inch LED (1024*768)
Display Language: English
Power: System operates via AC power
System: Windows 10 System(PC)
Display Modes and Imaging Processing:
Multi-frequency imaging: B,B+B,4B,B+M,M,Compound/Trapezoid Imaging
Image processing: Multi-frequency probes for 2D imaging modes
User Interface: Alphanumeric QWERTY keyboard
8-Segment TGC
AQ Sonic & E Crystal
one-key image optimization
Multiple Beam Formation
THI technology
Full patient database solutions
capture and review
Application:Abdominal,Obstetrical,Gyneclogical, Cardiac,Small parts, Urological, Vascular, Orthopedics, MSKIntelligent Workflow/Storage/Review:Image archive on hard disk and USB mobile
storage medium, temporary saving in cine memory
2 USB ports,Memory disk:128GB (selectable SD Card)
Single-frame image formats:BMP
Multi-frame images formats:AVI
Cine memory capacity(Max.): Cine memory capacity(Max.)
B mode:1024 frames
M mode:12.5sStandard Configuration:12.1-inch LED monitor
Two transducer connector
Handle
2USB port
1 LAN port
1 HDMI OUT port
1 S-Video OUT
Software Update with USB
Measurement&Calculation software packages
Optional transducer:R60 Convex transducer 2-5Mhz L40 Linear transducer 5-12Mhz
R20 Micro-Convex transducer 2-5Mhz L25 Linear transducer 6-15Mhz
R11 Micro-Convex transducer 5-8Mhz L65 Animal rectal transducer 4-8Mhz
R10 Transvaginal transducer 4-8Mhz R50 Animal rectal convex array transducer 2-5MhzTrade & MarketMain Markets | Total Revenue (%) |
---|
Africa | 11.00% |
South America | 10.00% |
North America | 12.00% |
Western Europe | 20.00% |
Domestic Market | 10.00% |
Mid East | 6.00% |
Eastern Europe | 7.00% |
Central America | 5.00% |
Northern Europe | 4.00% |
Oceania | 4.00% |
Southern Europe | 3.00% |
Eastern Asia | 3.00% |
Southeast Asia | 3.00% |
South Asia | 2.00% |
Export Percentage: 81% - 90%
Export Mode: Distributor /Agent
No. of Employees in Trade: 20-30 People Our Certificates:
Why choose us:We got production and business certification from Chengdu food and Drug Administration
We got business license from Chengdu City Administration of industry and commerce
We got products certificate of registration and have checked in the website of SFDA
We have accepted the onsite check from SFDA every quarter
We finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life", and our company spirits are quality, service,trust,thanksgiving;Similar Models:
Chengdu Yushengda Technology Co., Ltd. Is a hi-tech limited company engaged in developing, producing and selling medical ultrasonic diagnosis apparatus. The company has high-qualified professional stuffs in researching, producing, marketing and management. There's a brand-new manufacturing plant and advanced suit of equipment for producing and inspecting the products. It Can produce 5, 000 sets of ultrasound scamner and more than 10000 hospital bed per year.
The YSD series of B-mode ultrasonic diagnosis devices adopt super-scale integrated electro circuit and new SMT technic. The quality of products is stable and credible. It has passed the medical ultrasonic quality monitor and inspection center. The technical and safe standards are all conformed to the GB10152-1997. Since 2003, it was awarded "high-quality, keeping regulation, good faith" honored enterprise of Sichuan.
The spirit of the company is"unity, sincerity, factualness, innovation". We all try our best for"true feelings to customer, diligent permanently for innovation, improving continuously for quality, creating brand by sureness", which makes more satisfaction to customers. The company has been carried out the quality managing system of YY/T0287-2003, won the certificate of medical device quality managing system. The products are sold to domestic markets and overseas markets, such as Europe, Africa. The products are becoming more and more popular.
We'll stick to our policy and work harder all the time in order that we can provide more and better products, and making contributions to the development of national medical devices and people's health!
