Product Specifications
| Prod Model: |
LH- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name Of The Machine: |
Ceramic Coating Machine |
| Coating Technology: |
PVD Coating, Vacuum Coating |
| Coating Type: |
Coating Production Line |
| Control Model: |
Manual, Semi-Automatic, Full-Automatic |
| Advantage 1: |
Low Cost and Large Output |
| Advantage 2: |
High Quality, Adhesion |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Ceramic |
Product Description

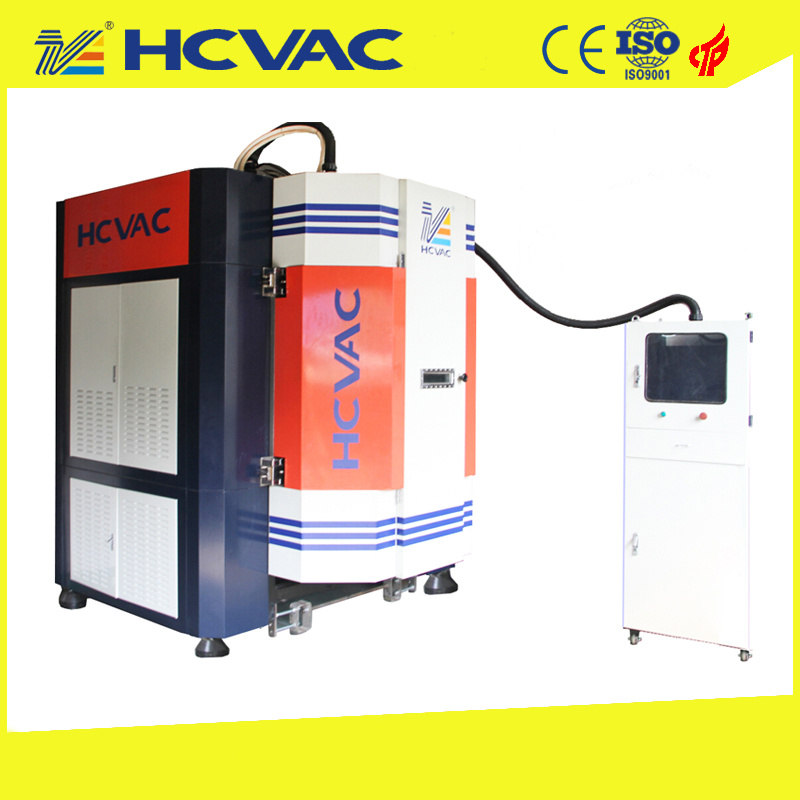

Ceramic PVD Plasma Coating Machine,ceramic plasma coating system:
(suitable for glass,ceramic,metal,steel,mosaic,crystal,alloy ect but not for plastic)
The machine combine three technology technology together,including Arc Evaporation,DC sputtering,MF sputtering Together to get high-end coating, you can use this machine to get normal decorative coating color,real single coating like Titanium,real gold,real rosegold and others, the machine also specially design for getting jet black color,It can give most steady coating quality and performance. we service many worldwide brand.For more information,pls contact with : Sophia
Mobile/Line:86 13600282018

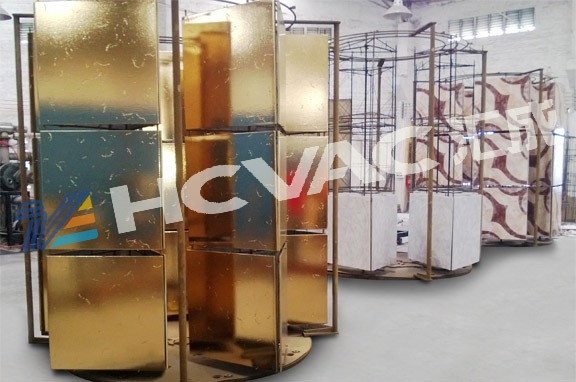

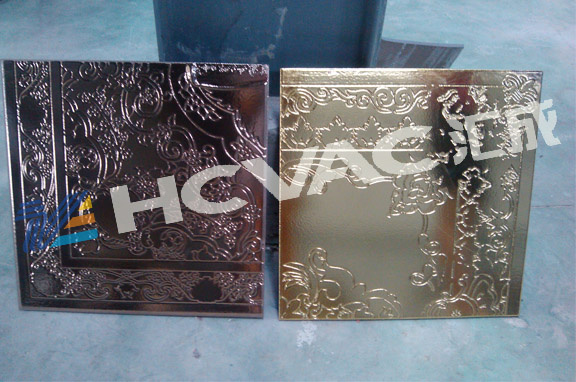

The machine can coat ceramic tiles, ceramic tableware, porcelain tiles, floor tiles, glass mosaic. Glass tiles. Beside ceramic, you can also coat metal, glass products. Until now we have make the biggest machine for coating tiles, it's production ability is can coat 1500 square meter per day.
Is mainly used for ceramic tile, porelain, ceramics for daily use products (such as tableware, stationery ), ceramic (such as vases, figures, ornamental furnishings )plasma coating. This series equipment is mainly configured for cathodic electric arc evaporation source, but also with bias power and magnetron sputtering target.
Features: It's equipped with powerful ventilation systems, pumping fast, High loading capacity, high productivity, low production costs. This machine can get imitation gold color, rose gold, silver and white, black and other color films; It adopts decal paper and coated with water-soluble coating technology so
Mode | LH-1000 | LH-1150 | LH-1200 | LH-1600 |
| mension | 1000×1200 | 1150×1200 | 1200×1300 | 1600×1800 | 1600×2200 |
| Coating | Gold TiN, black TiC, rainbow TiO, wear resistant coating, supper hard coating, DLC coating, metal decorative coating and so on |
| Power supply system | DC power supply, MF power supply, arc power supply,filament power supply,activation of the power supply, pulsed bias power supply |
| Target type | Multi-arc target, MF twin targets or plane target as options |
| Vacuum chamber structure | Vertical front door(Double water jacket type cooling or sink type cooling),the rear air exhaust system |
| Vacuum system | Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump |
| Heating system | Normal temperature to 350 centi-degree adjustable and controllable (PID control), radiation heating by stainless steel heating pipe |
| Inflation system | Mass flow control(1-4 road) |
| Ultimate vacuum | 6×10- 4 pa(no-load,cleaning room) |
| Vacuum time | Pumping time less than 13 minutes ,from atmospheric pressure to 310 -3 Pa mo-load |
| Pressure maintaining rate | 1h≤0.6pa |
| Workpiece rotation | Up rotate or bottom rotate + common rotation frequency conversion stepless controlable and adjustable, 0 to 20 RPM |
| Control mode | Manual+semi automatic/touch screen+PLC |
| Remark | Vacuum chamber size can be customized according to the requirements of customers products and special process |
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements. We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production. Easy to implement To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part's history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings. For more information,pls contact with : Sophia
Mobile/Line:86 13600282018
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
