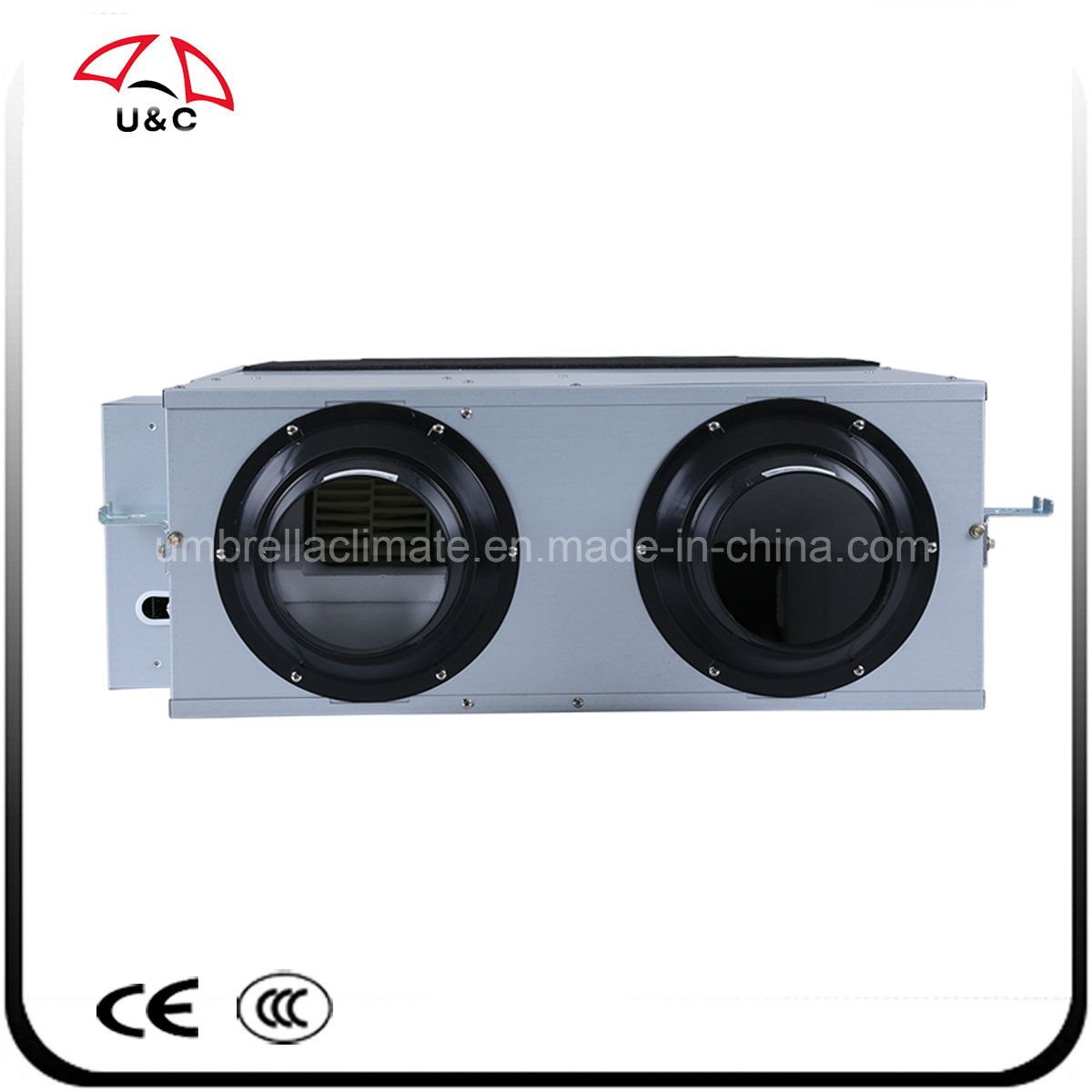

Ceiling Type Total Heat Exchanger Heat Recovery Ventilator
| Price: |
US $ 258.9-305.93/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
UHE |
| Motor: |
AC Standard, DC Optional |
| Air Volume: |
100~5000 M3/H or Above |
| Efficiency: |
75% |
| Payment: |
by T/T |
| CO2 Controller: |
Optional |
| Certification: |
CE |
Product Description

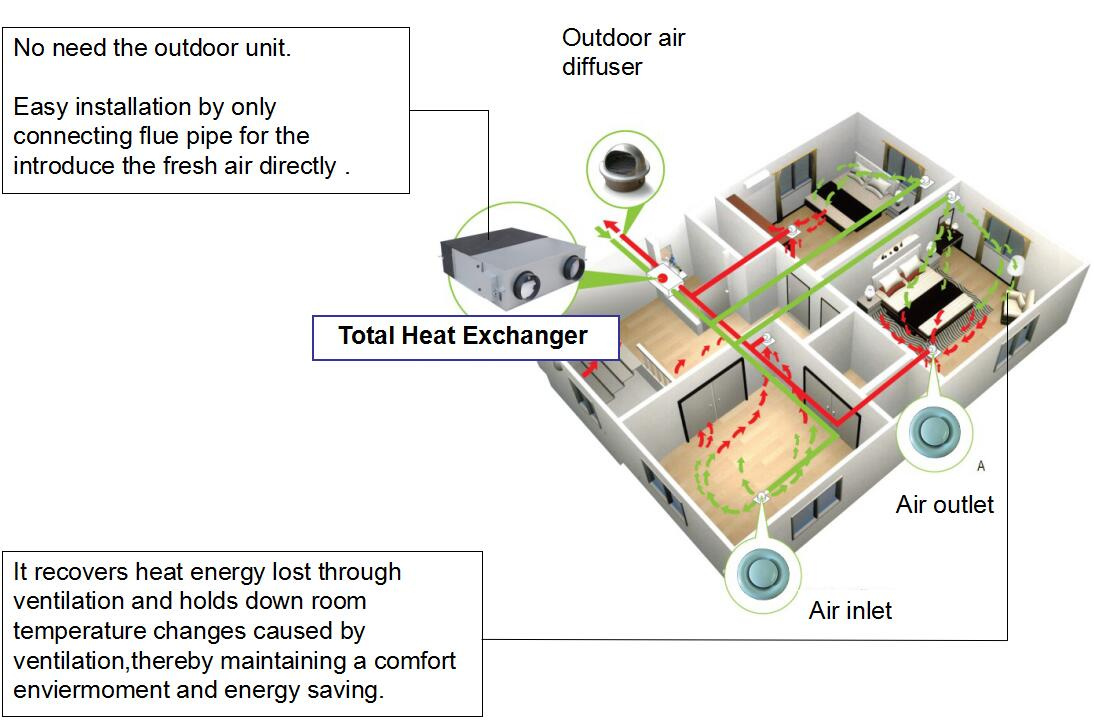

Energy Recovery Air To Air Total Heat Exchanger:(HRV/ERV) GENERAL CHARACTERISTICS:1.Air volume(m3/h): 100/150/200/250/350/400/500/600/800/1000/1200 (could be higher)2.High-efficiency filter3.High-efficiency heat recovery core( Cross counter flow)4.Unit Function: Air purification, energy recovery5.Application: Meeting room, test room,office building,computor room,restaurant , shop , fitness and entertainment place etc.OPTIONSThe following options can be provided:1.Bypass function ,defrosting and inner thermal insulation 2. DC Motor 3. CO2 Sensor Controller Why Choose us?Compared with other supplier, we have advantages as following:1.CE certified2. Famous Brand DC motor: 50% energy saving & running quietly3.Filter service life is for 2 years in Europe4.Motor service life is for 10 years 5.Heat recovery efficiency can reach to 70-80%6.Optional CO2 controller: The test range can up to 5000ppm7.Optional purifying box can be for PM 2.58.Optinoal bypass function is a good choice for the cold climate9. Strictly production line flow be carry out10.Delivery time: 7 working days after payment be received11.Maintenance: 18 months against the B/L date.Product Introduction:1. Super light ultra-thin design, machine on condole top, do not take up among indoor space, and do not affect indoor decoration effect. The machine can also level invert direction installation, more flexibility. Unique structure design will duct censored technology applied to equipment in, guarantee the perfect mute effect. 2. Besides having general change of fresh air, air purification, energy recycling and basic functions, but also equipped with different control system, which can achieve a variety of specific function of equipment. 3. Brushless DC motor using Panasonic, less noise, super energy-saving, comprehensive energy saving more than 50%. 4. Liquid crystal display control switch, but according to need to achieve timing open/close and airflow control, indoor temperature display, optional with temperature, concentration of carbon dioxide display and control function, achieve healthy controls. 5. It is good choice for green buildings, environmentaly protection.Clean Comfort Environment and Energy Saving:

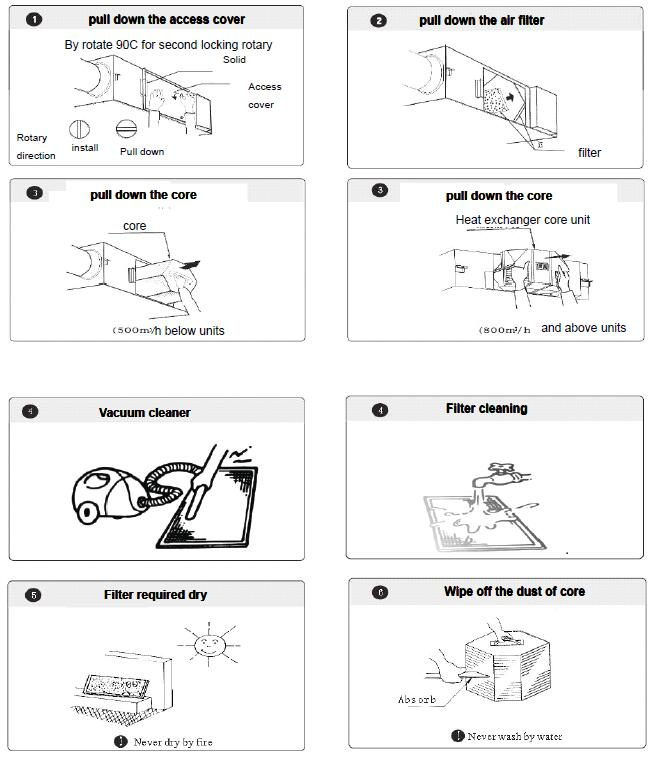

Maintenance:
FAQ1.Order type We accept small and mixed order, MOQ 1pc each model.2.OEM & ODMOEM & ODM, Customization service provided. We can customize ANY LOGO on the unit according to your request. MOQ 1*20 Container.3.Payment:By T/T4.Delivery time: Standard is 7 working days after payment be received.5.Maintenance: 18 months against the B/L date. We're sure your any inquiry will get prompt reply! | Model Selection Guide |
| Room type | Non-Smoking | Slight Smoking | Heavy Smoking |
| Ordinary ward | Gym | Theater&Mall | Office | Computer
Room | Dining room | VIP Room | Meeting Room |
Personal fresh air consumption
(m3/h)(Q) | 17~42 | 8~20 | 8.5~21 | 25~62 | 40~100 | 20~50 | 30~75 | 50~125 |
| Air changes per hour(P) | 1.06~2.65 | 0.50~1.25 | 1.06~2.66 | 1.56~3.90 | 2.50~6.25 | 1.25~3.13 | 1.88~4.69 | 3.13~7.81 |
Remark:
1.Choose the proper installation types based on the building structure;
2.Determine the fresh airflow required according to the use, size and number of persons;
3.Select the right specifications and quantity according to the determined fresh airflow.
|
Since 2000, Shanghai Umbrellaclimate Co., Ltd is a Shanghai based company which has enjoyed a reputation of serving China air conditioning market with an professional team for more than 10 years. The factory is located at the Zhejiang province and covers an area of 53000 square meters and a building area of 40000 square meters.
The Umbrellaclimate has the abundant technical research and development ability, advanced production, processing, testing equipment and testing mature consummation management.
Nowadays we are developing one completed sales and manufacturing HVAC group.
Our main products:
1. Air handling unit,
2. Hygienic air handling unit
3. Fan coil unit
4. Heat recovery ventilator
5. Air/water cooled chillers/heat pump
Our market:
Offices:
Sustainable solutions that contribute to the success of your tertiary projects.
Cost-effective and ecological solutions that enhance the value of your customers' spaces. They deliver exceptional comfort to create perfect indoor environments and optimise working conditions to the extent of protecting the health of employees.
Administration:
Optimal solutions adapted to the purposes of your buildings.
We have the right solutions to meet your requirements in terms of indoor air quality, comfort and energy optimisation, from classrooms to clean rooms, government offices to courthouses.
Shopping centres:
Optimised system solutions for the heating, cooling and air handling of all commercial buildings.
For the purchasing comfort of your customers and the energy optimisation of your buildings, Umbrellaclimate offers a wide range of system solutions that effectively meet the specific needs of retail areas.
Hotels:
Solutions for your customers' comfort and the energy optimisation of your hotel. From budget to luxury hotels, Umbrellaclimate's solutions offer comfort equipment adapted to all types of guest room. Use them to optimise your energy costs linked to the production of domestic hot water, heating, summer comfort and air quality.
Healthcare:
Solutions that keep pace with hospital requirements.
Umbrellaclimate possesses unique expertise and experience to meet the needs and requirements of hospital environments. Our patented innovations and selection of water-circuit systems guarantee hygienic, comfortable and sustainably economic environments.
Industry:
Unique solutions at the heart of all processes
Umbrellaclimate extends its know-how to sectors of industry. From integrated equipment to the design of thermal engineering processes, you can be sure to receive expert guidance.
Individual housing:
Solutions which free home owners from expensive fuel
For renovation projects, Umbrellaclimate offers simplicity, savings and comfort thanks to its new generation of high temperature heat pumps which replace boilers without requiring complicated alteration work. For new housing, reversible air source and ground-source solutions anticipate future thermal regulations and add value to your customers' property.
We are ready to sincerely serve our global customers for good cooperation.
