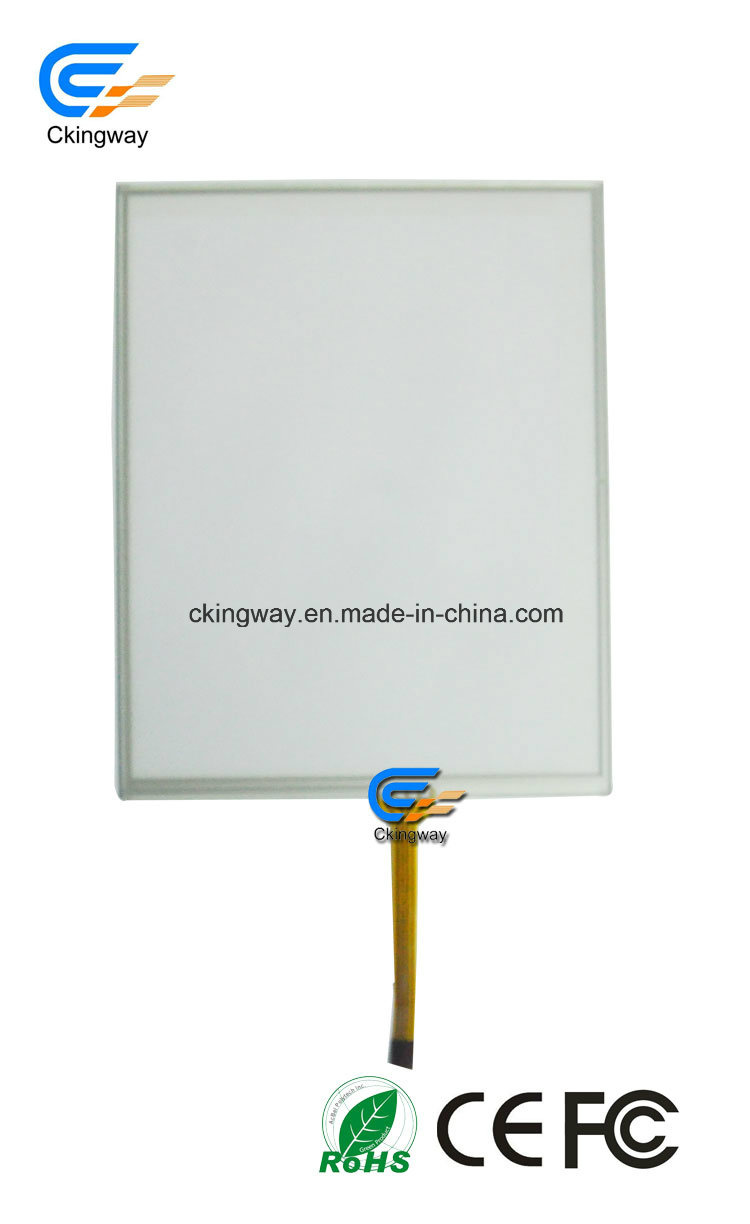

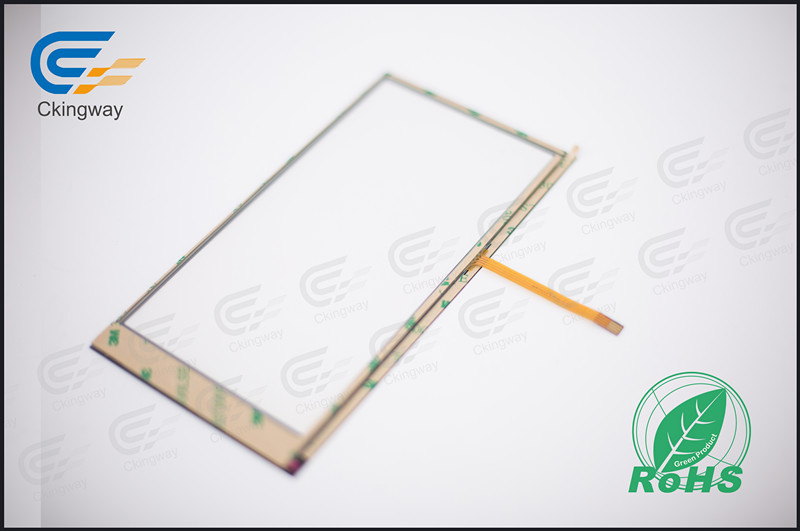

Carbon Printed High Quality 5.6 Inch 4wire LCD Touch Screen Panel with FPC
Price: |
US $ 4.45-5.2/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1000/Piece |
Pay Type: |
T/T,Western Union |
Product Specifications
Prod Model: |
SZYP1199-5.6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
5.6" Inch |
Structure: |
Film + Glass |
Connector: |
Pin 4 Plug Connector |
Thickness: |
1.4 ± 0.15 mm |
Touch Media: |
Finger, Touch Pen |
Type: |
4 Wire Restistive Touch Screen |
Ratio: |
4:3 |
Resolution: |
4096*4096 |
Aspect Ratio: |
4:3 |
Application: |
Education and Training System |
Screen Type: |
Resistive |
Resistive Touch Screen Type: |
Analog |
Customized: |
Customized |
Screen Size: |
5.6&Quot; Inch |
Product Description
Product DescriptionThe Feature of Carbon printed High quality 5.6 inch 4wire lcd Touch Screen Panel with FPC as below: 1.Operates with any medium (finger, pencil, gloves, etc.)
2. Consistently accurate , accurate response
3.Relatively resistant against dirt and spray water
4.Very thin frame
5. Exact registration and precision due to high touch resolution
6. Light and compact design
7. Lowest priced technology that is most frequently used
8. Available custom Service
4 wire restistive touch screen technology: Ckingway 4-Wire Resistive products are perfect for industry machine GPS System or portable products where compact size and low power draw is a priority - such as PDAs, GPSs, smart phones and other hand-held applications. Our pressure sensing 4-wire resistive touch screens are cost effective and allow for input versatility with bare or gloved fingers and any pointing device.
Backed by a one-year warranty and 5 million touches in a single location, Touch International's 4-Wire resistive touch screens allow for ease of integration and use. Size | 5.6" inch |
Structure | Film + Glass |
Connector | Pin 4 plug connector |
Thickness | 1.4 ± 0.15 mm |
Touch Media | Finger, Touch Pen |
Type | 4 Wire Restistive Touch screen |
Ratio | 4:3 |
Resolution | 4096*4096 |
Response Time | ≤ 10 ms |
Supply Voltage | 5V DC , 35 mA |
Transparent | ≥ 78% |
Screen Resistance | X:100-500Ω Y:200-1000Ω |
Insulation Resistance | ≥20MΩ(10V DC) |
Pressure | 30 - 150 g |
Surface Hardness | 3H |
Life Span | > 1,000,000 time knocking ; ≥ 100,000 time in paddling |
Operating Temperature | - 10ºC ~ +60ºC |
Storage Temperature | - 20ºC ~ +70ºC |
Storage Humidity | 20 ~ 85% RH (except congeal fog) |
Custom Service | Available |
CERTIFICATION:
DATASHEET:
Carbon printed High quality 5.6 inch 4wire lcd Touch Screen Panel with FPC for packing:Anti-Static Foam+Paper Card+Ragged Bag+Carton
Carbon printed High quality 5.6 inch 4wire lcd Touch Screen Panel with FPC for Term of payment:1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiatedCompany Information Ckingway Technology Co.,Ltd. Established in 2009, We focus Researching & Developing, Design, Manufacture and sales integrated into one target on Resistive Touch panel, Capacitive Touch Panel and LCD/LCM (Liquid Crystal Display Module). Coming along with Electronics consumer products increasing rapidly recently, Our product has been holding steady marketing share in Touch display field under our teamwork strongly, while industry chain getting more ruggedized , professionalized.
Ckingway's Product range of application widely, is applied to Automobile electronic, Medical Equipment, Industrial Control, Security monitor and Digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, All products met RoHS testing request completely and have RoHS certification.
Ckingway holds Business ideology report that: Quality and service will not stopping to develop to be excellent., Creat value for customers. We implement management policy with institutional and hommization combination, For" Connecting People, as career into integrity, Profits shared each other, Progressing by together" talent development strategy. R&D team with Efficient and unite we had, can be make a response to market rapidly. Warranty:

FAQ
Ckingway introduction
Ckingway technology Co., Ltd. Established in 2009, we focus researching & developing, design, manufacture and sales integrated into one target on resistive touch panel, capacitive touch panel and LCD/LCM (liquid crystal display module). Coming along with electronics consumer products increasing rapidly recently, our product has been holding steady marketing share in touch display field under our teamwork strongly, while industry chain getting more ruggedized, professionalized.
Ckingway's product range of application widely, is applied to automobile electronic, medical equipment, industrial control, security monitor and digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, all products met RoHS testing request completely and have RoHS certification.
Ckingway holds business ideology report that: Quality and service will not stopping to develop to be excellent., creat value for customers. We implement management policy with institutional and hommization combination, for" connecting people, as career into integrity, profits shared each other, progressing by together" talent development strategy. R&D team with efficient and unite we had, can be make a response to market rapidly.
