Product Specifications
| Prod Model: |
DXD02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1200*600*20mm |
| Voltage: |
120V-240V |
| Power: |
550W |
| Temperature: |
Thermostat Control |
| Installation: |
Wall Mounted |
| Ventilation: |
Without Ventilation |
Product Description
Technical information
Heating Material: Carbon crystal
Power: 250W/350W/550W/750W/950W
Voltage: 110V- 240V
Certification: ETL, CE, RoHS, ISO9001,IP56,SAA
Frame material: Aluminum frame
Using life: 100, 000 hours
Infrared radiant wavelength: 8~14um
Electric heat radiation conversion rate: >99%F
Surface temperature: 70 - 80 celsius
Installation type: Wall or ceiling mounted

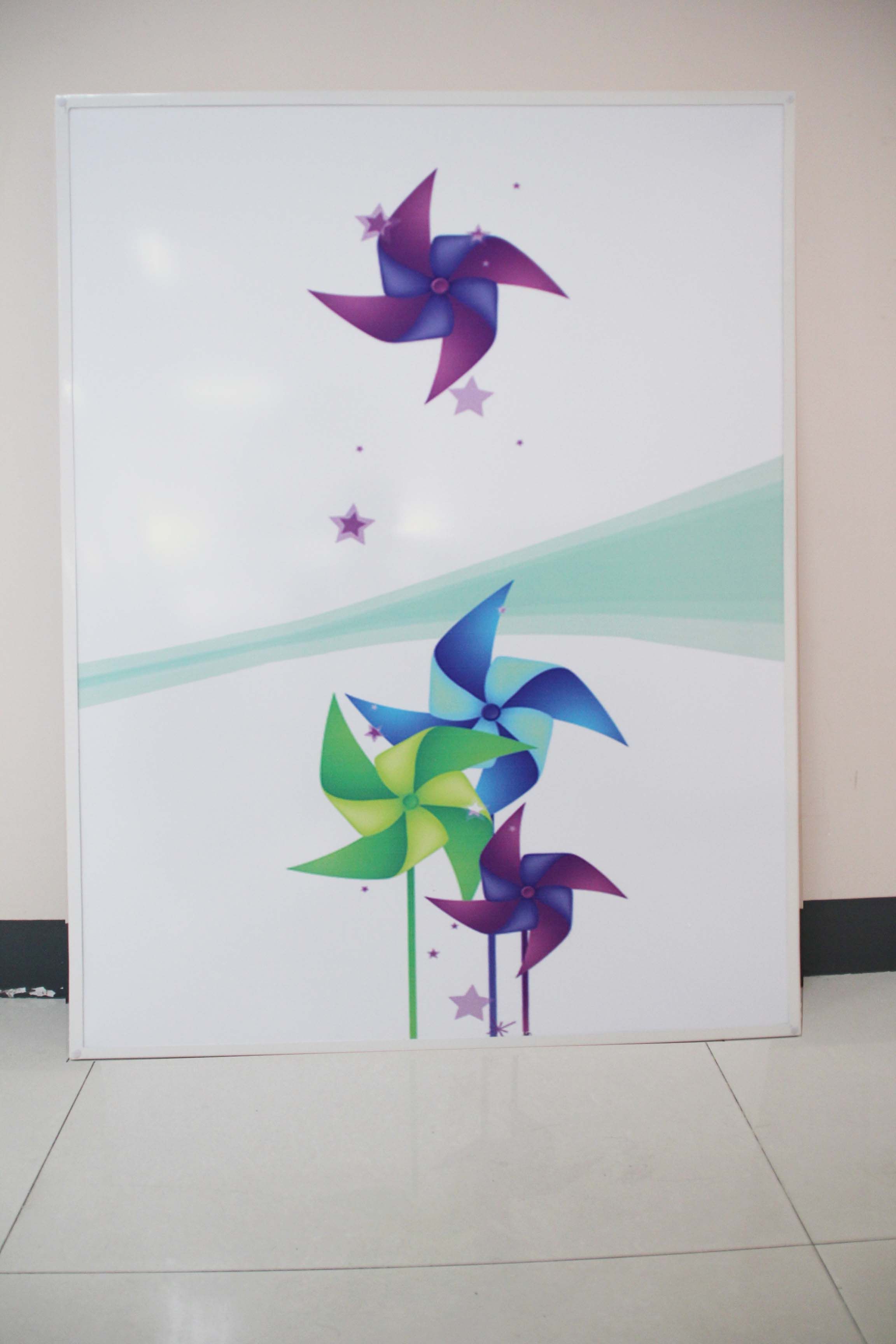

Color: White and colorful (with attractive picture)
Function: Adjustable Thermostat, Overheat Protection
Advantages and Our guaranteed service:
(1) Planar heating plate, adjustable thermostat, a comfortable not dry environment
(2) Rapid warming speed: Heating in 5 minutes
(3) High thermal efficiency: 98% heat transfer rate
(4)Economic energy: The running cost of electric heating plate is only 50% of air-conditioning and 1/3 than plumbing and heating cables.
(5) Safety: No wire, no current
(6) Safety, long time using for 100, 000 hours
(7) 5 years free warranty and all life service; Technical support
| Type | Sixe(mm) | Watt(w) | Volatage(v) | Heating Area(m2) |
| DXD01 | 600*600*20 | 250 | 110/220-240 | 2-4 |
| DXD02 | 980*490*20 | 350 | 110/220-240 | 3-5 |
| DXD03 | 1200*600*20 | 550 | 110/220-240 | 5-8 |
| DXD04 | 1200*900*20 | 750 | 110/220-240 | 8-10 |
| DXD05 | 1500*1000*20 | 950 | 110/220-240 | 10-15 |
Dexiang Co. Is the biggest infrared panel heater manufacturer in China, the leader in industry.
Dexiang Infrared panel heater products are CE / RoHS / ETL / SAA / UL / ISO / CCC certified.
Dexiang covers more than 60000 m2, total more than 260 employees. Annual turnover over 200 million. Annual out put over 200000 PCS panels.
Dexiang have developed series of infrared heaters-de xiang heaters- which include low-temperature far infrared wall panel; Far infrared electric heat painting; Carbon crystal electric floor heat panel; Carbon crystal electric foot warm pad; Carbon crystal far infrared cushion. With advantages of energy saving, comfortable, environmental friendly, warmth, easy installation, healthy, security and economical, quite etc, de xiang new carbon crystal electric products have aroused wide attention and recognition both inner market and abroad. At the same time, de xiang carbon crystal electric heaters full fill many blanks and solve problems in heating industry. Dexiang becomes the leading enterprise of infrared heaters in China. And carbon crystal electric heating accordingly becomes a revolutionary symbol in electrical heating industry.
