Product Specifications
| Prod Model: |
Laminated Glass |
| Type: |
Float Glass |
| Shape: |
Flat |
| Appearance: |
Flat |
| Structure: |
Solid |
| Layer Type: |
Common Laminated Glass |
| Function: |
Anti-theft |
| Melting Point: |
High Temperature |
| Production: |
Dry Laminated Glass |
| Usage: |
Roof, Fin, Stair, Bulletproof |
| Intermediate Film: |
PVB, Sgp |
| Color: |
Clear, Grey, Green, Blue, Bronze, Gold Color |
Product Description

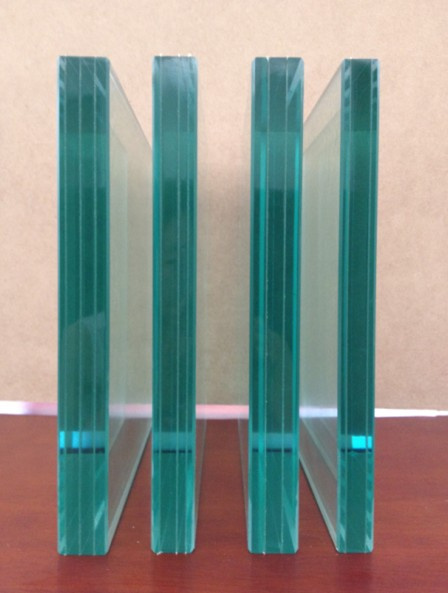

Product DescriptionLaminated glass is a multifunctional glazing material that can be used in a variety of applications. It is manufactured permanently bonding two or more glass lites with polyvinyl butyral (PVB) interlayers, under heat and pressure, to create a single construction. If broken by impact, laminated glass tends to maintain the building envelope by remaining integral in its frame. This minimizes the risk of injury from sharp edges and flying or falling glass particles. It also strongly resists penetration of objects. Laminated glass is particularly suitable where it is important to ensure integrity of the whole sheet after breakage
PVB thickness: 0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.90mm, 2.28mm
SGP thickness: 0.89mm, 1.52mm. 2.28mm
FEATURES1) Extremely high safety: The PVB interlayer withstands penetration from impact.
2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.
3) Create aesthetic sense to building: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.
4) Sound control: PVB interlayer is an effective absorber of sound.
5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains for fading effect.
Item Specification
Comparasion between PVB and SGP: 1. Tearing strength of SGP is 5 times than PVB.
2. Rigidity of SGP is 100 times than PVB.
3. SGP can improve the performance of bulletproof glass, and only need less layers of glass compared with PVB.
4. SGP can bear higher temperature than PVB.
5. Longer uselife for SGP than PVB.
6. SGP has Strong anti-impact than PVB.
Capability for laminated glass:Glass colors: blue, crystal grey, Euro grey glass, bronze glass, ocean blue glass, light blue glass, French green glass, clear glass, low-iron / extra clear glass.
PVB colors: yellow, red, green, grey, semitransparent, milky white, bronze, blue, purple, pink colors, etc.
Max size: 2500mm*7800mm
Min size: 300*300mm
Delivery time: 15 days

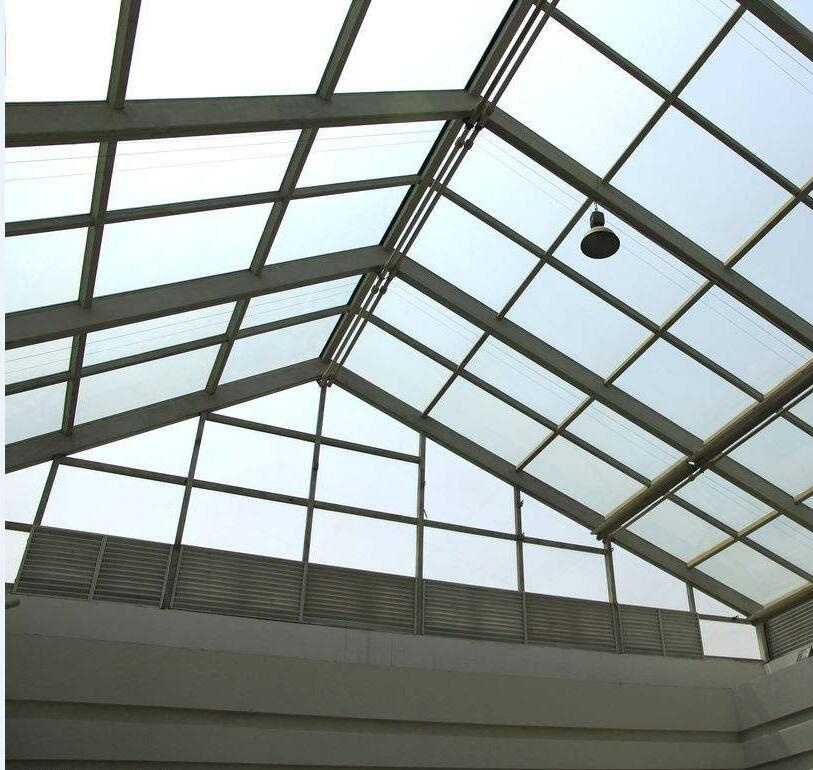

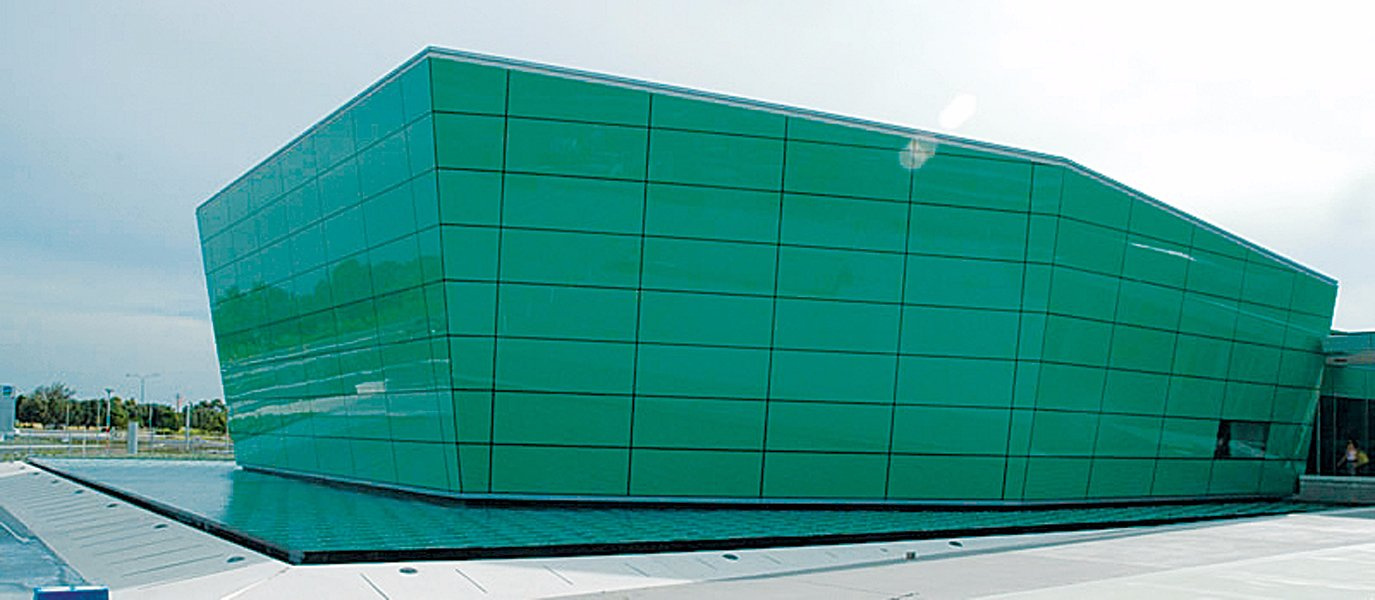

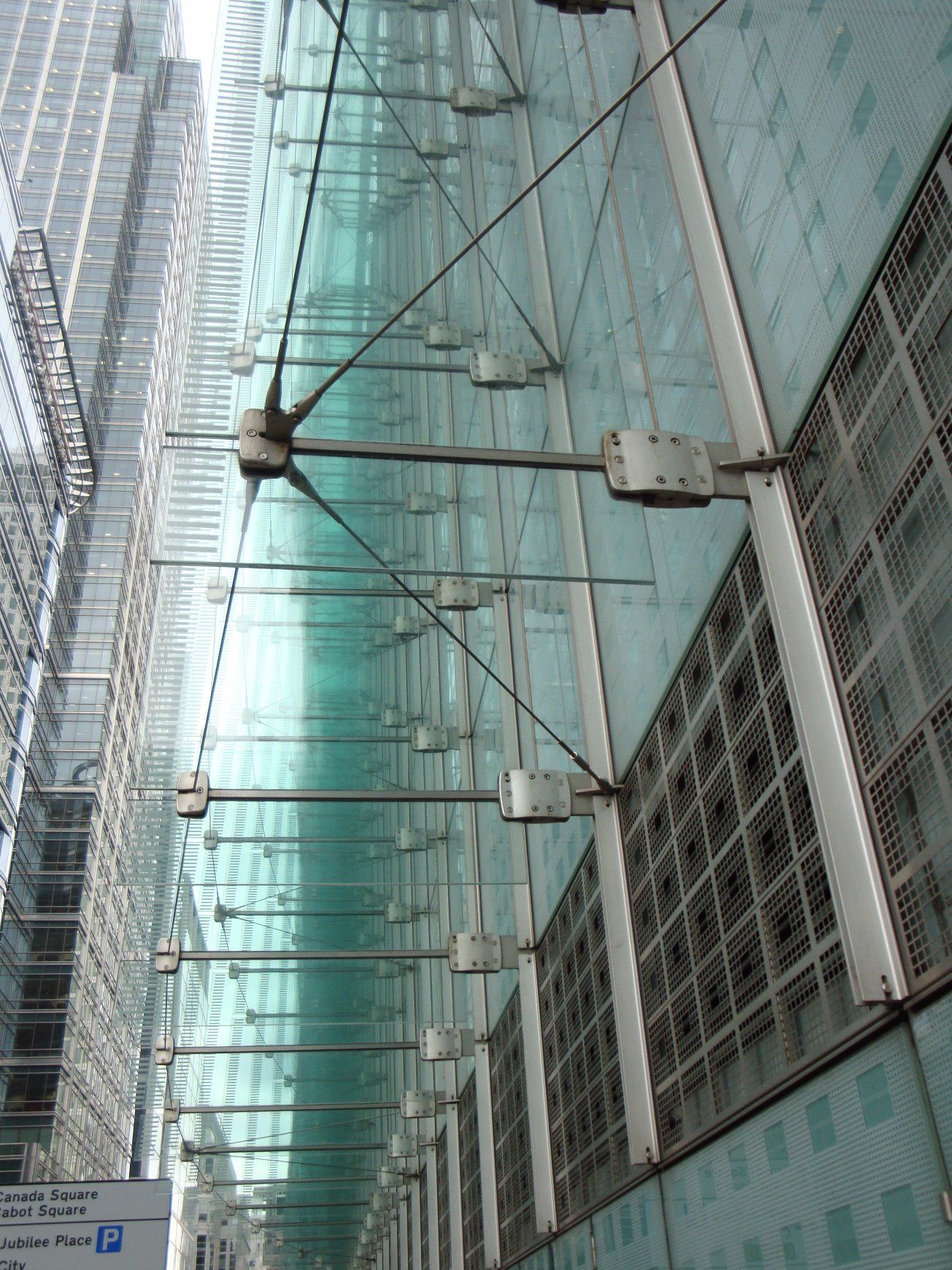

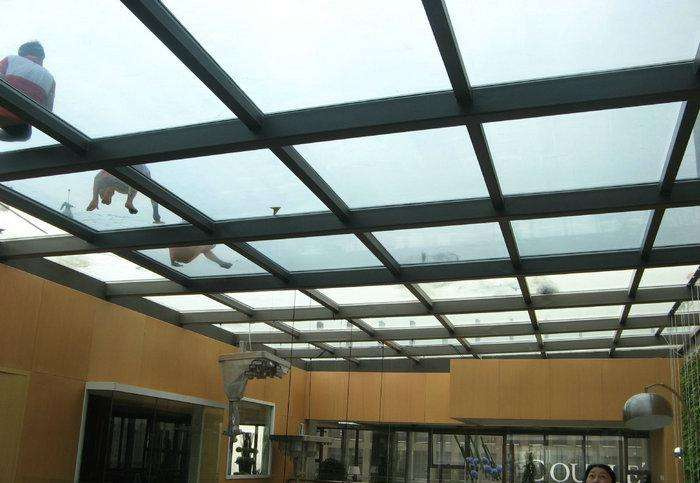

Projects use
Dongguan Jinghai Glass Co., Ltd abbreviates Jingglass, locates in famous manufacturing industrial city Dongguan, Guangdong province, China. Having more than 15 years experience in domestic and overseas architecture glass markets. Supplying a comprehensive range of products including laminated safety glass, tempered safety glass, low e insulated glass, reflective glass, ceramic frit glass, tempered glass, curved tempered glass, heat strenghened glass, fire proof glass, bullet proof glass, ultra clear glass(low iron glass), etc for curtain wall shower doors, windows, facades and furniture applications.

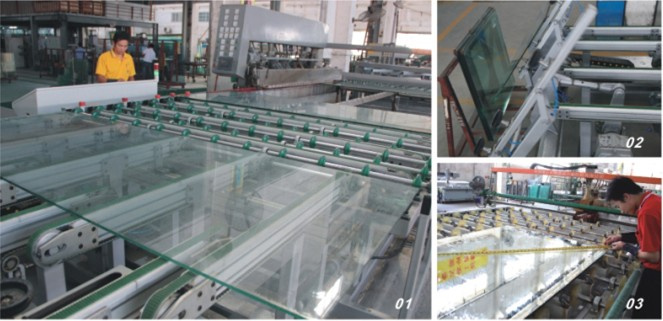

Possessing fully Austria Lisec automated float production lines, Finland TAMGLASS tempered furnace, Switzerland Bystronic automatic insulating glass production line, Italy Bottero two side edging equipment, USA's Applied Films Group and Germany's Von Ardenne Low-E coating line, Finland GLASSROBOTS laminated glass production line which make us more professional and compettive, our toatal prodution capacity is 5000, 000 tons per year.
Our glass pass Australian CSI certificates, US IGCC SGCC certificates, European CE certificates and Chinese national certificates. Now we are working with customers in over 68 countries. We are committed to providing global customers with safety, energy saving, practical, excellent products and satisfactory service.
