Best Service Horizontal Lathe CNC Turning Machine Lathe Ck6140b

Best Service Horizontal Lathe CNC Turning Machine Lathe Ck6140b
Price: US $ 9000-9700/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Product Specifications


Prod Model: CK6140B
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

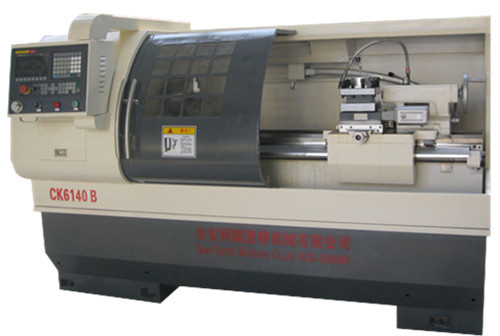

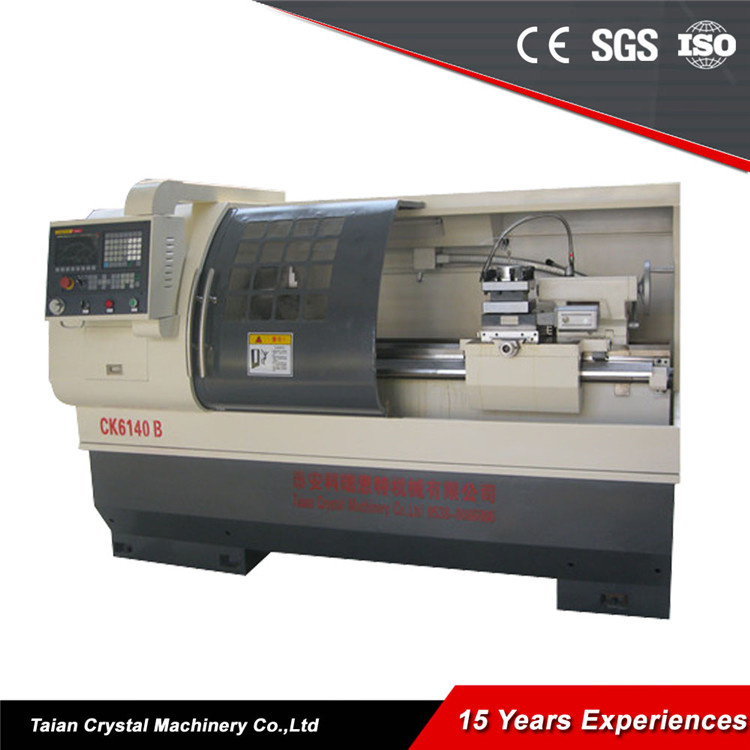

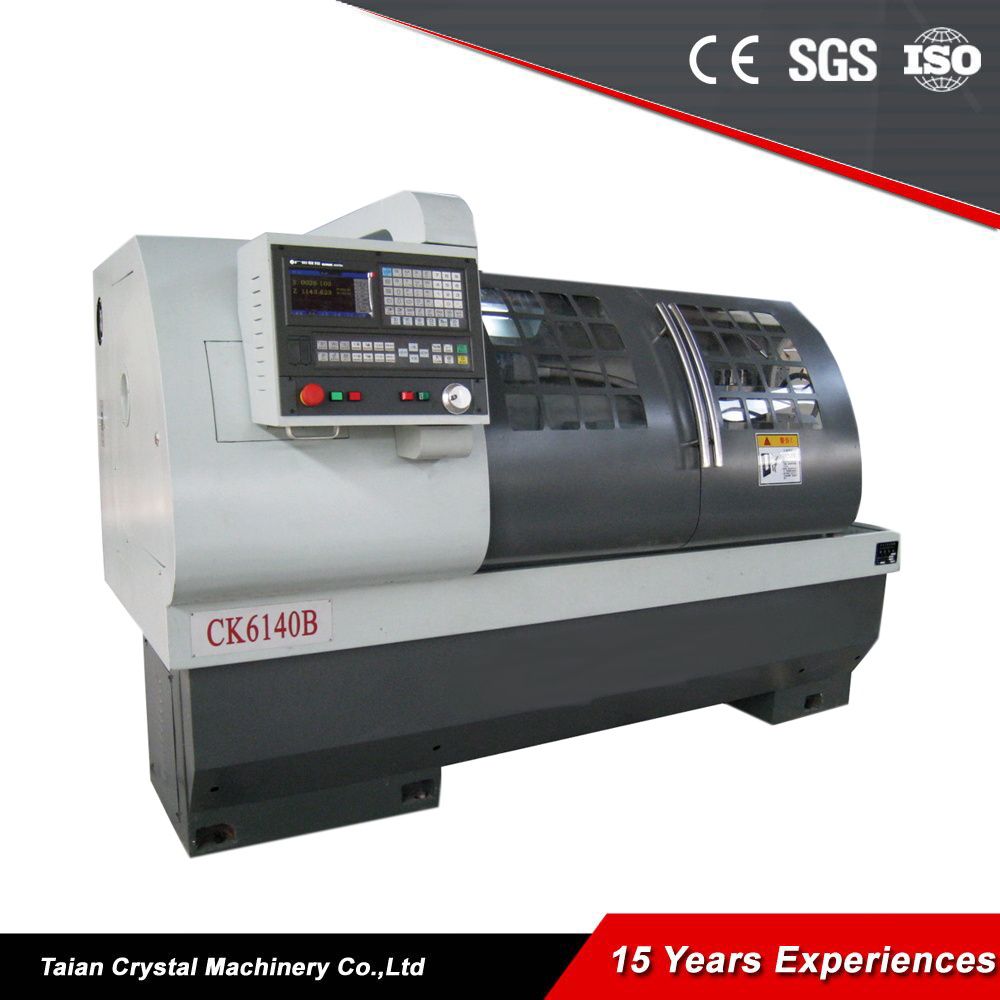

Best service Horizontal lathe CNC Turning Machine CK6140B





Product Description
 A. CK6140B configuration

1.  2 gears

2  Frequency conversion step-less speed regulation

3.  CNC system: GSK928TD-L

4.  Automatic electronic pump lubrication

5.  3-jaw chuck(10')

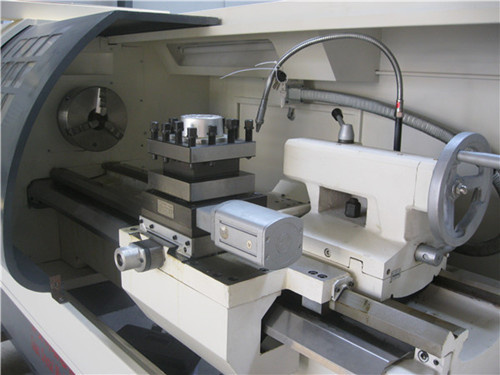

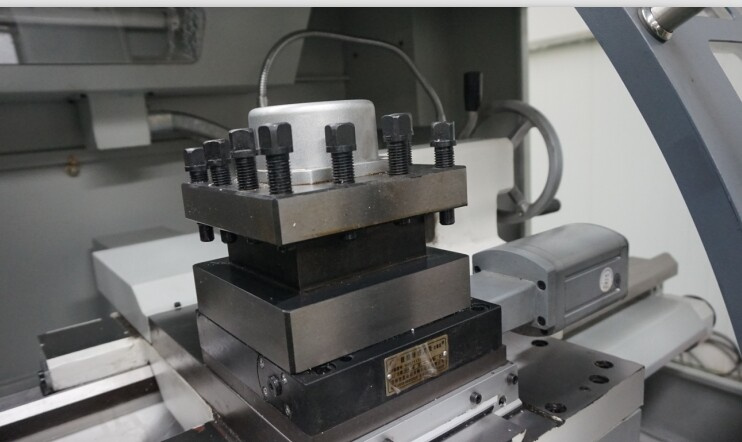

6  4-station electrical tool carrier


B. Specifications of Lathe Machine

ItemsSpecifications
Max. swim over bedΦ400mm
Max.swim over carriageΦ245mm
Max.length of work piece)750mm
Size of three-jaw chuckΦ250mm
Range of spindle speed60-400  280~1800rpm
(2 gears)
Spindle  boreΦ52mm
Taper of spindle boreMT5
stations of tool carrier4/6/8/
Max.size of tool post25×25mm
Min.setting unit of motor(Z) axis  0.001mm
(X) axis  0.001mm
Moving speed of post(Z) axis 8 m/min
(X) axis 6m/min
Taper of tailstock quillMT4
Max. range of tailstock quill120mm
Motor power5.5KW
Packing size (mm)2050mm×1400 mm×1650mm
Net weight2100kg










Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
