Product Specifications
| Prod Model: |
BW540 |
| LED Display: |
10.4 Inch High Resolution |
| Language Input: |
Multi-Language Input |
| Main Unit Weight: |
4.5kg(Without Accessories) |
| Main Unit Dimension: |
256 X 150 X 326mm(L x W x H) |
| Keyboard: |
Light-up Keyboard for Good Visibility |
| Image Storage: |
4G Hard Disk to Permanently Store |
| Adaptor Output: |
DC12.8V 3.0A |
| Power Supply: |
100-240V~ 1.2-0.6A, 50-60Hz |
Product Description

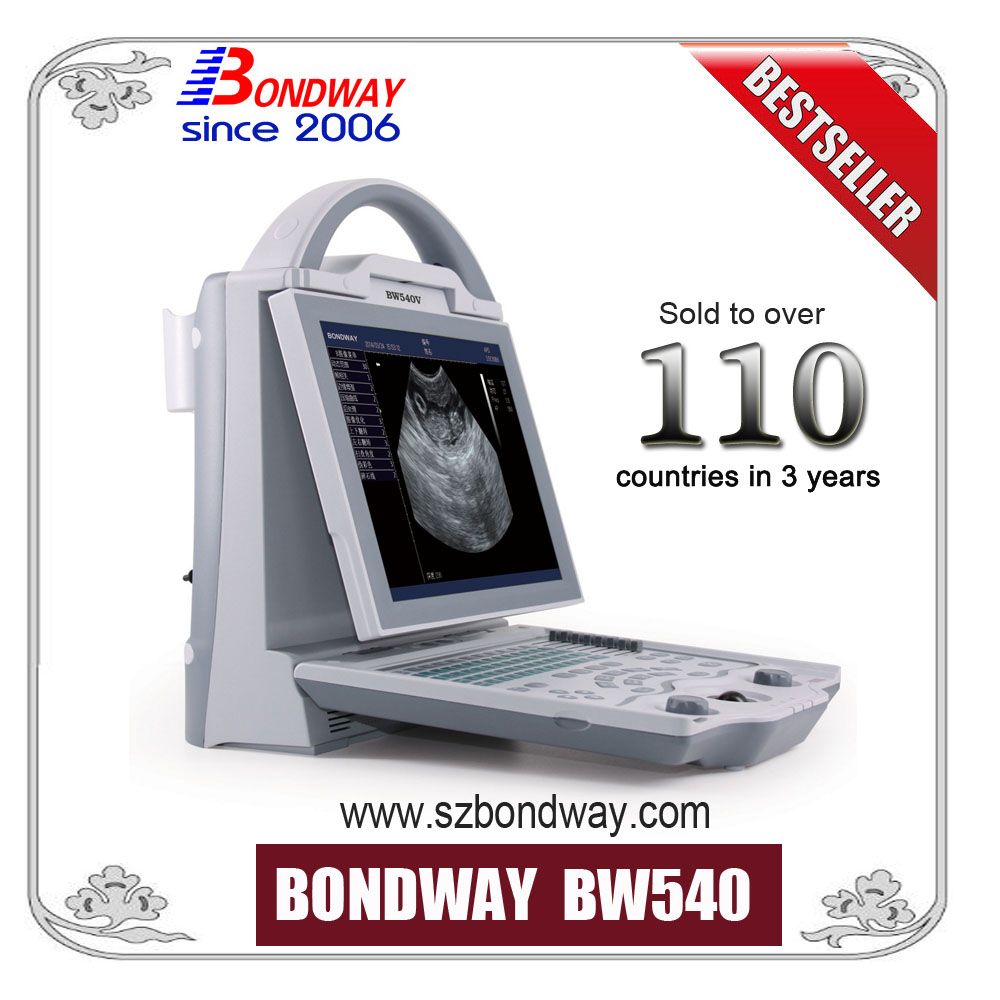

Full DIGITAL Portable Ultrasound Scanner
Item No.: BW540
Standard Configuration1. Main unit with 10.4-inch Color LED monitor
2. 2.0/2.5/3.5/5.0MHz convex array probe
3. Rechargeable Lithium Battery (each supporting 200-minute operation)
4. Power Adapter
5. Operation Manual (English Version)
Optional Parts1. 4.0/5.0/6.5/7.5MHz transvaginal convex probe
2. 2.0/2.5/3.5/5.0MHz transtectal convex probe
3. 5.0/6.5/7.5/9.0MHz micro-convex probe
4. 5.0/6.5/7.5/9.0MHz high-frequency linear aray probe
5. Rechargeable lithium battery(4400mAh)
6. Mobile Trolley
7. Foot switch
8. Video recorder / thermal video graphic printer
9. Black handbag
10. Enthernet switch

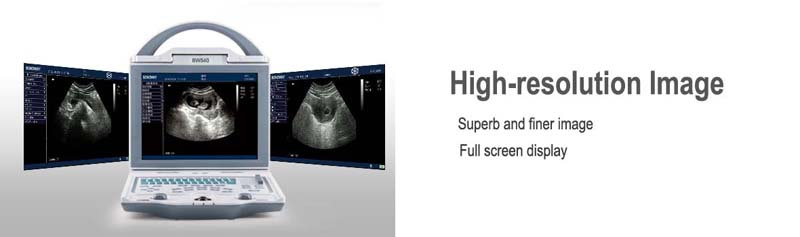

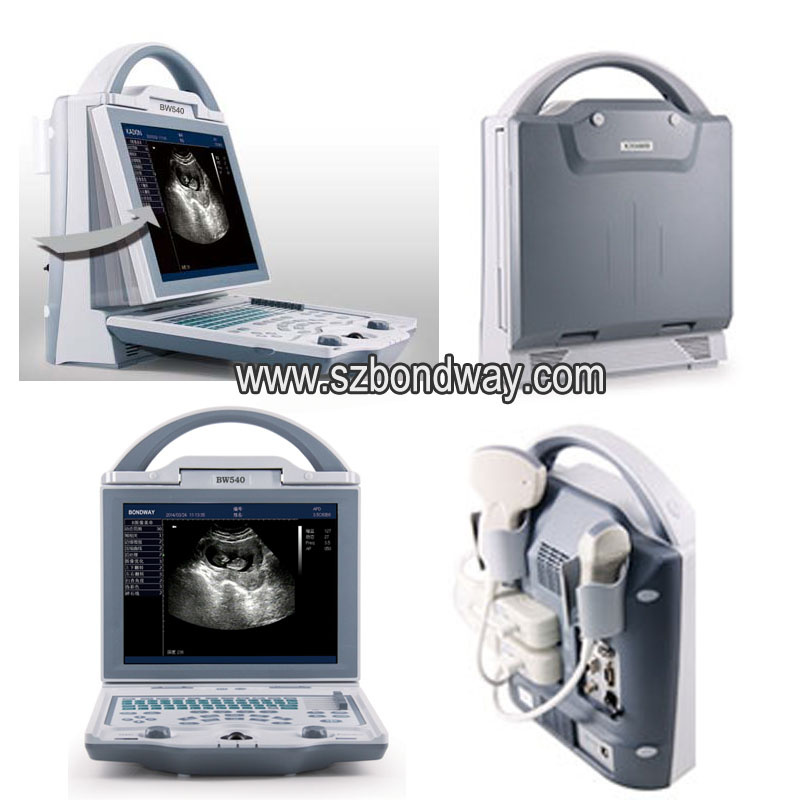

User-friendly design1. with 10.4-inch rotatable color LED monitor, high contrast and high brightness to ensure experinece of observing images at different viewing angle
2. One-key-lightup function for operating the machine in dark room
3. One-Key operation including one-key storage, one-key review and one-key printing
4. Quick search & review of images storedfor a higher working efficiency
5. Multi-functional knob design to realize one-key adjustment under various mode
6. CPU's temp-control function will shut it down automatically when its temperature becomes too high
Technical Parameter1. 10.4' high resolution color LED backlight display, with high contrast and wide viewing angle
2. Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable
3. Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
4. Two probe sockets, auto-identify different optional probe
5. Body marks: total 64 kinds body marks indicating probe position
6. Display mode: B 2B, B, B/M, M
7. Adjustable depth: 10 grades, max depth to 236mm
8. Contrast: 27 to 90dB
9. Gray scale: 256
10. 8 steps intelligent TGC
11. Frame frequency: 30 frames /second
12. 8 kinds pseudo colors
12. Image storage: 4G hard disk to permanently store about 5000 frames images without loss when power off
13. Cine loop: 256 frames
14. Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
15. The gravel software package with real-time position line measurement
16. Normal measurement: distance, perimeter, area, volume, angle, length and area stenosis ratio measurement
17. OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index, fetal growth curve and OB report
18. Urology measurement and analysis: residual urine volumem, prostate volume, and urology report
19. Dual TV output: PAL/NTSC, can connect video printer when necessary
20. Power supply:100-240V 1.2-0.6A frequency: 50-60Hz
Power supply adaptor output: DC12.8V 3.0A
21. Main unit weight: 4.5kg (without accessories)
22. Main unit dimension: 256*150*326mm (L*W*H)
Powerful software packages1. Professional lithiasis packages installed for real-time positioning of calculus.
2. OB measurement: 15 kinds of table and various GA measurement, AFI, Fetus growth curve, and OB reports auto-created
3. General GYN software packages and GYN report auto-created
4. Urological measurements: residual urine, volume of prostate, and urological reports auto-created

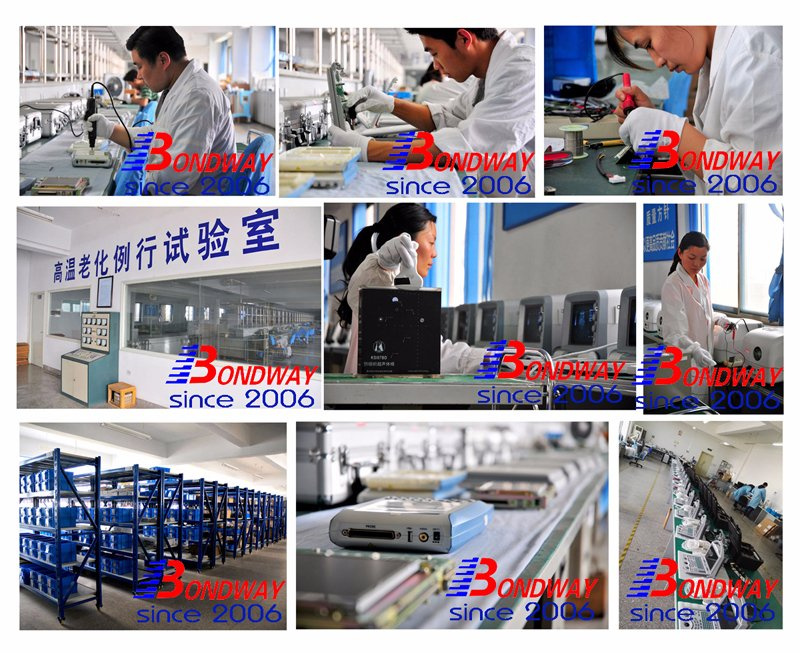

Shenzhen Bondway Electronics Co., Ltd is a reputed company, established on July 11, 2006 under the law of People' s Republic of China, dedicated to provide quality medical equipment to the GLOBAL market. As an professional manufacturer and experienced exporter, Bondway is aimed to supply high-quality products at an unbeatible price, we believe that during the days of economic and cultural globalization, the key point for running business successfully both home and abroad is to be creative, considerate, passionate, committed and industrious.
