Product Specifications
| Prod Model: |
YL-II-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
Flow Rate Type, Time Type |
| Resin: |
001×7 Strong Acidic Cation-Exchange |
| Working Ambient Temperature: |
5-50centigrade |
| Relative Humidity: |
Less Than 95%(25centigrade) |
| Hardness Of Raw Water: |
Less Than 8mmol/L |
| Material: |
FRP |
| Control Valve: |
Runcin or Fleck |
| Inlet Pressure: |
More Than 0.25MPa |
| Resin Weight: |
360kg |
| Brine Tank: |
300L |
| Working Principle: |
Ion Exchange |
| Certification: |
BV |
| Inlet Mode: |
Pipeline |
| Installation: |
Vertical |
| Heating Mode: |
No |
Product Description

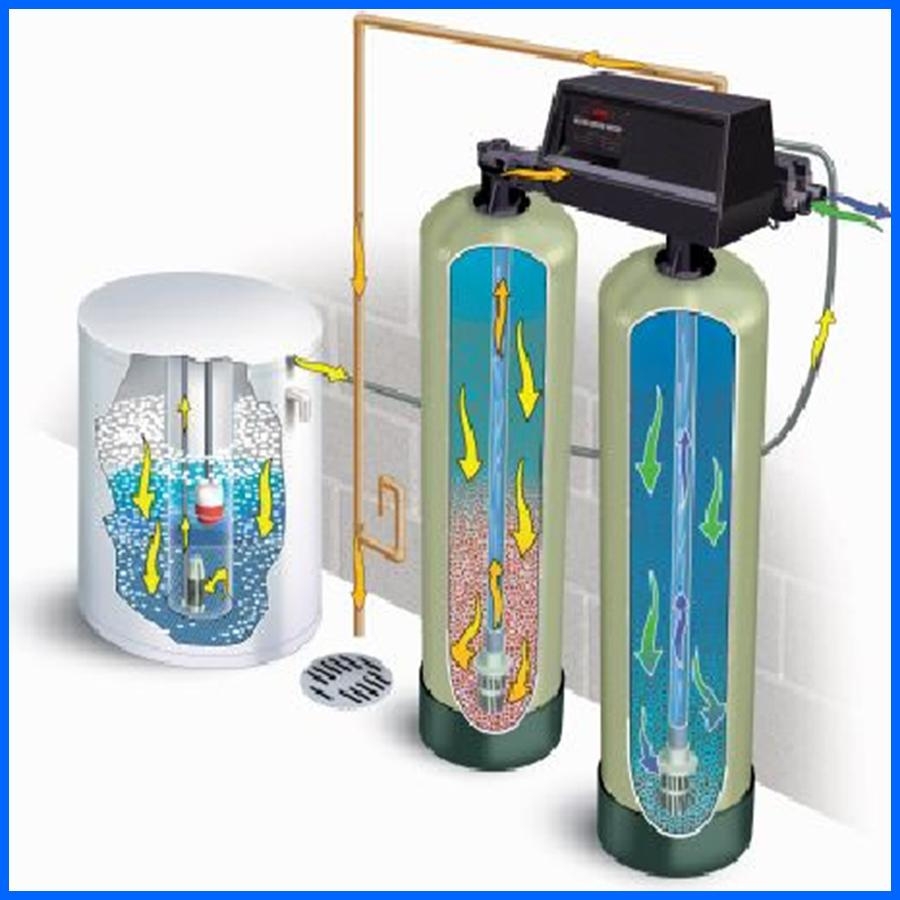

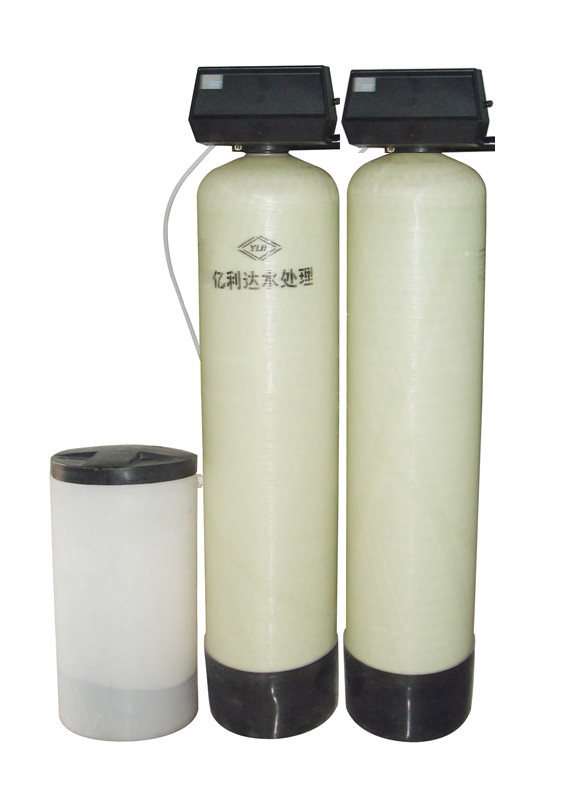

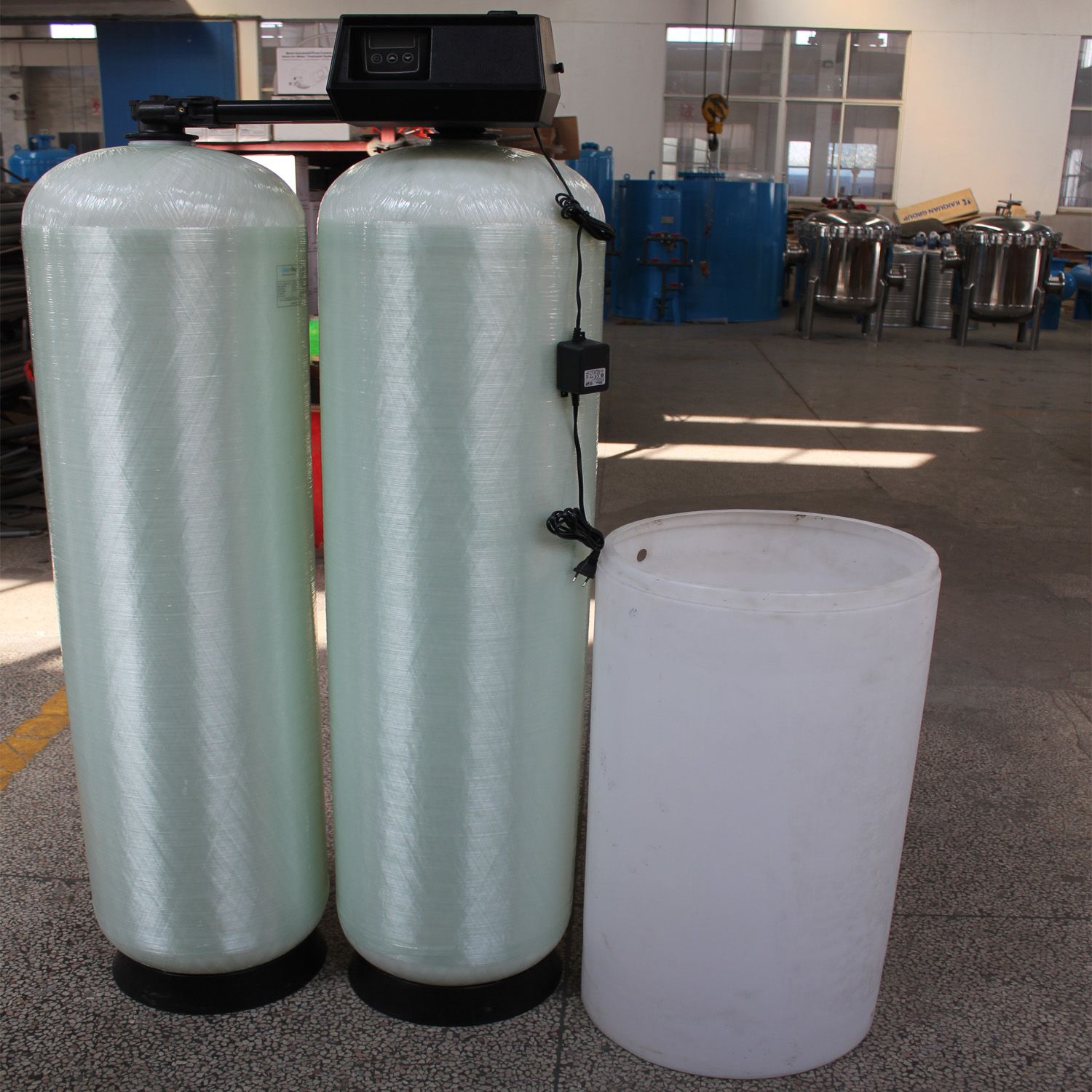

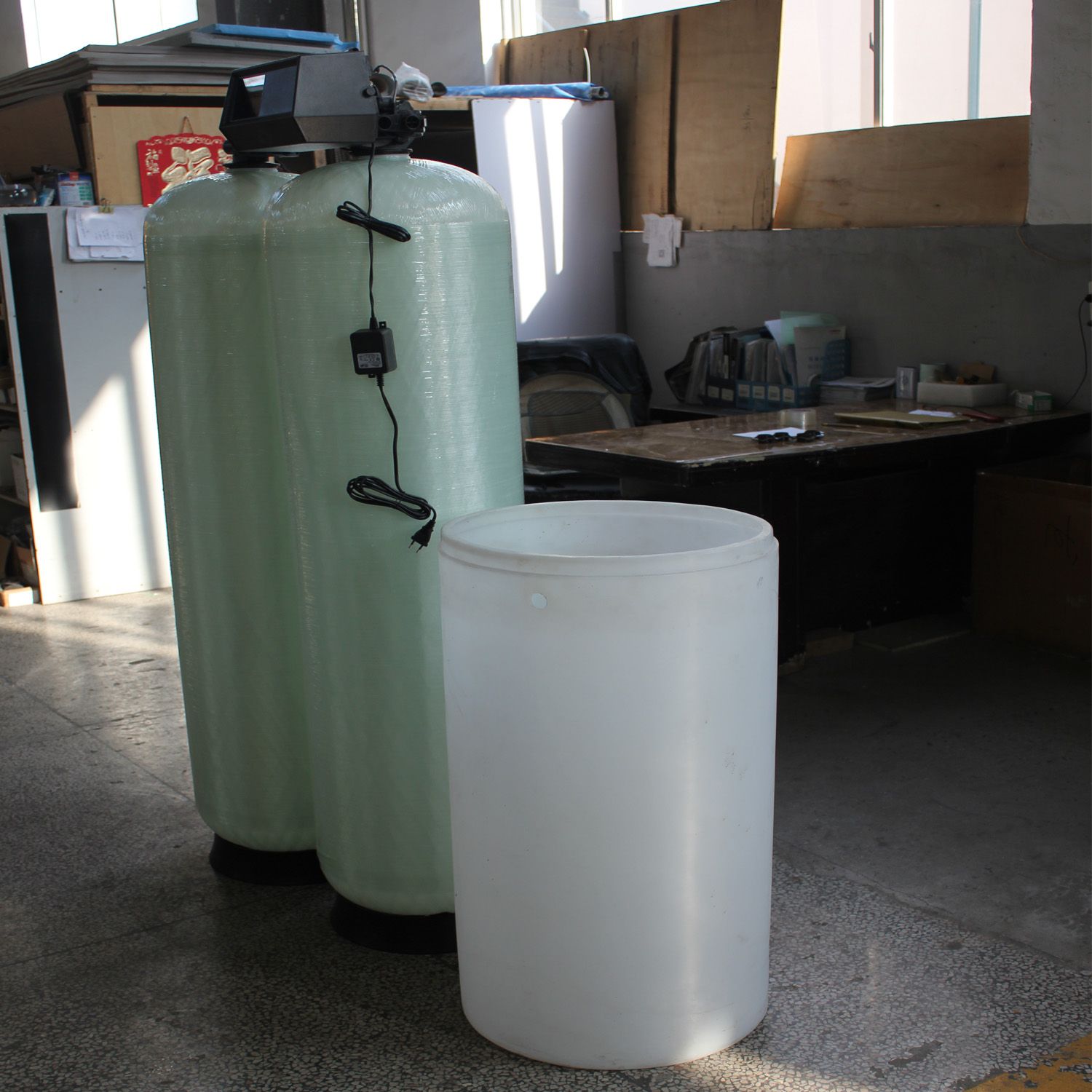

Automatic Water Softener with Double Fleck Valve
Detailed Product Description1. Wide applications
2. Simple operation
3. Automatic valve control
The Trouble With Hard WaterHard water (calcium & magnesium) is a common problem for many Homeowners and businesses. When hardness minerals are combined with Heat it forms troublesome scale. Scale causes costly build-up in your Plumbing, water heater and other water using appliances. When combined With soap, the minerals form soap curd or scum that makes skin dry and Itchy, hair lifeless, laundry dull and builds up on xtures.
Benefit From Softer Water:Silky shiny hair
Soft supple skin
Crystal clear dishes & glassware
Bright whites, vibrant colours
Easier cleaning
Use up to 75% less soap
Lower water heating cost by 29%
Protect plumbing & appliances
Extend life of laundry
Save as much as $479 annually
Cleaner, Better Soft Water
Features:Uses up to 65% less salt and 45% less water compared to competitive Mechanical metered units Energy ecient. Uses approximately $1.19* in electricity annually Warranty featuring proven piston, seal & spacer technology Fully adjustable cycles allow customization to the most ecient Settings based on specic water quality requirements A 'No Touch' rotating LCD information display continuously displays Real time performance data: Time/date, capacity, last regeneration Date, volume remaining (gallons), current ow rate, peak ow rate, Regeneration time High density polyethylene salt tank with lifetime warranty WQA Gold Seal Approved cation exchange resin Brine safety valve for added overow protection Plastic salt grid prevents salt bridging Unique precision turbine meter is incorporated in system bypass valve Saving space over 4" of oor space Time saving quick connect ttings on brine line, drain line (with 0-ring Seal) and power cord for fast and easy installations Available in Twin Tank or Cabinet models Attractive condensation jacket on twin tank models (up to 10")
| Category | Model | Recommended water yield
(M³/h) | Tank size
Diameter *Height(mm) | Salt box
(L) | Amount of resin(KG) |
Single-valve and single-tank | YL-I-0.5 | 0.5 | 200×900 | 25 | 20 |
| YL-I-1 | 1 | 250×1400 | 60 | 40 |
| YL-I-2 | 2 | 300×1400 | 200 | 60 |
| YL-I-3 | 3 | 350×1400 | 100 | 80 |
| YL-I-4 | 4 | 400×1650 | 200 | 120 |
| YL-I-5 | 5 | 500×1750 | 300 | 180 |
| YL-I-6 | 6 | 300×1900 | 350 | 240 |
| YL-I-10 | 8-10 | 750×1900 | 500 | 360 |
| YL-I-18 | 42-18 | 900×1900 | 800 | 520 |
| YL-I-25 | 18-25 | 1000×2200 | 1000 | 720 |
| YL-I-35 | 25-30 | 1200×2400 | 1500 | 1000 |
| YL-I-50 | 35-50 | 1500×2500 | 2000 | 6400 |
| Dual-valve and dual-tank (simultaneous operation and respective regeneration) | YL-II-36 | 24-36 | 900×1900 | 800 | 1040 |
| YL-II-50 | 36-50 | 1000×2200 | 1000 | 1440 |
| YL-II-70 | 50-70 | 1200×2400 | 1500 | 2000 |
| YL-II-100 | 70-100 | 1500×2500 | 2000 | 3200 |
Dual-valve and dual-tank(One for use and the other for standby) | YL-II-1 | 1 | 250×1400 | 60 | 80 |
| YL-II-2 | 2 | 300×1400 | 100 | 120 |
| YL-II-3 | 3 | 350×1400 | 100 | 160 |
| YL-II-4 | 4 | 400×1650 | 200 | 240 |
| YL-II-5 | 5 | 500×1750 | 300 | 360 |
| YL-II-6 | 6 | 600×1900 | 350 | 480 |
| YL-II-10 | 8-10 | 750×1900 | 500 | 720 |
| YL-II-18 | 12-18 | 900×1900 | 800 | 1040 |
| YL-II-25 | 18-25 | 1000×2200 | 1000 | 1440 |
| YL-II-35 | 25-35 | 1200×2400 | 1500 | 2000 |
| YL-II-50 | 35-50 | 1500×2500 | 2000 | 3200 |
