Product Specifications
| Prod Model: |
GD8-200A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Material: |
304 Stainless Steel |
| Pouch Type: |
Spout Pouch, Stand-up Pouch |
| Voltage: |
380V 3phase 50/60Hz |
| Compress Air: |
0.6m3/Min |
| Automatic Grade: |
Automatic |
| Application: |
Drinks |
| Driven Type: |
Electric |
| Packaging Material: |
Composite Materials |
| Packaging Type: |
Bags |
| Material Type: |
Solid/Liquid/Powder etc |
Product Description

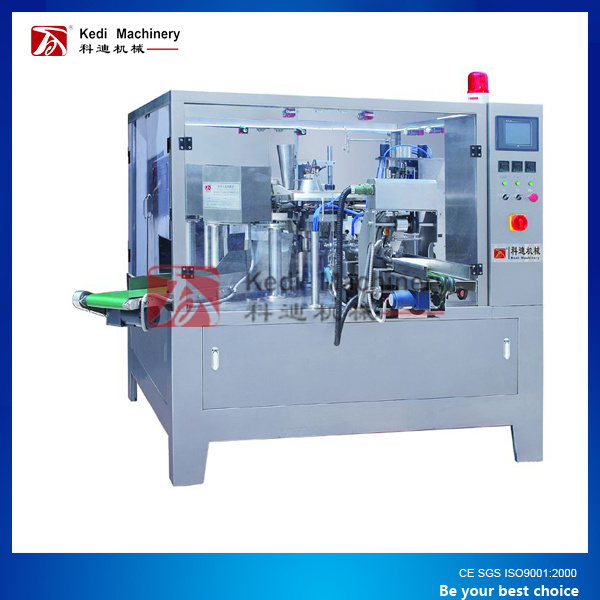

Automatic rotary food packaging Machine(GD8-200A) filling and sealing machine
Functions and features:
1) Packaging procedures: Clip the bag, print codes, open bags 1, open bags 2(blowing), fill and vibrate bags, heat and seal bags1, heat-sealing2, forming and output packages.
2) Totally automatically controlled by computer: Adopts imported PLC and actuator,
With reliable and safe operation and easy maintenance, without pollution.
3) Adopts frequency governor to regulate the speed.
4) Good sealing quality and very low bag broken rate.
5) The shaping step is especially designed to keep the sealing from breaking, so
The sealing is flat and smooth.
6) The machine body adopts advanced plastic spraying technology, while the parts
That contact the materials are made of stainless steel, so it has a good standard
Hygiene, anticorrosive property and long service time.
7) According to the packing materials' demands, you can choose automatic metering
Mechanism, automatic screw filling machine, intelligent function scale and other
Products suitable for automatic metering, which are combined into an automatic
Assembly line (also can pack through manual material feeding).
8) With different feeders changed to pack solid, liquid, thick liquid and powder.
Applications:
1) Solid species: Candy, peanuts, green beans, pistachios, crystal candy, brown sugar,
Cookies, cakes, daily commodities, cooked food, pickles, puffed food.
2) Granule species: Grain, refined monosodium glutamate, granular drug, capsules,
Seeds, chemistry condiment, granulated sugar, chicken essence, melon seeds, nutlets,
Pesticide, fertilizer, feed.
3) Liquid species: Detergent, millet wine, soy sauce, vinegar, fruit juice, drinks.
4) Thick liquid species: Tomato sauce, peanut butter, jam, chilli sauce, bean sauce.
5) Scattered substance species: Milk powder, grape sugar, washing powder, chemistry
Condiment, refined sugar, pesticide, fertilizer.
6) Materials that can be packed in bags.
Specifications:
1) Working position of machinery: Eight working positions.
2) Scaling scope: 5 - 1, 000g
3) The styles of packaging bag: Portable bags, hand luggage, zipper bags, 4-side
Edging bags, 3-side edging bags, paper bags.
4) Speed: 60 packs/min (max. )
5) Size of bag: 100 - 210mm (M) x 350mm (L)
6) Total power: 2.1kW
7) Weight: 1, 200kg
8) Dimensions: 2, 500 x 1, 800 x 1, 800mm
FAQS
Q1:Are you a trading company or manufacture?
A1: Kedi is a professional manufacturer with experience over 20 years. Now we have new factory in Wenzhou .Your order will be controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 30-45 days upon order confirmation.
Q3: What is your packing pattern?
A3: Special export wooden packing
Q4: How about your service?
A4:Engineers available to service machinery overseas
Q5: How about your product?
A5: Kedi has the standard production and complete quality control system to ensure high quality
products. Our products get ISO. CE.SGS
Q6:How to choose the machine type for our bags?
A6: Pls support us the following information about the bag and the food.
1) bag pattern
2)bag size
3)the filling weight or volume
4)material of food: powder/liquid/paste/granular/massiveness
5)sample bags or pictures
SUPPORT
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
Any questions, Welcome to contact us !
WENZHOU KEDI MACHINERY CO.,LTD.
Add: 2# Wansheng Road, Wanquan Industry Zone, Pingyang County, Wenzhou City, Zhejiang Province, China
Tel: +86-577-63080788 Fax: +86-577-63080018
web: http://www.cnkedi.com
Sanny chen
Wenzhou Kedi Machinery Co., Ltd., located in Wanquan Industrial Zone, Pingyang, Zhejiang, is the excellent manufacturer of automatic pouch fpacking machine. We have advanced producing equipments, perfect quality guarantee system and best after -service system to ensure our leading position in this field.
Kedi Machinery Co., Ltd is specialized in manufacturing different kinds of automatic rotary packer. Our machines adopt imported PLC, man-machine interface and pneumatic components. We use of different manufacturing engineering's according to different packaging materials and use of newest technology and techniques continuously. We are developing new products actively and afford newest products and perfect services to foods, chemicals, pharmaceuticals, seeds and other industrial fields.
KEDI will scrupulously abide by the principles and commitments "adhere to the scientific and technological innovation, carry out the implementation of brand strategy, supply excellent quality products, implementation of the first-class service". Welcome all of you presence and guidance!
