Product Specifications
| Prod Model: |
KTG-9101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Ultrasonic Rhinestones Hot Fix Machine |
| Voltage: |
110/220V |
| Power(W): |
300W |
| Material: |
Rhinestone / Rhinestones / Strass |
| Work Size: |
1-10mm |
| Speed: |
110-220PCS/Min |
| Feature: |
Two Dics |
| Weight: |
78kg |
| Dimension(L*W*H): |
L650*W800*H1080mm |
| Type: |
Garment |
| Classification: |
Rhinestone Fixing Machine |
Product Description

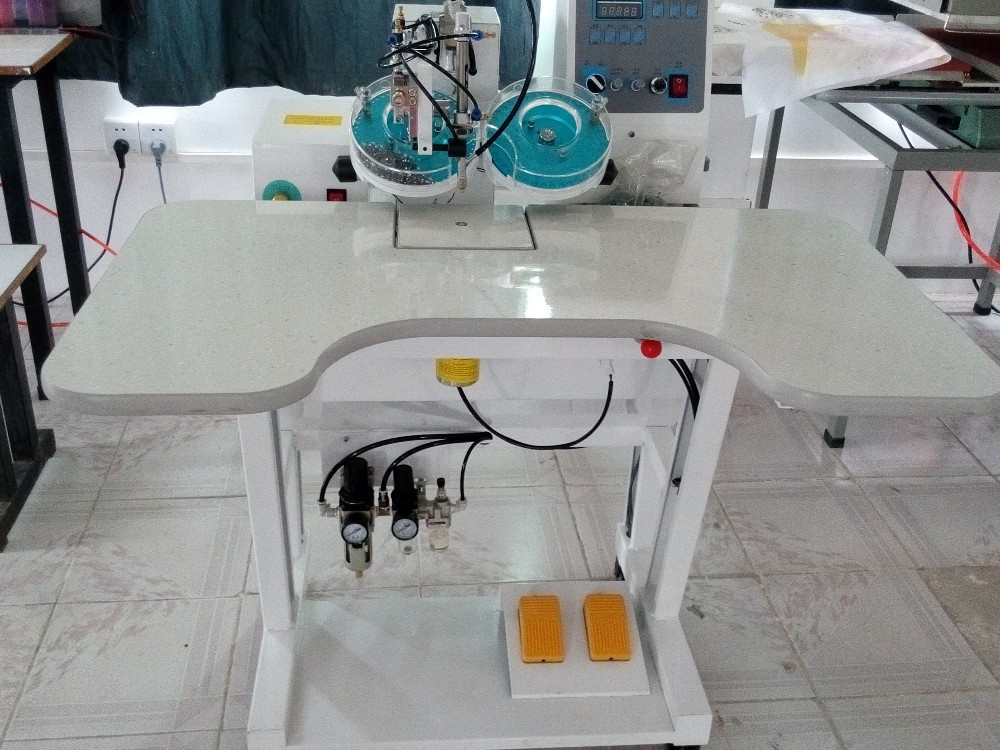

Automatic rhinestone setter /automatic applicator
FEATURES:
1 reliable work quality
2 easy & simple operation
3 special do work in #10 & #12 rhinestone
4 Powerful and durable ultrasonic system
5 equipped with international brand parts for assure quality
6 Equipped with laser marking light
7 Equipped with new rotation system
8 low sound
9 Paint with Orange spray & hot bake
10 can produce machine according to customer's special technique requirement
11 paint : very good quality with hot bake & orange spray
12 available color : green & blue
13 give full 1 year warranty for all electrical card (control card & ultrasonic both)
Specification:
1 Workable items: rhinestone , rhinestuds
2 Workable sizes: SS8-SS20 / 3mm-5mm
3 Material calss : China B class to Austria Swarovski
4 head: 1-8 head
5 color : 1-4 color
6 work area : 450*450mm
400*680/800mm
400*800*1200/1300mm
(can make according customer's special request)
7 control system : huagui
8 LCD : 5 inch
9 memorry : 10 million stitch
10 design format : DST (TAJIMA ternary code)
11 input: USB
12 Minimum space : 0.6mm
13 Work speed: 20-200 piece/min
14 language : Chinese / English
15 Power source :220 V /110V ,1-PH , 50/60 Hz ; 380 V ,1-PH , 50/60 Hz
16 Efficiency: 500W
17 heating system: ultrasonic
18 frame motor : step motor
19 cylinder : germany fst
20 vacuum : japan smc
21 solenoid : korea
22 Air pres:sure 5-6 kg/cm
23 Pack: wooden pack with fumigation inside is with water proof
Applications:
Embroideries ; women's clothes , t-shirt ,jeans , children's wear , shoes , hats , bags , ties , all other fashion decorating items.workable placeTailoring shops , garment factory .
Working theory
Ultrasonic rhinestone fixing is to use high frequency sound waves of ultrasonic generator can produce high voltage, high frequency signal, by changing the system, the signal is converted to high-frequency mechanical vibration, and on the diamond and glue, when the temperature reaches the melting point of the diamond and glue itself, make its rapid melting, and then fill in the space between the interface, when vibration stops, diamond and glue under certain pressure cooling setting at the same time, a hot drilling effect thereby.
Technical parameters
Model |
KTG-7102 |
KTG-9101 |
KTG9101S |
Product name |
Portable rhinestone machine |
Ultrasonic single head hot fix machine |
Ultrasonic Double heads hot fix machine |
Voltage |
110V/220V |
220V |
220V |
Power |
300W |
300W |
300W |
Diamond size |
1-10mm |
1-10mm |
1-10mm |
Speed |
60-120pcs/min |
110-220pcs/min |
110-220pcs/min |
Size |
L268*W168*H198mm |
L650*W800*H1080mm |
L650*W800*H1080mm |
Weight |
7kg |
78KG |
88kg |
