| Price: | US $ 5500-8500/Piece |
|---|---|
| Trade Terms: | others |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | HD-E808-200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO9001: 2008 |
| Warranty Period: | 12 Months |
| Type: | Salt Spray Testing Machine |
| Weight: | 100-500Kg |
| Power Source: | AC220V |

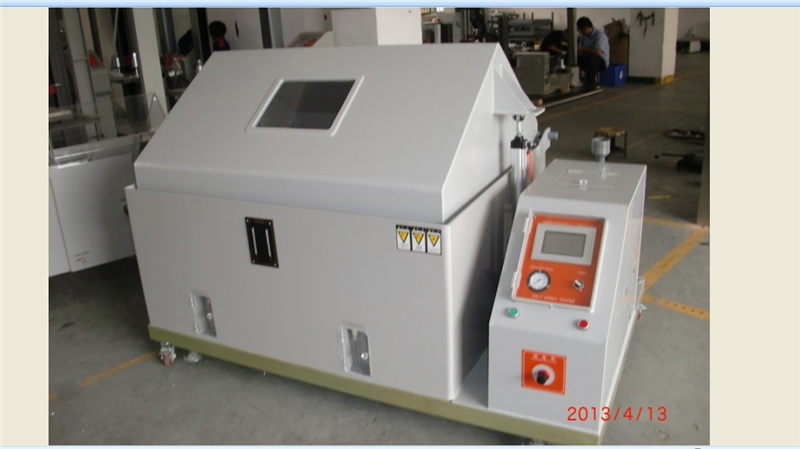

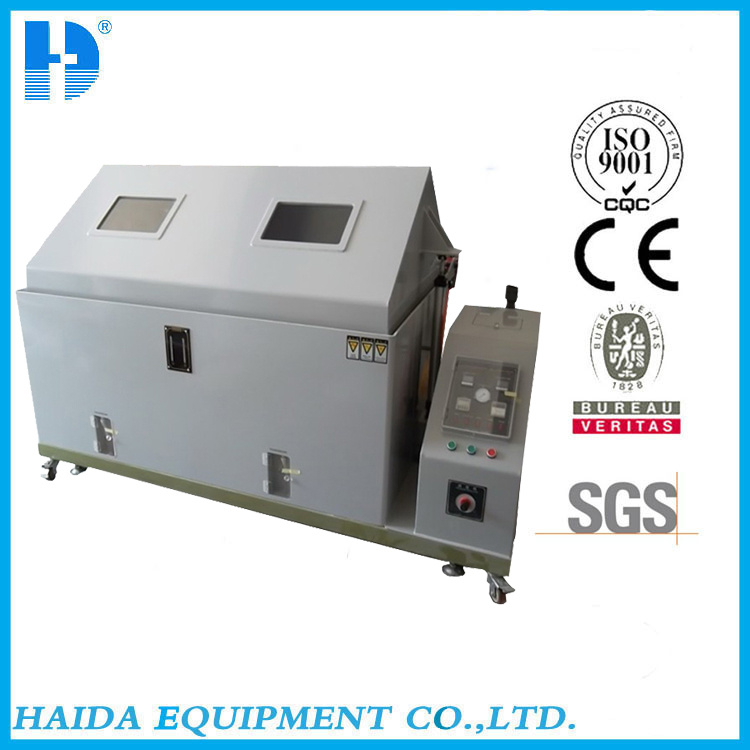

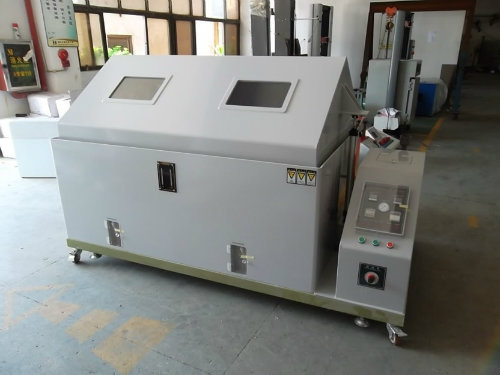

Automatic Plastic Salt Spray Test Machine (HD-200)
Introduction:
Programmable used salt spray chamber price is applicable for various kinds material's surface treatment, such as after coating, electroplate, inorganic and organic membrane dermails, negative pole with antirust oil treatment etc anti-corrosive treatment to test the corrosion-resistance of the product .
Applicable Industries:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Design standard:
CNS:3627,3385,4159,7669,8886;
JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: B117,B268.
Control System:
High precision P.I.D.temperature control meter with its error ±0.1°C.
Purpose:
Programmable Salt Spray chamber is applicable for the salt spray corrosive test for the protection layer of components,parts, electronic and electrical parts and metal materials and industrial products. Salt Spray Test Instrument
Chamber Structure:
1. Salt spray chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.

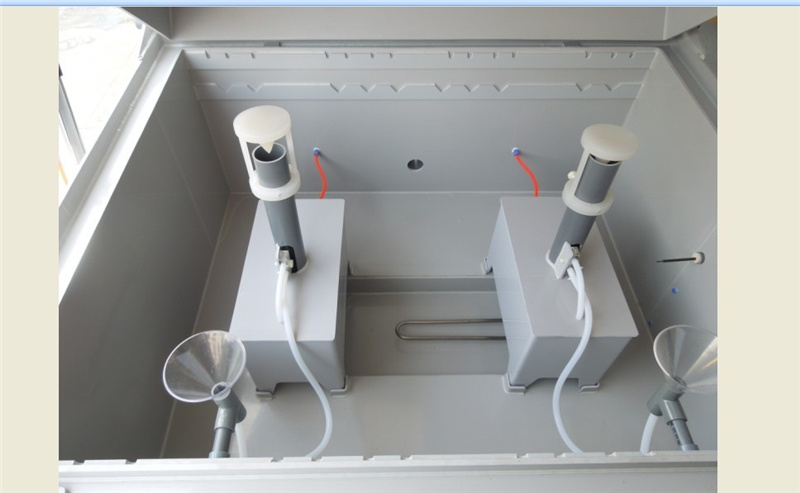

3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
Main technical parameters:
Model | HD-60A-1 | HD-90A-1 | HD-120A-1 |
Inner box size: | 60×40×45 | 90×60×50 | 120×100×50 |
Outside box size: | 107×60×118 | 141×88×128 | 190×130×140 |
Equipment material: | Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C. | ||
Temperature range: | 35°C~55°C | ||
Temperature fluctuations: | ≤±0.5°C | ||
Temperature uniformity: | ≤±2°C | ||
Temperature precision: | ±1°C | ||
Test chamber temperature | NSS ACSS 35±1°C CASS:50±1°C | ||
Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
Brine temperature: | 35°C±1°C | ||
Spray quantity: | 1.0~2.0 ml / 80cm2 / hr | ||
PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 | ||
Lab volume: | 108L | 270L | 600L |
Brine tank capacity: | 15L | 25L | 40L |
Power: | 1AC220V,10A | 1AC220V,15A | AC 1,220V,30A |
Multiple safety protection devices: | Water shortage/ over temperature / phase protection | ||
Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Features:
1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.
9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.

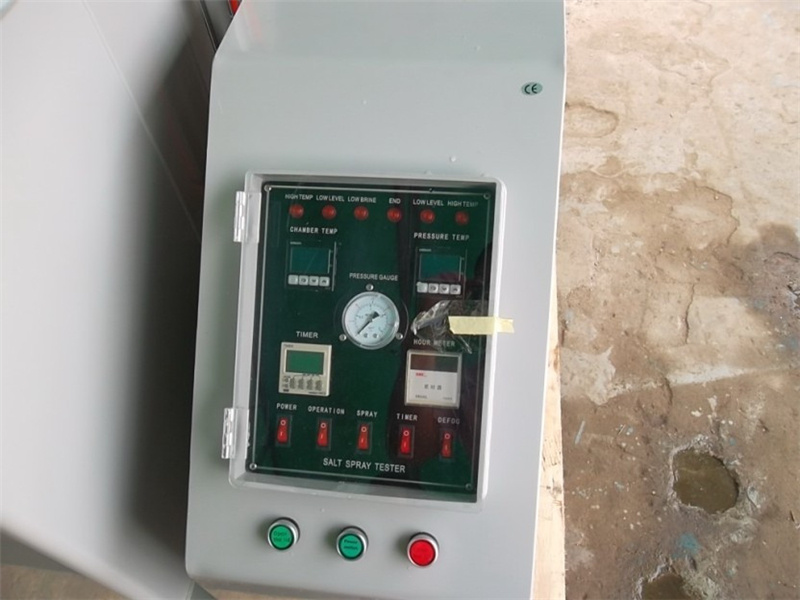

11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower.
