Product Specifications
| Prod Model: |
GD6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

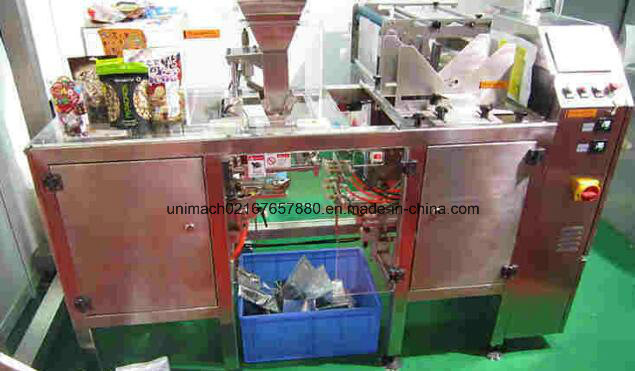

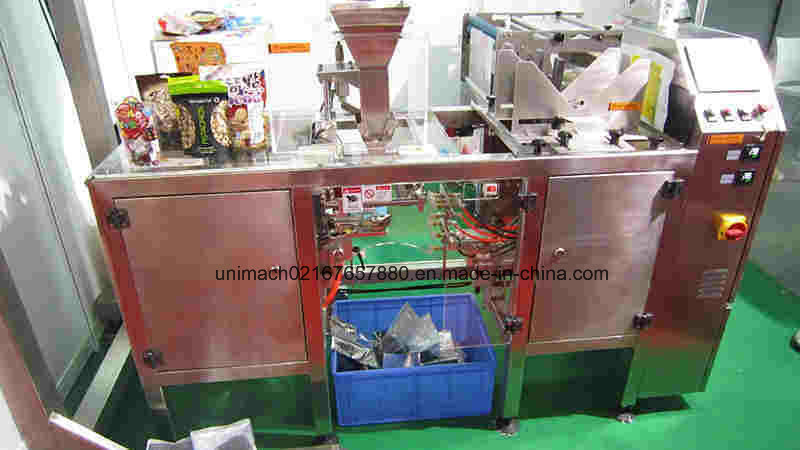

Automatic Doypack Packing Machine |
| Model: |
Gd6 |
| Working Position: |
Six |
| Bag Size: |
W:100-210mm L:350mm |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Material Type: |
Liquid |
| Packaging Material: |
Film |
| Application: |
Liquid,Powder,Granule |
| Packaging Type: |
Doypack,Pouch |
Product Description
Equippted with different weighter, it can supply in:
1. Solid species: Candy, biscuit, peanut, green bean, pistachio, crystal candy, white sugar, brown sugar, cookie, cake, daily commodity, cooked food, pickles etc
2. Granule species: Relish, sodim glutamate, granular drug, seed, chmistry condiment, melon seeds, nut, pesticide, fertilizer etc.
3. Liquid species: Detergent, yellow wine, soy sauce, vinegar etc
4. Thick liquid species: Tomato ketchup, peanut butter, jam tec
5. Scattered substance species: Grain, spaghetti, beans, bean products, puffed food, stationery, commodity, grocery etc
6. Materials that pack in bag.
Characteristic:
1. The manipulator clips the bag--coding--filling(viabrate bag)--heat sealing--output
2. Totally automatical controlled by computer, adopting imported PLC and actuator, operate reliably and safely, maintain easily, without pollution
3. The main mahine that adoptsfrequency converter to regulate the speed
4. As the having printed&heat sealed package bag that the bag have a complete pattern, a good quality sealing and very low bag broken rate
5. The shaping step is especially designed to keep the sealing from breaking, so the sealing is flat and smooth.
6. The machine adopts advanced plastic spraying technology, while the parts that contact the materials adopts stainless steel, so it has a good standard hygiene, anti-corrosive and long useful life.
7. According to the packing materials'demands, can choose automatic metering machanism, automatic auger filling machine, intelligent function scale and other products suitable for automatically metering, which combined into an automatic assembly line. Also can pack through hand giving material.
8. Safety device: No bag-no filling-no heat sealing, alarming as soon as heater is stopped. The machine corrects by itself, when in the abnormal air pressure
9. The machine moving parts adopt imported plastic bearing, no need to put on oil, no maintenance, less pollution.
| model | GD6-200A | GD6-300A |
| working position | six working position |
| packaging material | portable bag,hand luggage,zipper bag,3&4 side sealing machine,paper bag |
| bag size | W:100-210mm L:350mm | W:200-300mm L:500mm |
| speed | ≤30 bags/min(the speed sepends on the product status and filling dosage | ≤30 bags/min(the speed sepends on the product status and filling dosage |
| filling scope | 5-1500kg | 100-5000kg |
| weight | 1000kg | 1200kg |
| total power | 1.5kw(380V 50HZ) | 2kw(380V 50HZ) |
| dimension | 1800*1600*1500mm | 2500*1800*1800mm |
