Automatic High Quality Multitrack Packing Machine

Automatic High Quality Multitrack Packing Machine
Price: US $ 16000-35000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal

Product Specifications


Prod Model: IP-ML500/4LG
Certificate: Ce
Filling Range: 0.5-50ml
Packing Speed: 30-50bpm/Line
Packaging Film: BOPP,OPP,Tyvk,Paper,Aluminium Foil
Bag Width: 12-50
Function: Packaging Machinery
Bag Length: 25-240mm
Air Comsumption: 0.6MPa
Packaging Machine: Vertical Packaging Machine,Complete Packing System
Automatic Grade: Automatic
Application: Oil
Driven Type: Mechanical
Material Type: Solid
Packaging Type: Barrel
Packaging Material: Film

Product Description

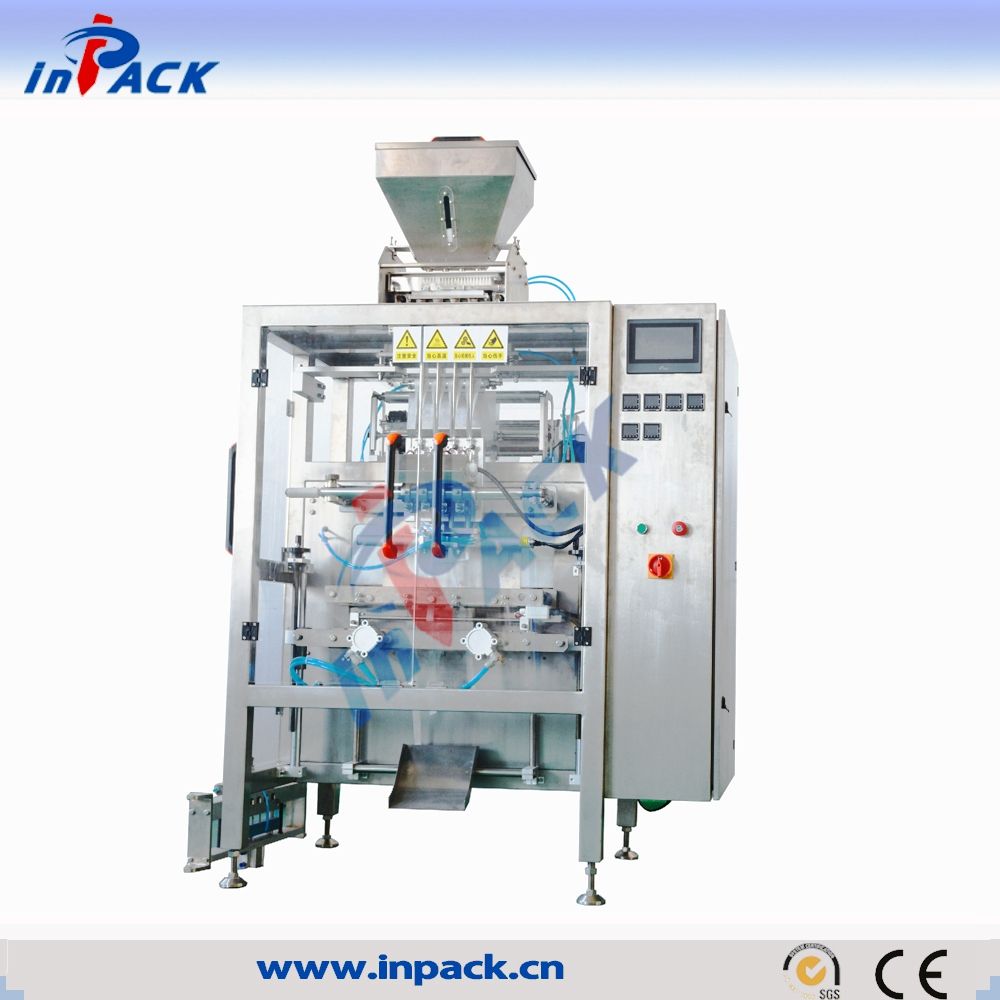

Product show

Packaging & Rewinding packing system for the silica gel

R&D Manufacturer for kinds of packaging machine




Application  >>>>>

Multilane packaging machine focuse on high production requirement. It is application for small size granule,liquid, powder. Like silica gel, seasoning,health powder,sugar,coffee...etc.

 Main features  >>>>>

• High production performance .

• High filling accuracy controlled from HMI.

• Main motion servo motorized.

• Easy access for sealing system cleaning.

• Low maintenance.

• Gas flushing.

• Independent temperature calibration of each sealing jaw from touch screen

• Stickpack length automatically adjustable.

• Empty stick detector.

• Transfer systems to secondary packaging equipment.

• HMI for multiple recipes.

• Programmable string option

• Automatic reel alignment.

• Expansible reel shaft.

• Laser/Thermoprinter/Inkjet/Thermotransfer.

• Vacuum/auger/elevator feeding systems.

• Non-stop automatic reel splicer.

• Anti-static bar.




Production feature

Model

ML320ML500ML750

Lanes

24682468104681012

Max. Width (mm)

75352217100503022176050403525

Min. Width (mm)

 1717

Max. Length (mm)

200200160-200max

Min. Length (mm)

  60

Max. Reel diametre(mm)

750750750

Max. Reel width (mm)

350450750

Output (Sachet/minute)

6016018024060160180240300160180240300360

Dimensions (m)

1.200 x 1.600 x 2.600

1.450 x 1.700 x 2.600

1.800 x 1.700 x 2.600

Weight (Kg)

500600800

Noise (dB)

≥70

Electrical Data

220, 400, 440, Vac/ 3Ph+N+PE/50,60Hz

Air comsumption

6/7 bar - 1,000 Litres/min.

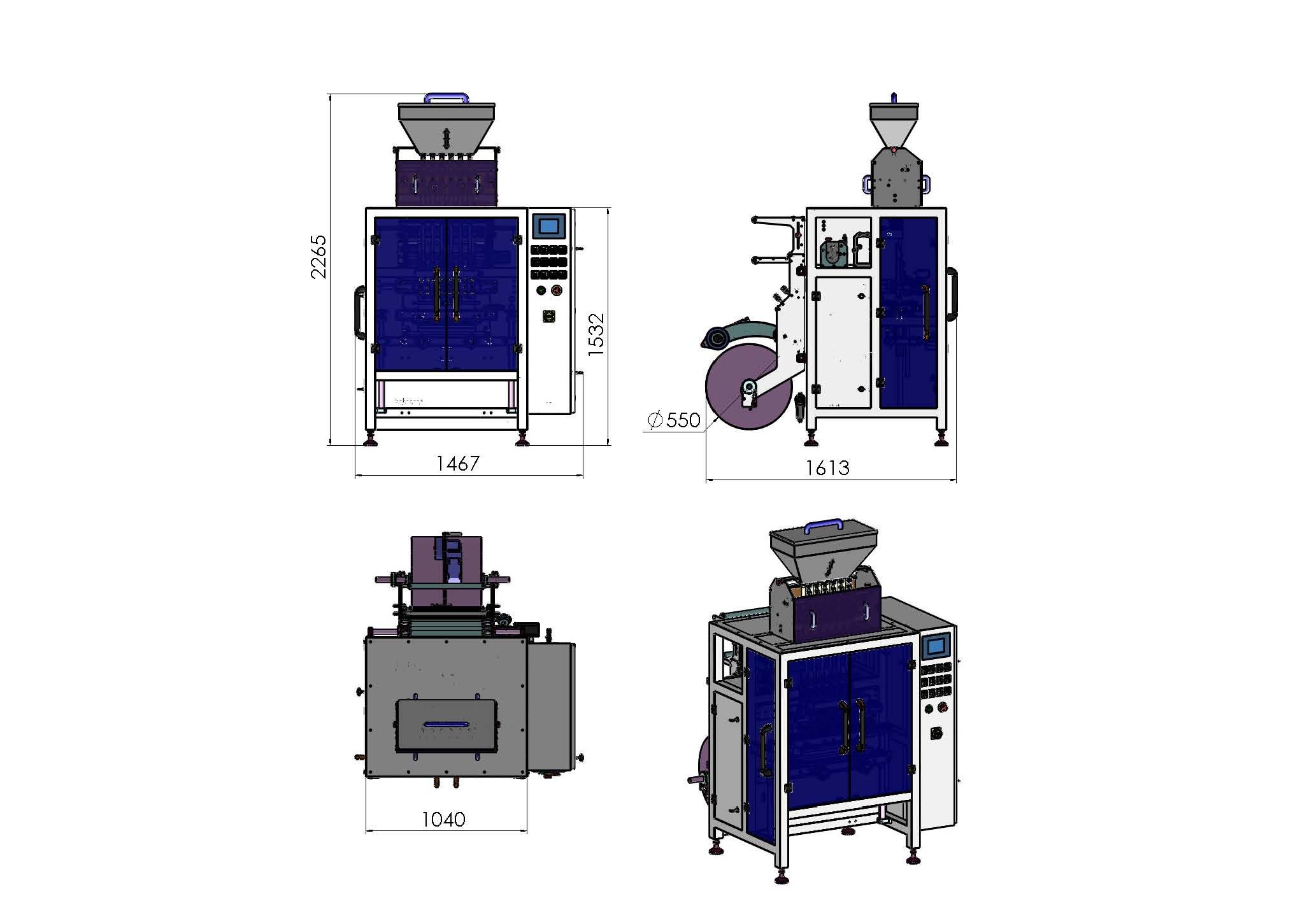

Layout drawing

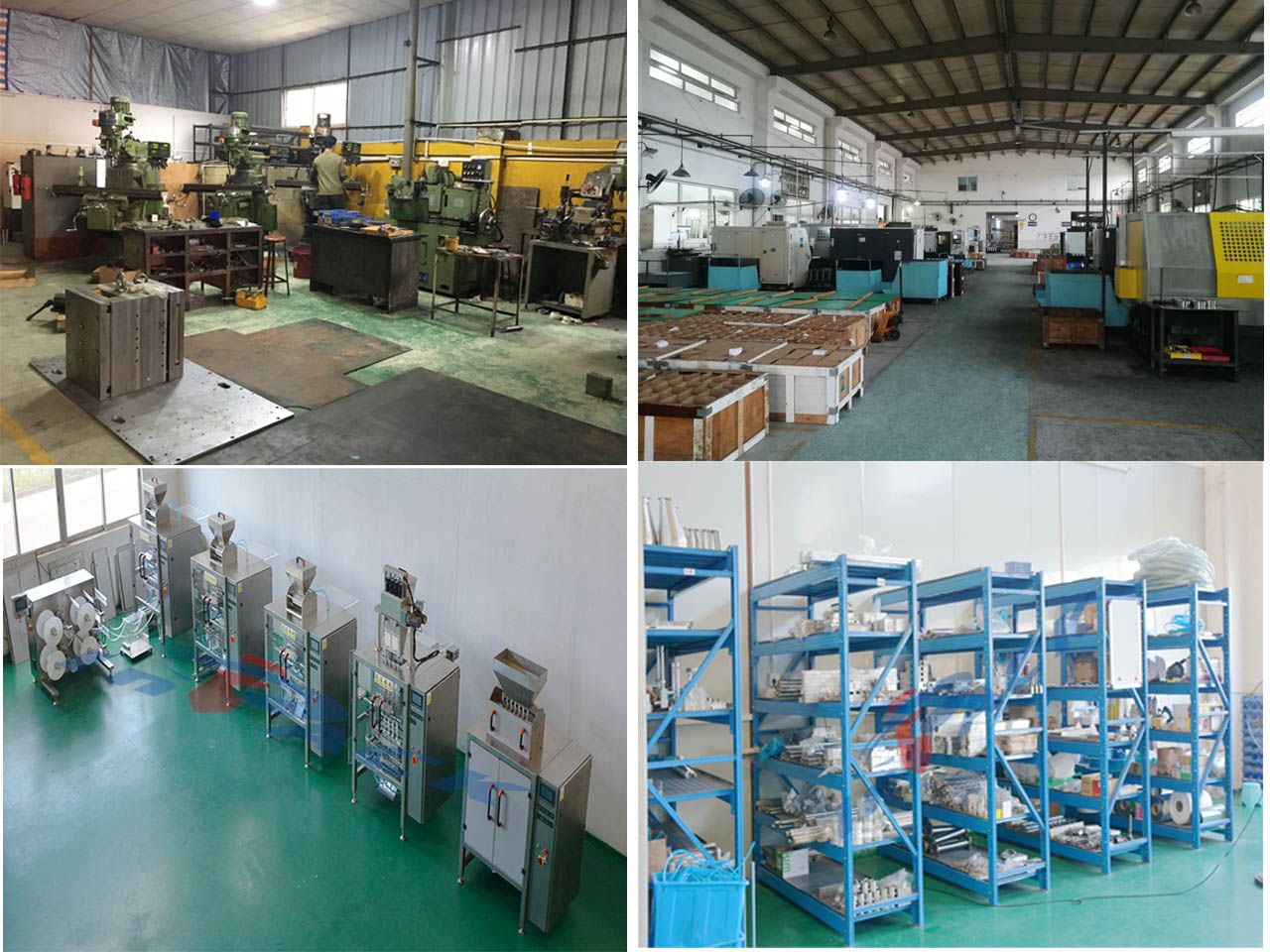

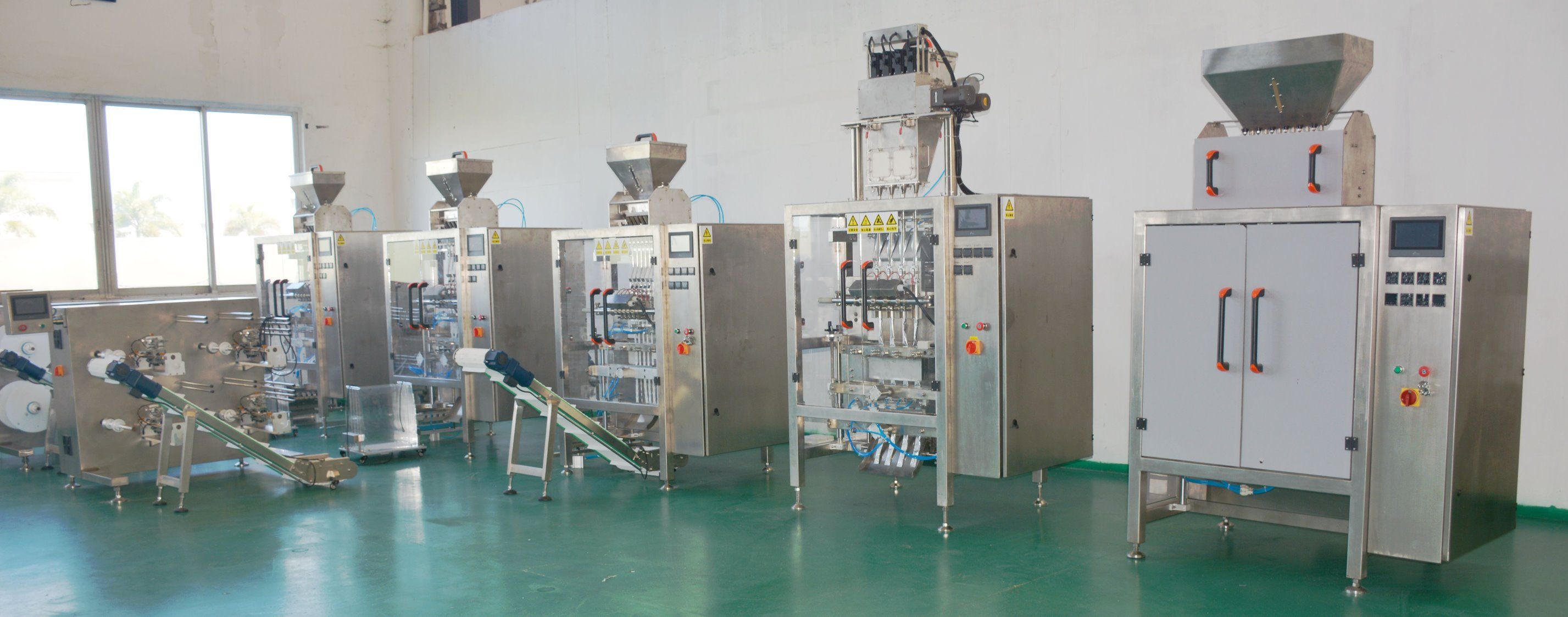

Produce Workshop

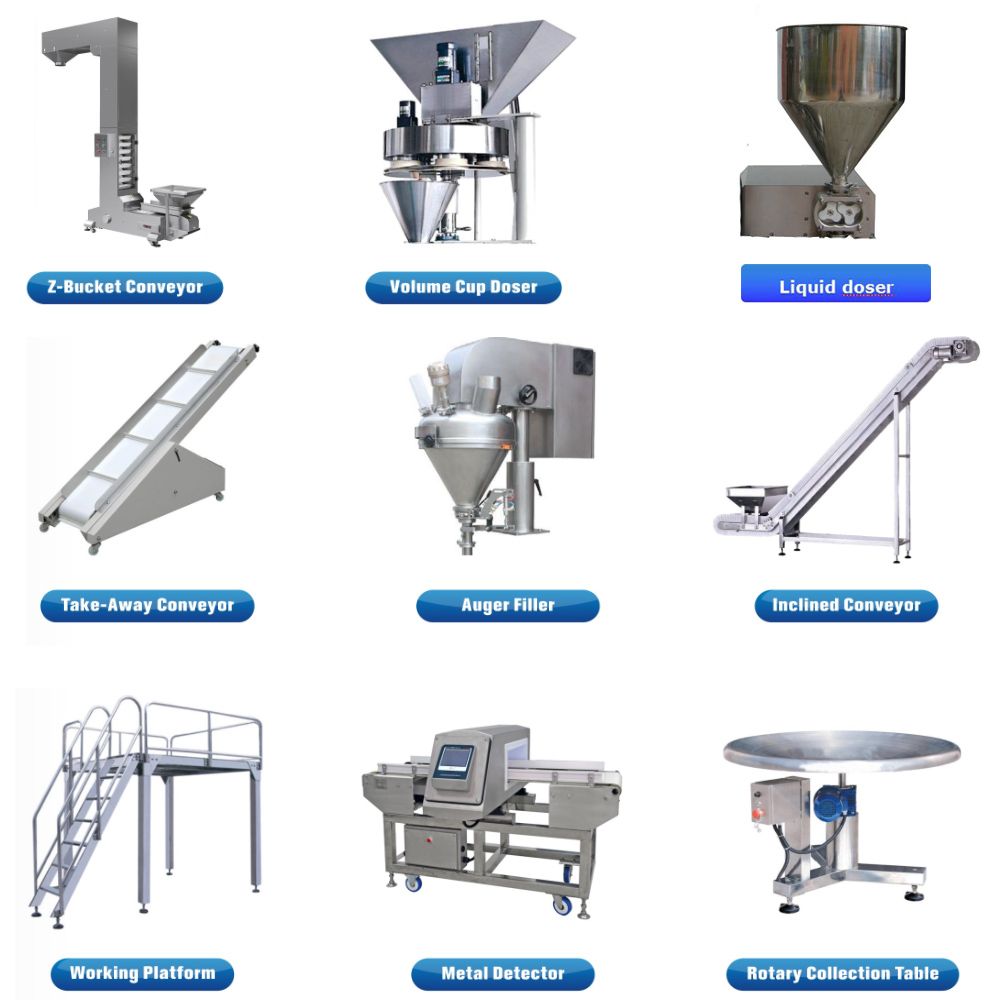

Accessory machine




Our Services

Thanks for visiting Inpack homepage, which is updated and improved step by step, welcome any suggestion and feedback to us at any time.

Most of our machines are made to order, please contact and check with our salesmen online or by email/phone about the packaging material, weight range, bag type and size, etc.

Welcome to send us sample material, packing film or pouches for our testing and we feedback with you the testing report and suitable packaging solution.

Pre-sale Service

we will confirm customers' requirement clearly before giving suggestions to customers to make sure the suggestion we give you is match your requirement. Then will give you good quotation.

In-sale Service

After placing order to our produce department, we will follow well your orders and inform you the production status. We will supply you photos.

After-sale Service

1. We have several professional trained serviceman, and we carry out an open aboard service standard, as you can see them on our website (www.inpack.cn), even including what should we do for our serviceman.

2. We can provide training your technicians, their accommodations will be free.

3. We will make the training CD and self-diagnosed VCR and send them to you to help your customers.

4. If there is any problems and wrongs on your machine, we will give you a quick reaction and solution once we receive the information from you. We will try our best at the earliest time.

5. Local service agent is available, in order to better support our local end-users, we can arrange our local agent to make installation, commission and training. Of course, if needed, we can arrange our servicemen to service you according to our company oversea service standard.

6. We guarantee the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month. e.g. If the machine leaves our factory on June.1st, 2016, the warranty will end on July 1st, 2017.

7. Within warranty, both mechanical and electronic parts could be replaced free of charge. All damages caused by improper use are excluded. Customers are required to send back the damaged parts no later than one month.

8. Out of warranty period, free spare parts will no longer provided.

9. Offer you 24-hour technical support.





















Inpack(Zhongshan)Automatic Equipment Co., Ltd is a manufacture enterprise founded from Thailand Brand INPACK, with a team of same interest and more than 10 years industry experience. Due to the advanced professional automatic package solution technology, the company is not only capable of manufacturing, selling, R&D automatic packing machinery, conveying machinery, filling machinery, welding equipment and other project, but also provides suggestions and related equipment for customers.

INPACK mainly produce 3/4 seal sachet packaging machine, multilane packing machine, rotary/linear packaging machine, multiheads weigher which are widely used in all kinds of powder, granular, liquid and application for food, medical, biotechnology, Daily Chemicals, pesticide, health care areas. We have been promotion it in Thailand and other countries, USA, UK, Australia, Canada, New Zealand, Brazil, Chile, Turkey, Germany, the United Arab Emirates, etc.

Quality is fundamental, service comes after. INPACK focuse on R&D high quality packaging machine. Easy to operating, less maintenance, good service are the business philosophy o INPACK.
