Automatic Candy Continuous Vacuum Cooker Machine
| Price: |
US $ 20000-30000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
VBC400 |
| Capacity: |
400~600kg/H |
| Heating Area: |
2.45m/2 |
| Steam Requirement: |
0.5~0.7MPa 100kg/H |
| Temp.Before Syrup Cooking: |
110~115ºC |
| Temp.After Syrup Cooking: |
145~150ºC |
| Dimension: |
L1800xw1450xh2350mm |
| Machine Weight: |
1500~2000kg |
| Application: |
Candy |
| Customized: |
Customized |
Product Description

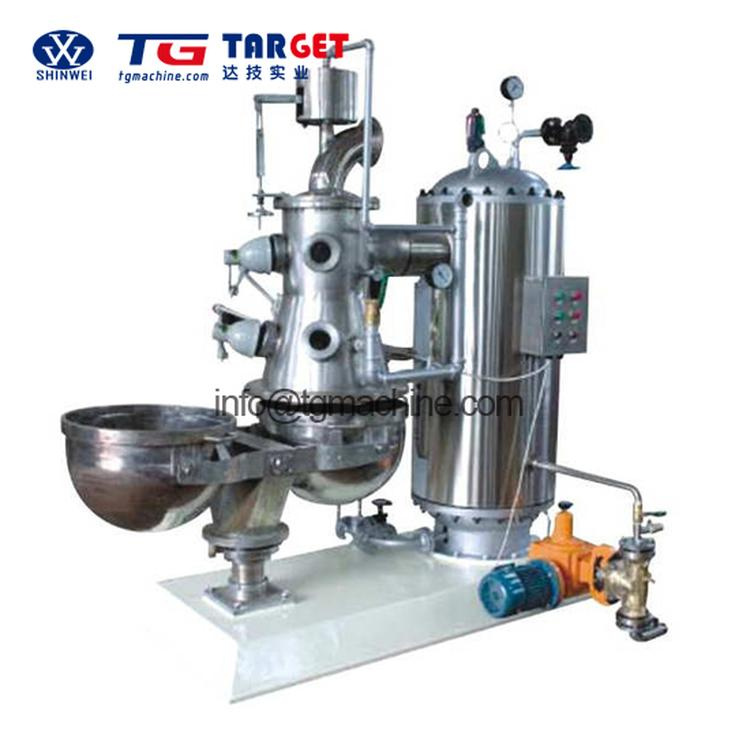

Continuous Vacuum Cooker
This machine is able to cook syrup continuously with automatic temperature control. The micro film cooker's feature is large capacity, fast processing, accurate control of cooking temperature and high vacuum. Rapid cooking and vacuum to produce high quality and quite transparent syrup, which is suitable for cooking hard boiled candy, fruit hard candy, crystal candy and hard toffee. It is capable of working with depositing line or forming production line.
This cooker is comprised of an insulated steel steam pressure vessel, one variable speed product dosing pump, a syrup heating coil, s steam extraction chamber and two receiving vessels,all of which are mounted on a common base plate.The special designed continuously vacuum cooker can guarantee the quality of the condensed syrup with stably running,sanitary and humanization designing, and easy to operate and maintainParameters:| capacity | 400~600kg/hr |
| Heating area | 2.45m2 |
| Steam requirement | 0.5-0.7Mpa ,about100kg/hr |
| Temperature of the syrup before cooking | 110-115°C |
| Temperatureof the syrup after cooking | 145-150°C |
| Dimension | 1800×1450×2350(mm) |
| weight | 1500~2000kg |
Profile
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.
As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.
For further information, please visit: www.tgmachine.com
Strength
Why choose us?
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
Services
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
Contact us
Summer Sun/ Project Manager
M/P: 0086-13918423385
Wtchat:13918423385
SHANGHAI TARGET INDUSTRY CO.,LTD.
SHANGHAI SHINWEI MACHINERY MANUFACTURING CO.,LTD
Add: No.7151, Puwei Road, Huqiao Town, Fengxian Dist, Shanghai, China 201417
Tel: 0086-21-67186935 Fax: 0086-21-67183392
Http://www.shinweigroup.com www.tgmachine.com
Shipment
Certification
SHINWEI MACHINERY was from a company named Shanghai fengxian guyue food machine factory since year 1982which is a state owned enterprise for confectionery, chocolate, biscuit and packaging machinery. The founder of SHINWEI machinery is Mr. Wangzhiwei who is the director of guyue food machine factory till year 1995, after that year, the collective was restructured to Ltd and SHINWEI MACHIERY was established.
Nowadays, SHIWNEI always stand in the leader position in food machinery innovation and developing, the factory area is more than 6000square meters, five modern workshop, over 100 employees and has CNC machine, computer controlled lathe ect, in year 2005, SHINWEI PASSED ISO9001 authentication and most of the products passed European CE authentication. SHINWEI exported its products to east European, south America, Middle East, southeast Asia ect. District since year 2000, good quality products and perfect service makes SHINWEI have very good reputation and popularity.
SHINWEI MACHINERY provides not only the good quality production line for different kinds of confectionary production, but also the whole solution from making research, factory design, machinery installation and production, packing design ect. We are happy to cooperate with the new investor in food industry or experienced manufacturers. For more solution or information, please contact us or visit our website: http://www.sh-xinwei.net
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hi-tech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment. SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hitech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment.
SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect.
