Product Specifications
| Prod Model: |
M25 ATC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Power: |
6kw/9kw |
| Working Area: |
1300*2500mm |
| Controller: |
Syntec Controller |
| Machine Body: |
T-Slot |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

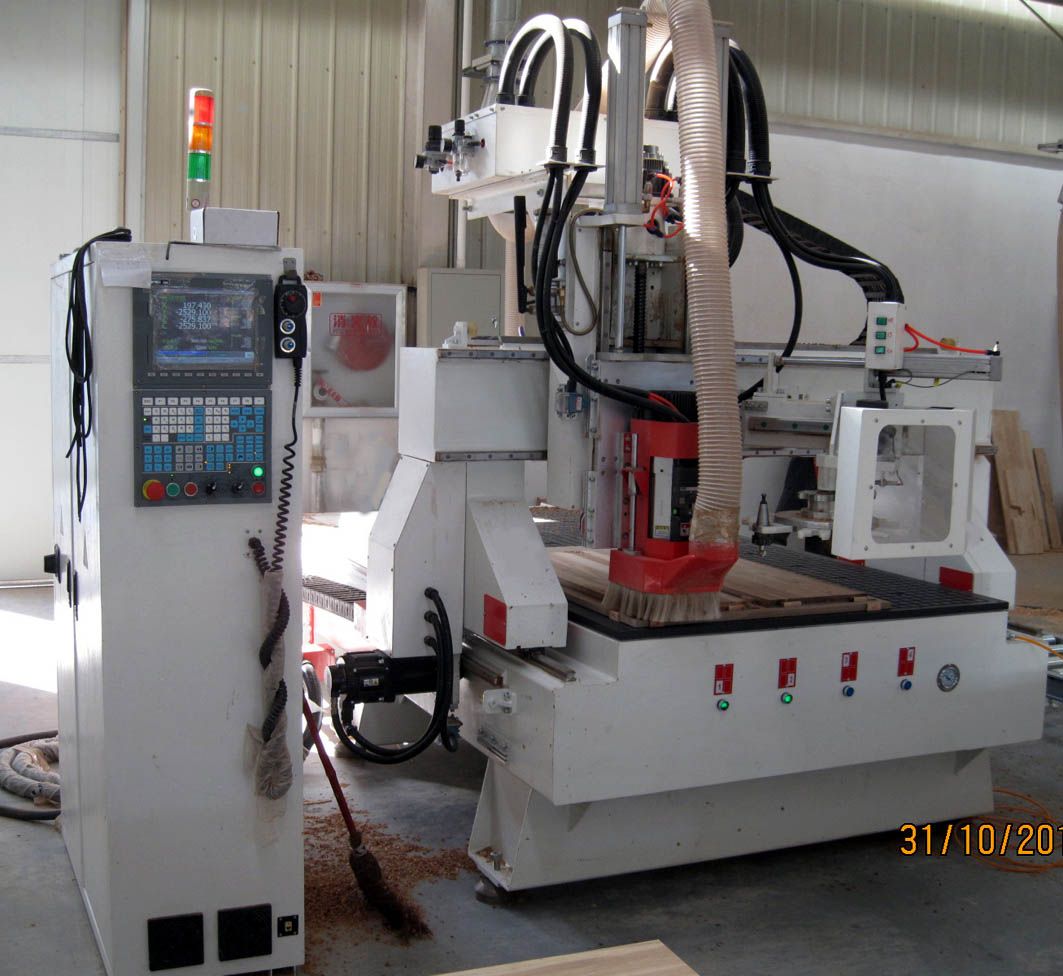

Woodworking CNC router engraver with Carrousel Type ATC
Features:
Adopting CATC-T8 carrousel Tool technology, will take the shortest path between any two tools, allowing the quickest change times possible. The tool-changer eliminates the need for the operator to stop the machine to change tools manually, allowing the program to continue uninterrupted.
1) Support 8 tools ATC system, tool magazine is with carrousel/umbrella form
2)Automatically senses the wrong tool in the tool magazine, to avoid no operation and tool collision.
3)Intelligent sensor system, automatically sense whether the tool in the spindle, can avoid the collision and faulty operation.
4) Automatically senses whether the pressure could meet the requirements, and is with the function of lower pressure alarming.
5) The systemautomatically remember the location of the tool and tool length. It only need to re-measure the tool length for every time tool changing.
Specifications:
| X,Y,Z working area | 1300*2500*200mm |
| Table size | 1550×2950mm |
| Spindle | 9kw HSD spindle |
| Motor | Servo motor |
| Vacuum System | vacuum table |
| X, Y, Z Travelling Potioning Accuracy | ±0.05/300mm |
| X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| Frame | Steel Square Tubes 25mm |
| X, Y structure | rack and pinion drive, hiwin rail linear bearing |
| Driving motor | Yako brand |
| Max Rapid Travel Rate | 50,000mm/min |
| Max working speed | 25,000mm/min |
| Working voltage | AC380V/50Hz |
| Command languages | G code |
| Control system | Syntec |
| Software | type3 original English($300) | artcam English version |
| Switch | domestic |
| Flash Memory | 2G (U Disk) |
Application:
1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shapeliterally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.
Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.
Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
We are searching the distributors around the world. Hope we can cooperate for the world market.
