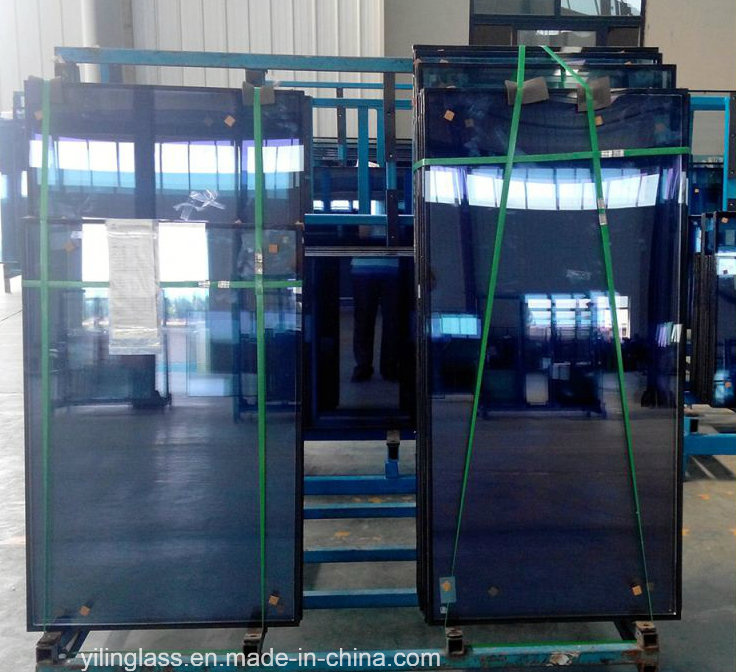

Arctic Blue Double Glazed Glass
| Price: |
US $ 10/Square Meter |
| Min Order: |
100/Square Meter |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Shape: |
Flat |
| Structure: |
Hollow |
| Usage: |
Building |
| Type: |
Insulated |
| Color: |
Blue |
Product Description

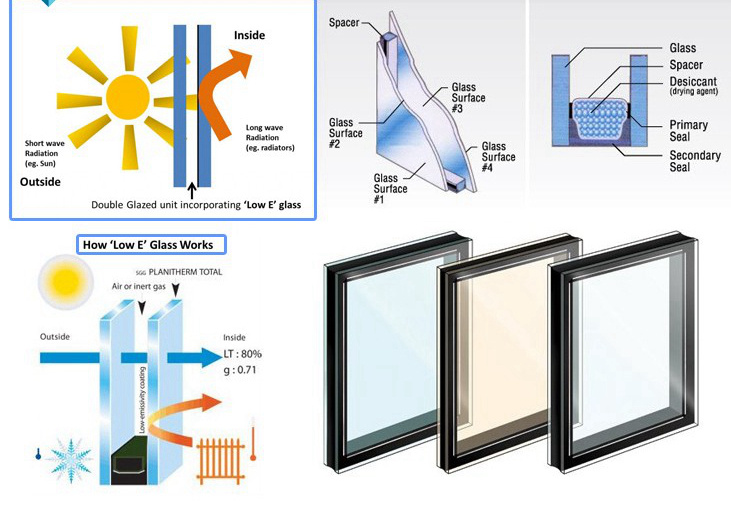

Low E Glass & Arctic Blue Double Glazed Glass* is manufactured by fusing arctic blue glass and other type glass together ,spaced by dry air or argon gas.Arctic Blue is a high performance body-tinted float glass in a unique blue color, that offers solar control performance without the use of surface coating. Its solar control properties and color density vary with each thickness so that glass with properties appropriate to a particular application can be chosen.
It is ideally suited to both hot and cold climates. It can be specified as toughened or laminated glass, and is therefore ideal for any applications whether commercial or domestic, where unique aesthetics or innovative design is desired.
To provide additional thermal insulation, it has to be combined with a low-emissivity glass in an insulating glass unit.
* the unit can consist of
1) Low E glass(single silver or double silver)2) Color Tinted glass
3) Low Iron Glass
4) Patterned Glass
5) Normal Float Glass
6) Processed Glass : tempered glass, laminated glass,frosted glass,color printed glass * single glass thickness from 3mm to 12mm,
air spacer frame , 6mm.9mm,12mm,15mm,16mm,19mm,20mm,21mm,25mm
* spacer
aluminum or warm edge spacer
* argon gas filled in
Fuction & Property
1.Thermal insulation low heat gain and heat loss value (low U value)
2. Light transmission.
Appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulation
reduce noise level by 30 dB. with inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing prevention
Our insulated glass are designed to withstand down to -65degrees without condensing, which is far exceeding the National Requirement of -40degrees.
5. Leak proof
To ensure IGU air tight, automatic bending machine is used for
all four corners bending, with use of linear connector for the spacer.
A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide
as secondary seal. We use advanced fully automatic IG production line ,
with automatic production operations covering spacer bending,
filling of desiccant, edge deletion of coated glass, glass assembly,
filling with inert gas and application of primary and secondary sealants
Specifications glass thickness, spacer thickness and sizes are customized
min. Size 150X150mm
max. Size 3000mm X 6000mm
Our high quality advantage
1. we use top quality raw materials to manufacture insulating to ensure the safe and quality
* glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass
* top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decration spacer are available
* top branded silicone sealant, polysulfide sealant, butyl sealant are available
* top branded molecular or dry agent availble2. we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.3.most important all these insulating proceses are automatically finished by advanced machines and robot ams,then the qualty and surface quality is ensured,fom spacer ffaming,molecular filling,unit sealing to packing
4.we strictly follow up quality control in every producing procedure and do every- piece inspection before the packing , to guarantee the high quality of 100% of ordered quantity

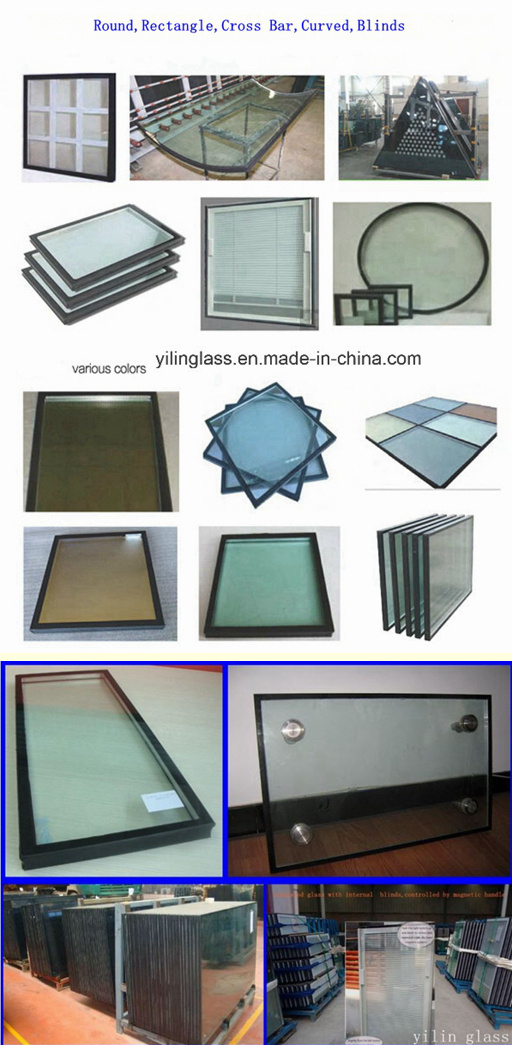

Various Types Available

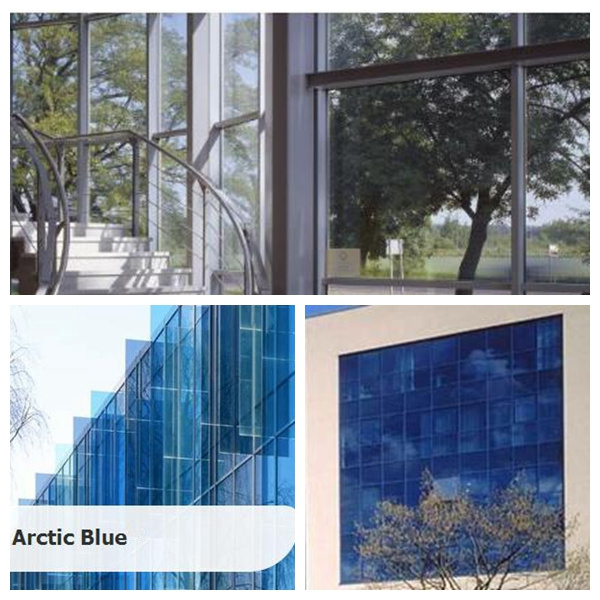

Project Cases & Application

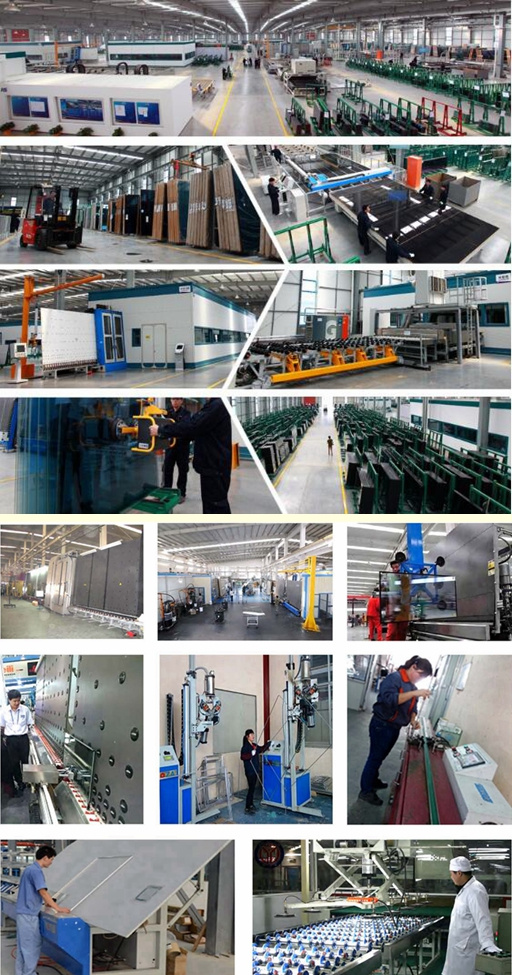

Overview of Factory & Workshop
Yilin Glass Manufacturing Co., Ltd, one of Chinese leading glass processing manufacturers, established in 2001, located in Suzhou city, near Shanghai sea port, with 62 employees, including 8 engineers, specialized in manufacturing tempered glass (toughened glass), insulated glass, laminated glass. They are widely used for window, door, partition, building inside and out side decoration, as well as for furniture and appliance. Annual producing capability of 750, 000sq. Meters
Equipped with the most advanced machines, production and administration approved by ISO 9001: 2000, our products have been certificated by AS/NZ, CE, ANSI, CCC(3C).
In China, our glass is accepted and enjoys a good reputation in Shanghai building market. In overseas building market, it is exported and used in Canada, USA, Germany, Russia, Australia, Indonesia, South Africa and Brazil.
No matter where you are! We are looking forward to working with you in the near future.
Our Business Advantage
1) stable and mature deep-processing technology
2)skilled workers and engineers team & advanced business management mode
3)specialized production & competitive cost
We manufacture the following high quality glass products
1)Tempered Glass Products: Pool fence glass, shower screen glass, balustrade glass, balcony glass, partition glass, shop front glass, wall curtain glass, shelf glass, door table glass etc.
2)Insulated Glass Products: Double glazing, low-E insulated glass, reflective insulated glass, tinted insulated glass, double glazing venetian blinds, used for window door and building curtain wall.
3)Laminated Glass Products: Large size laminated, color PVB film laminated
Glass, balustrade glass, ceiling glass, curtain wall glass
